NSN 5955-00-953-1962 SA510, SA5-10, 2098529G1
Product Details | ELECTRICAL-ELECTRONIC COMPONENTS OVEN
5955-00-953-1962 An electrically heated compartment designed to accommodate and maintain at an essentially constant temperature, one or more components, such as, CRYSTAL UNIT(S), QUARTZ; tuned circuits; integrated circuit devices; and semiconductors. It prevents frequency drift and changes in teperature.20259550038Oscillators and Piezoelectric Crystals59990050Miscellaneous Electrical and Electronic Components
Part Alternates: SA510, SA5-10, 2098529G1, 5955-00-953-1962, 00-953-1962, 5955009531962, 009531962
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-953-1962 | 41012 ( OVEN, ELECTRICAL-ELECTRONIC COMPONENTS ) |

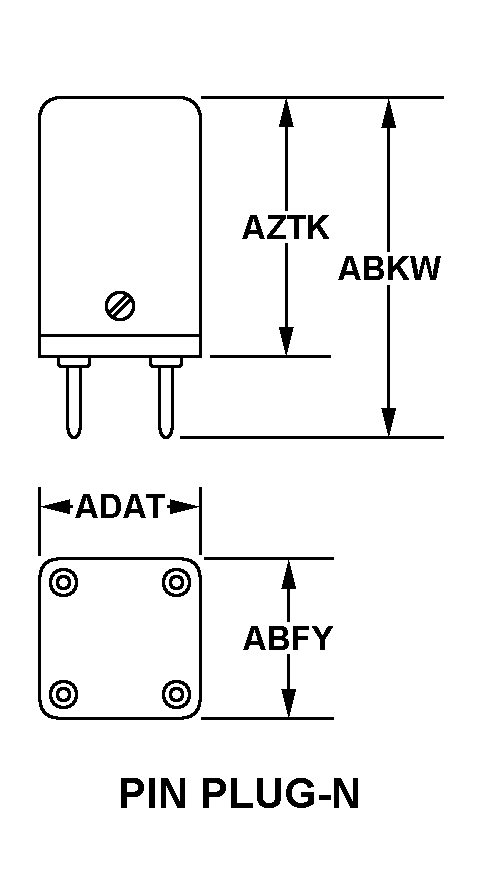

Drawings & Photos | NSN 5955-00-953-1962
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5955-00-953-1962
Technical Data | NSN 5955-00-953-1962
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 12A PIN PLUG-IN |
| OVERALL DEPTH | 2.250 INCHES NOMINAL |
| OVERALL HEIGHT | 3.188 INCHES NOMINAL |
| BODY WIDTH | 2.500 INCHES NOMINAL |
| BODY OVERALL HEIGHT | 2.750 INCHES NOMINAL |
| COMPONENT TYPE AND QUANTITY ACCOMMODATED | 5 CRYSTAL |
| CRYSTAL HOLDER DESIGNATOR | HC-6/U |
| INCLOSURE TYPE | INCLOSED |
| MAINTAINED OVEN CAVITY TEMP RATING | 75.0 DEG CELSIUS |
| MAINTAINED TEMP TOLERANCE RATING | -2.0 TO 2.0 DEG CELSIUS |
| HEATER ELEMENT OPERATING VOLTAGE RATING IN VOLTS AND TYPE | 120.0 AC NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.000 INCHES NOMINAL AND 2.250 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 14 PIN |
| MANUFACTURERS CODE | 28527 |
| DESIGN CONTROL REFERENCE | 2098529G1 |
Restrictions/Controls & Freight Information | NSN 5955-00-953-1962
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | C | Munitions List Item or Commerce Control List Item. Demilitarization required. Remove and/or demilitarize installed key point(s) as prescribed in the Defense Demilitarization Manual, or lethal parts, components and accessories. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
