NSN 5955-01-149-7024 CR18/U4M104000, CR18U4M104000, MIL-C-3098/3
Product Details | QUARTZ CRYSTAL UNIT
5955-01-149-7024 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: CR18/U4M104000, CR18U4M104000, MIL-C-3098/3, MILC30983, 5955-01-149-7024, 01-149-7024, 5955011497024, 011497024
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 MAR 1983 | 01-149-7024 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-01-149-7024
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-01-149-7024
Related Products | NSN 5955-01-149-7024
Technical Data | NSN 5955-01-149-7024
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| CIRCUIT RESONANCE | ANTIRESONANCE |
| LOAD CAPACITANCE IN PICOFARADS | 31.5 MINIMUM AND 32.5 MAXIMUM |
| SHUNT CAPACITANCE IN PICOFARADS | 7.0 MAXIMUM |
| SPECIFIED FREQUENCY | 4.104 MEGAHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.005 TO 0.005 |
| OPERATING TEMP RANGE | -55.0 TO 105.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | 60.0 MAXIMUM |
| DRIVE LEVEL RATING | 8.0 MILLIWATTS MINIMUM AND 12.0 MILLIWATTS MAXIMUM |

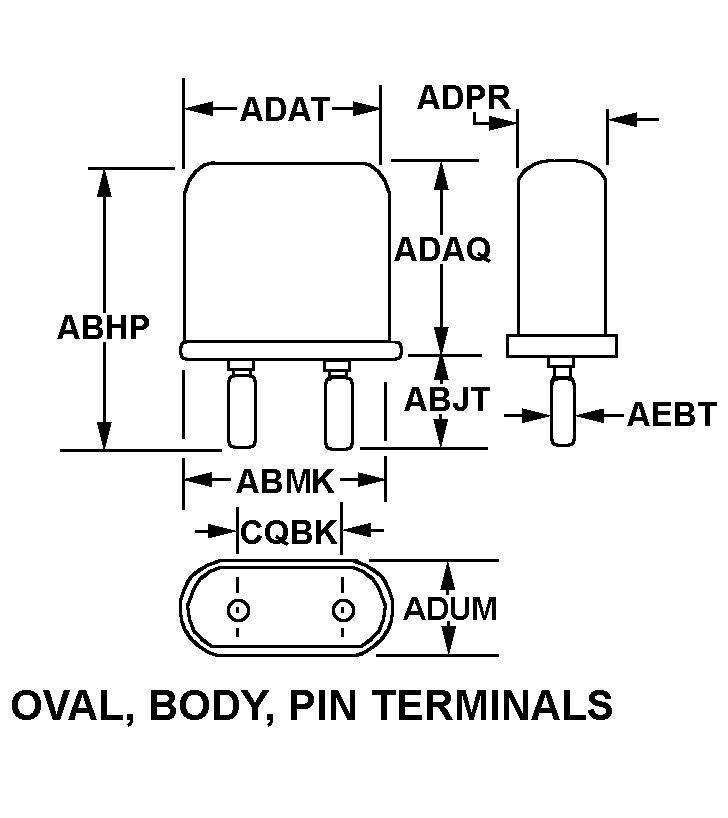

| STYLE DESIGNATOR | 1 OVAL BODY, PIN TERMINALS |
| OVERALL LENGTH | 0.998 INCHES MINIMUM AND 1.023 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.223 INCHES MINIMUM AND 0.248 INCHES MAXIMUM |
| OVERALL WIDTH | 0.757 INCHES MAXIMUM |
| BODY LENGTH | 0.775 INCHES MAXIMUM |
| BODY WIDTH | 0.725 INCHES MAXIMUM |
| BODY THICKNESS | 0.317 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.352 INCHES MAXIMUM |
| TERMINAL DIAMETER | 0.048 INCHES MINIMUM AND 0.052 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.478 INCHES MINIMUM AND 0.494 INCHES MAXIMUM |
| HOLDER COVER MATERIAL | METAL |
| TEST DATA DOCUMENT | 81349-MIL-C-3098 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-3098/3 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | CR18/U4M104000 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-3098/3 |
