NSN 5955-01-208-4787 69113102, 6911-3102, 01-208-4787
Product Details | QUARTZ CRYSTAL UNIT
5955-01-208-4787 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: 69113102, 6911-3102, 5955-01-208-4787, 01-208-4787, 5955012084787, 012084787
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 MAY 1985 | 01-208-4787 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-01-208-4787
Demand History | NSN 5955-01-208-4787
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5955-01-208-4787 | 2022-01-19 | 3 | Taiwan |
| 5955-01-208-4787 | 2009-05-128 | 3 | DIBBS |
| 5955-01-208-4787 | 2006-11-305 | 10 | Turkey |
Cross Reference | NSN 5955-01-208-4787
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6911-3102 | 00136 | VECTRON INTERNATIONAL, INC. |
| 6911-3102 | 03040 | POWER CONTROL DEVICES, INC. DBA AMERICAN TIME PRODUCTS |
| 6911-3102 | 14304 | HARRIS CORPORATION DBA HARRIS RF COMMUNICATION |
| 6911-3102 | 59559 | POWER CONTROL DEVICES INC |
| 6911-3102 | 71034 | BLILEY TECHNOLOGIES INCORPORATED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-01-208-4787
Related Products | NSN 5955-01-208-4787
Technical Data | NSN 5955-01-208-4787
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| CIRCUIT RESONANCE | SERIES RESONANCE |
| SHUNT CAPACITANCE IN PICOFARADS | 30.0 NOMINAL |
| SPECIFIED FREQUENCY | 2.4576 MEGAHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.002 TO 0.002 AND -0.005 TO 0.005 |
| OPERATING TEMP RANGE | -30.0 TO 75.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | 20.0 MAXIMUM |
| DRIVE LEVEL RATING | 2.0 MILLIWATTS NOMINAL AND 1.6 MILLIWATTS MINIMUM AND 2.4 MILLIWATTS MAXIMUM |

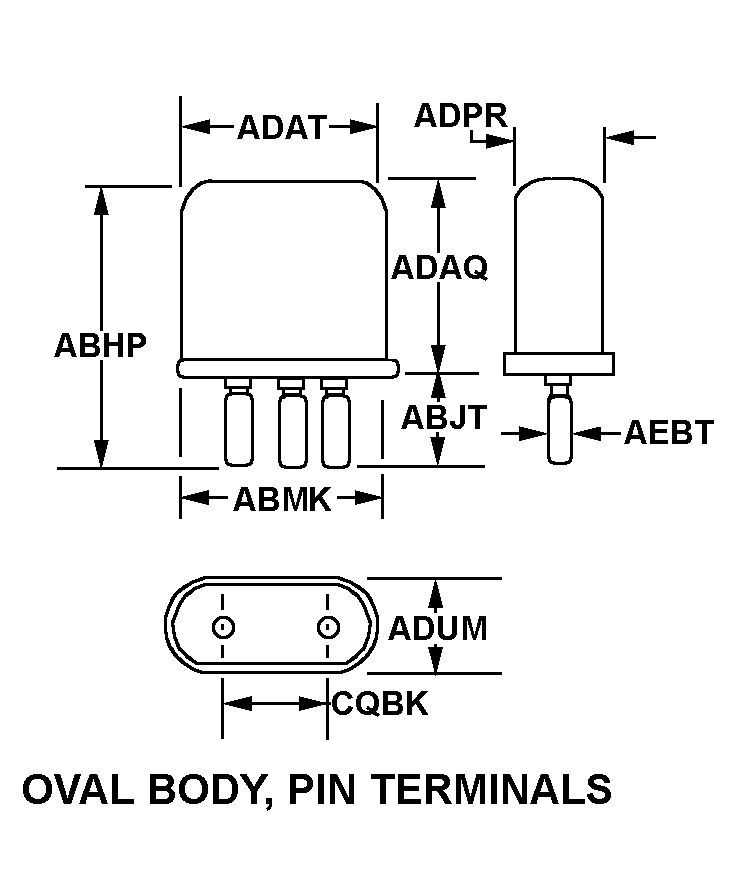

| STYLE DESIGNATOR | 33 OVAL BODY, PIN TERMINALS |
| OVERALL LENGTH | 0.775 INCHES NOMINAL |
| TERMINAL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| BODY WIDTH | 0.720 INCHES NOMINAL |
| BODY THICKNESS | 0.315 INCHES NOMINAL |
| OVERALL THICKNESS | 0.350 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.030 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.486 INCHES NOMINAL |
| HOLDER COVER MATERIAL | METAL OR GLASS |
