NSN 5955-01-229-7274 L4014000000MHZ, 16065901, 160659-01
Product Details | QUARTZ CRYSTAL UNIT
5955-01-229-7274 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: L4014000000MHZ, 16065901, 160659-01, 5955-01-229-7274, 01-229-7274, 5955012297274, 012297274
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 APR 1986 | 01-229-7274 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-01-229-7274
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-01-229-7274
Related Products | NSN 5955-01-229-7274
Technical Data | NSN 5955-01-229-7274
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| CIRCUIT RESONANCE | ANTIRESONANCE |
| LOAD CAPACITANCE IN PICOFARADS | 29.5 MINIMUM AND 30.5 MAXIMUM |
| SHUNT CAPACITANCE IN PICOFARADS | 3.7 MINIMUM AND 7.0 MAXIMUM |
| SPECIFIED FREQUENCY | 14.000 MEGAHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.005 TO 0.005 AND -0.0010 TO 0.0010 |
| OPERATING TEMP RANGE | -55.0 TO 105.0 DEG CELSIUS AND -55.0 TO 125.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | 25.0 MAXIMUM |
| DRIVE LEVEL RATING | 4.0 MILLIWATTS MINIMUM AND 6.0 MILLIWATTS MAXIMUM |

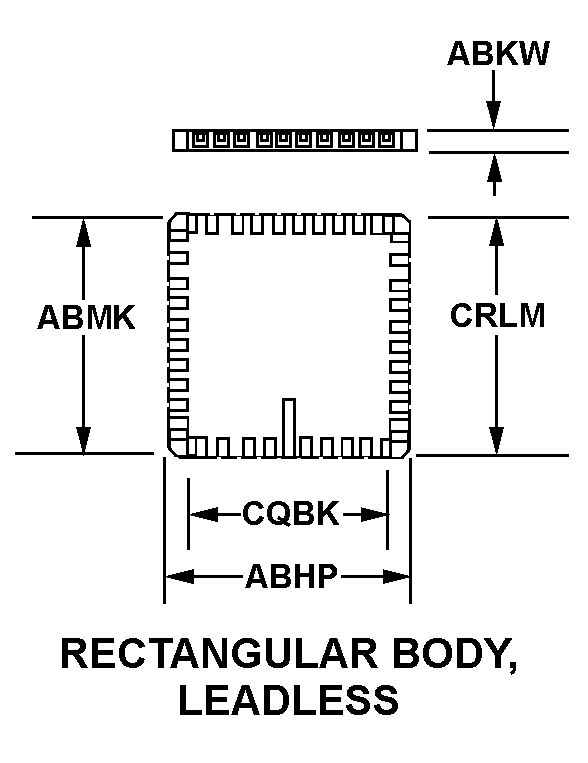

| STYLE DESIGNATOR | 50 RECTANGULAR BODY, LEADLESS |
| OVERALL LENGTH | 0.465 INCHES MINIMUM AND 0.495 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.085 INCHES MAXIMUM |
| OVERALL WIDTH | 0.465 INCHES MINIMUM AND 0.495 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.457 INCHES NOMINAL |
| SECOND CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.457 INCHES NOMINAL |
| HOLDER COVER MATERIAL | PLASTIC |
