NSN 5955-01-374-3450 TC0706AB, TCO706AB10MHZ, 2311000022
Product Details | NONCRYSTAL CONTROLLED OSCILLATOR
5955-01-374-3450 An oscillator whose operating frequency(ies) is controlled by an electronic device other than a CRYSTAL UNIT, QUARTZ. For an oscillator controlled by a crystal, see OSCILLATOR (1), CRYSTAL CONTROLLED. See also GENERATOR, SIGNAL; and CALIBRATOR, FREQUENCY. Excludes FREQUENCY SUPPLY, TELEPHONE CARRIER; RESONATOR, TUNING FORK; and OSCILLATOR, PULSE DELAY.20259550038Oscillators and Piezoelectric Crystals59630018Electronic Modules
Part Alternates: TC0706AB, TCO706AB10MHZ, 2311000022, 2311-00-0022, 5955-01-374-3450, 01-374-3450, 5955013743450, 013743450
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 APR 1993 | 01-374-3450 | 34691 ( OSCILLATOR, NONCRYSTAL CONTROLLED ) |

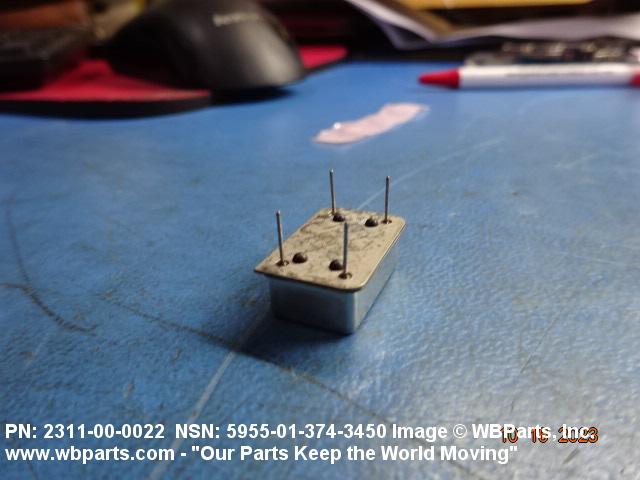

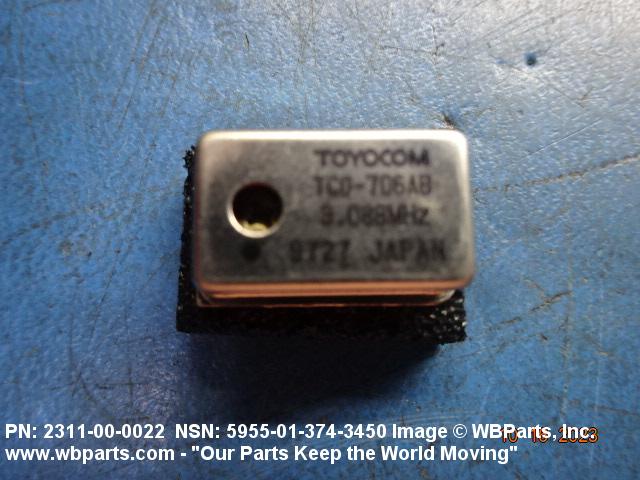

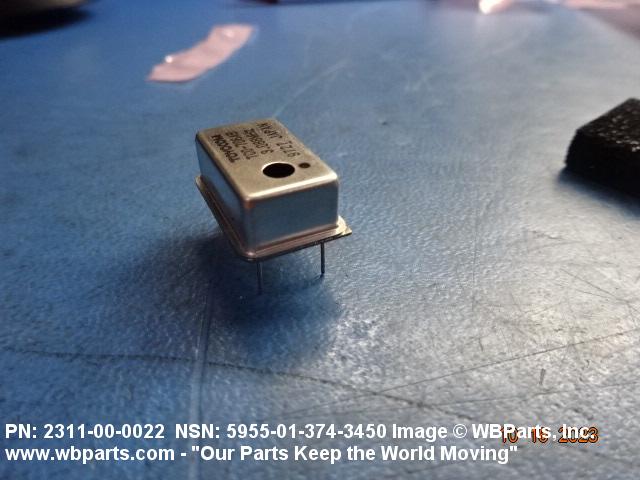

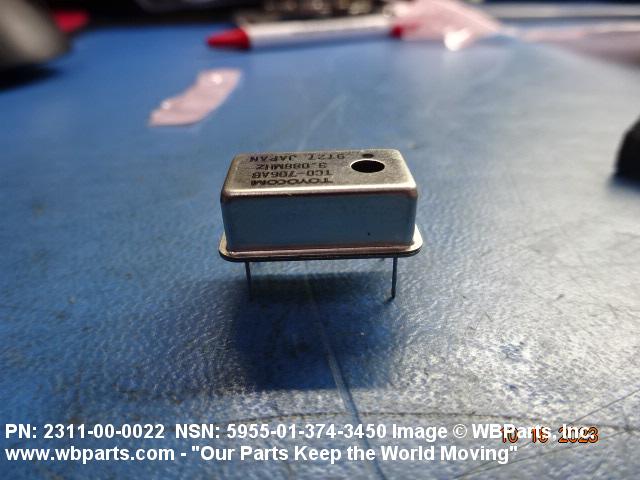

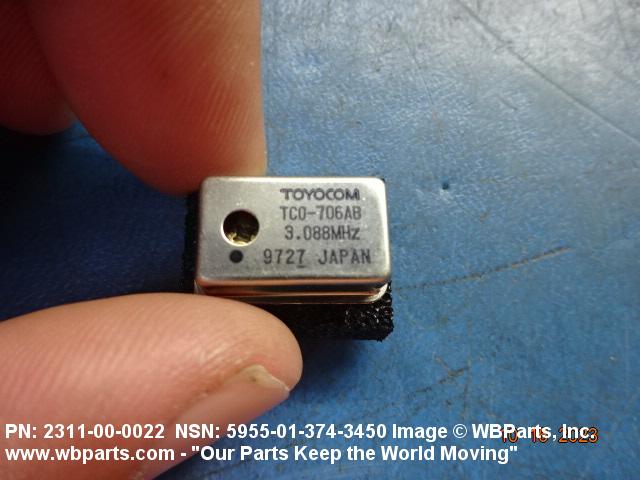

Drawings & Photos | NSN 5955-01-374-3450
Demand History | NSN 5955-01-374-3450
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2311000022 | 2023-09-248 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5955-01-374-3450
Technical Data | NSN 5955-01-374-3450
| Characteristic | Specifications |
|---|---|
| CIRCUIT CONSTRUCTION TYPE | SOLID STATE |
| FREQUENCY PER CHANNEL | 10.0 MEGAHERTZ NOMINAL OPERATING CHANNEL |
| OPERATING CONTROL METHOD | AUTOMATIC |
| CONTROL TYPE | REMOTE |
| AVERAGE LIFE MEASUREMENT | NOT RATED |
| OPERATING TEMP RANGE | 0.0 TO 50.0 DEG CELSIUS |
| EXTERNAL DC OPERATING VOLTAGE IN VOLTS | 4.75 MINIMUM SINGLE VOLTAGE AND 5.25 MAXIMUM SINGLE VOLTAGE |

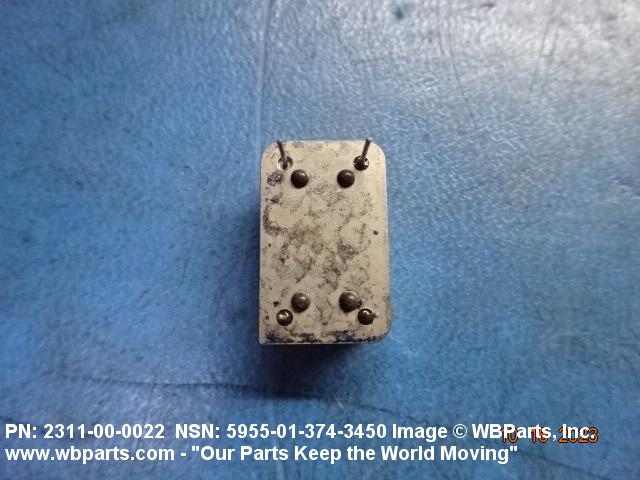

| CONNECTION TYPE AND LOCATION | PIN BOTTOM |
| CONNECTION CONTACT TYPE AND QUANTITY | 4 PIN EXTERNAL |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| INSTALLATION DESIGN | MODULE |
| BASIC SHAPE STYLE | 1 RECTANGULAR OR SQUARE |

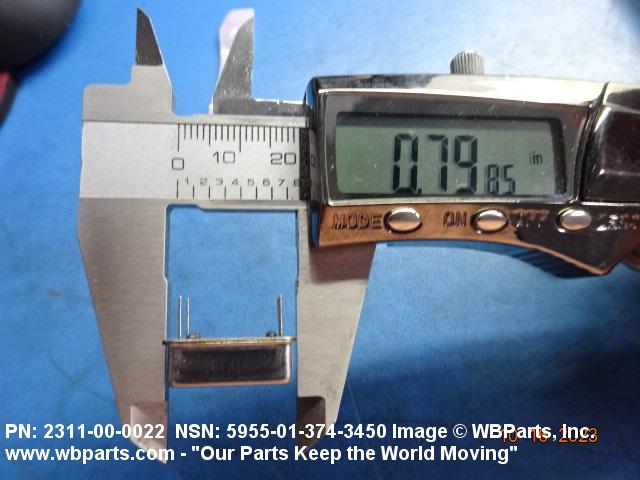

| OVERALL LENGTH | 0.820 INCHES MAXIMUM |

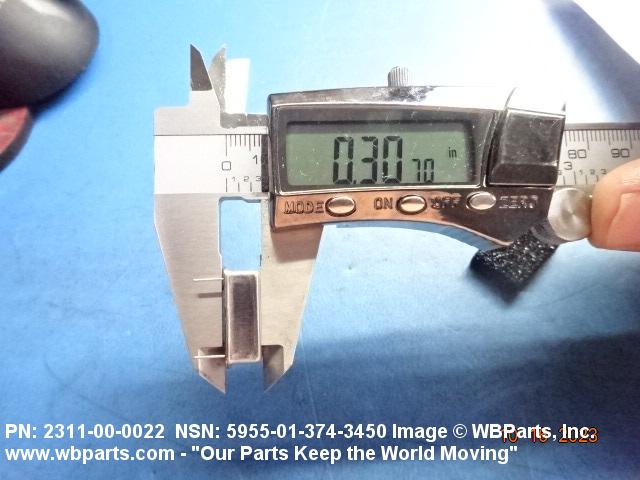

| OVERALL HEIGHT | 0.437 INCHES NOMINAL |

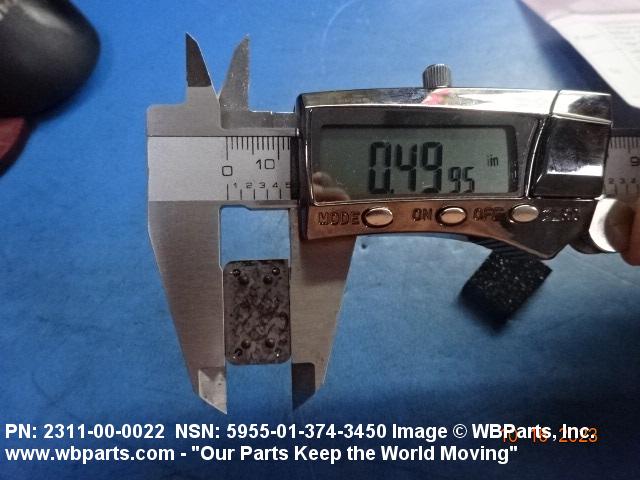

| OVERALL WIDTH | 0.520 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III STORAGE TEMP RANGE | -20.0 TO 70.0 DEG CELSIUS |
| III END ITEM IDENTIFICATION | 6625-01-286-3566 SIGNAL GENERATOR |
Restrictions/Controls & Freight Information | NSN 5955-01-374-3450
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5955-01-374-3450
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
