NSN 5955-01-525-7888 CR79/U3M60000, CR79U3M60000, MIL-C-3098/63
Product Details | QUARTZ CRYSTAL UNIT
5955-01-525-7888 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: CR79/U3M60000, CR79U3M60000, MIL-C-3098/63, MILC309863, 5955-01-525-7888, 01-525-7888, 5955015257888, 015257888
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 NOV 2004 | 01-525-7888 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-01-525-7888
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5955-01-525-7888
Technical Data | NSN 5955-01-525-7888
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| CIRCUIT RESONANCE | SERIES RESONANCE |
| SPECIFIED FREQUENCY | 3.6008 MEGAHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -50.000 TO 50.000 |
| OPERATING TEMP RANGE | -55.0 TO 105.0 DEG CELSIUS AND -55.0 TO 125.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | 50.0 MAXIMUM |
| DRIVE LEVEL RATING | 1.0 MILLIWATTS MAXIMUM |

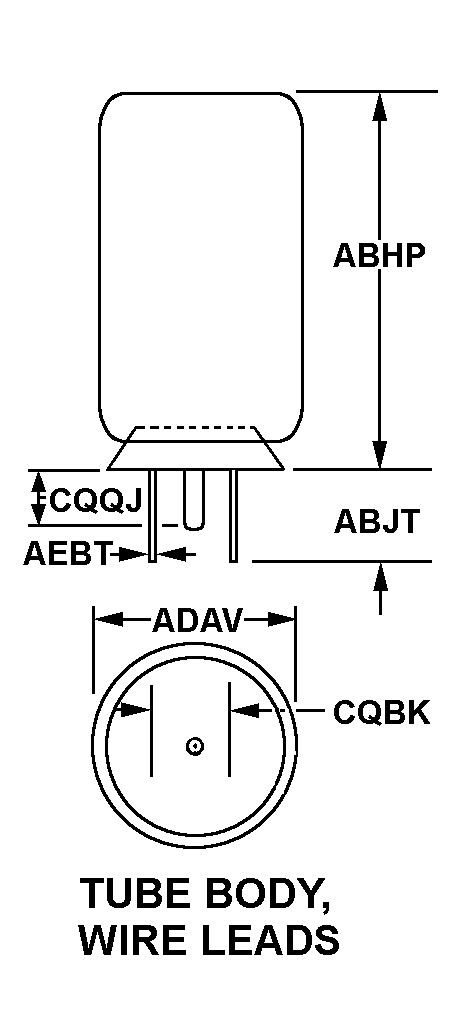

| STYLE DESIGNATOR | 10 TUBE BODY, WIRE LEADS |
| OVERALL LENGTH | 0.768 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.233 INCHES MINIMUM AND 0.248 INCHES MAXIMUM |
| OVERALL WIDTH | 0.435 INCHES MAXIMUM |
| BODY LENGTH | 0.530 INCHES MAXIMUM |
| BODY WIDTH | 0.402 INCHES MAXIMUM |
| BODY THICKNESS | 0.150 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.183 INCHES MAXIMUM |
| TERMINAL DIAMETER | 0.027 INCHES MINIMUM AND 0.032 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.184 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| HOLDER COVER MATERIAL | METAL OR GLASS |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | CR79/U3M60000 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-3098/63 |
Restrictions/Controls & Freight Information | NSN 5955-01-525-7888
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
