Product Details | ELECTRON TUBE RETAINER
5960-00-270-8165 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Part Alternates: SMC2095065, SM-C-209506-5, X62, 14094016, 14094-016, 15YHAT, 5960-00-270-8165, 00-270-8165, 5960002708165, 002708165
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-270-8165 | 16182 ( RETAINER, ELECTRON TUBE ) |
Drawings & Photos | NSN 5960-00-270-8165
Cross Reference | NSN 5960-00-270-8165
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14094-016 | 12763 | DYNALEC CORPORATION |
| 15YHAT | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM |
| SM-C-209506-5 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| X62 | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5960-00-270-8165
Related Products | NSN 5960-00-270-8165
Technical Data | NSN 5960-00-270-8165
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PASSIVATE |

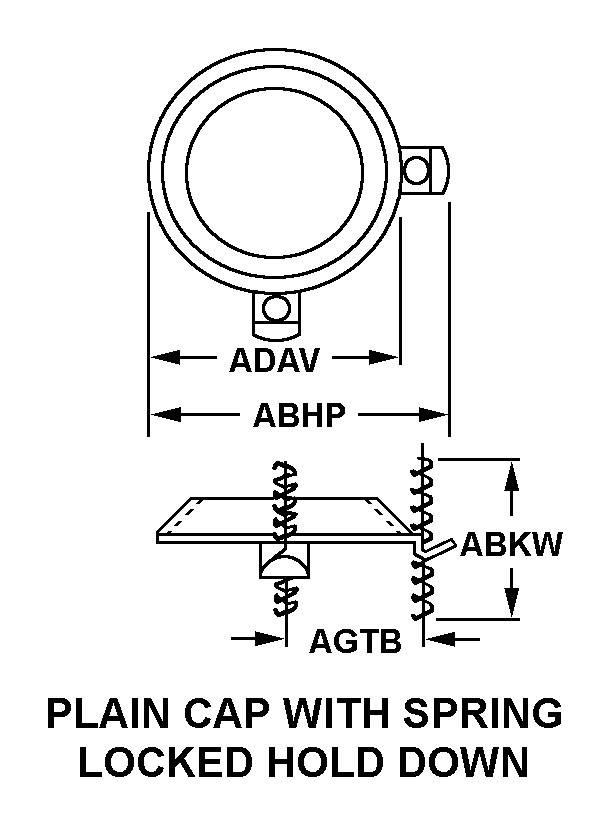

| STYLE DESIGNATOR | 29B PLAIN CAP WITH SPRING LOCKED HOLD DOWN |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | ANY ACCEPTABLE |
| OVERALL DIAMETER | 2.000 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 1.406 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | COMPRESSION RING |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.169 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| BOLT CIRCLE DIAMETER | 2.812 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| ELECTRON TUBE BASE ACCOMMODATED DIAMETER | 1.985 TO 2.031 INCHES |
