NSN 5960-00-296-7002 DMB171A03, 68F3, 00-296-7002
Product Details | ELECTRON TUBE RETAINER
5960-00-296-7002 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Part Alternates: DMB171A03, 68F3, 5960-00-296-7002, 00-296-7002, 5960002967002, 002967002
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-296-7002 | 16182 ( RETAINER, ELECTRON TUBE ) |
Drawings & Photos | NSN 5960-00-296-7002
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5960-00-296-7002
Technical Data | NSN 5960-00-296-7002
| Characteristic | Specifications |
|---|---|

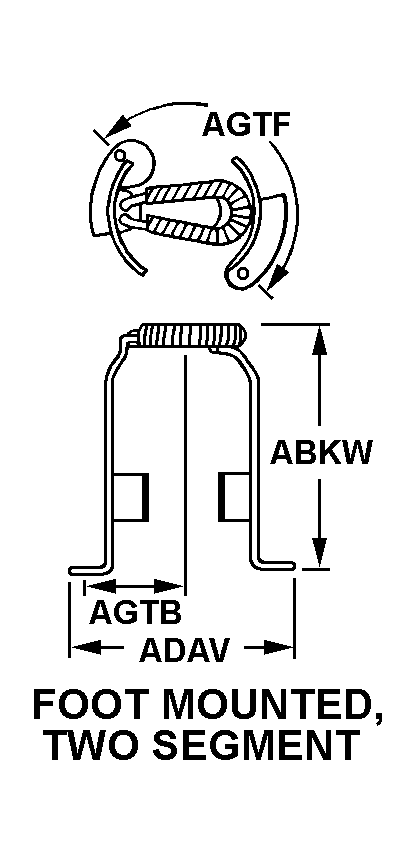

| STYLE DESIGNATOR | 55B FOOT MOUNTED, TWO SEGMENT |
| OVERALL HEIGHT | 2.375 INCHES NOMINAL |
| OVERALL DIAMETER | 1.375 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 0.562 INCHES NOMINAL |
| ANGLE BETWEEN ADJACENT MOUNTING FACILITIES IN DEG | 180.0 |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | T5 1-2 |
Restrictions/Controls & Freight Information | NSN 5960-00-296-7002
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
