NSN 5960-00-300-2358 1003540, 00-300-2358, 003002358
Product Details | ELECTRON TUBE RETAINER
5960-00-300-2358 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Part Alternates: 1003540, 5960-00-300-2358, 00-300-2358, 5960003002358, 003002358
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-300-2358 | 16182 ( RETAINER, ELECTRON TUBE ) |
Drawings & Photos | NSN 5960-00-300-2358
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5960-00-300-2358
Technical Data | NSN 5960-00-300-2358
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-318,H34 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PHOSPHATE |

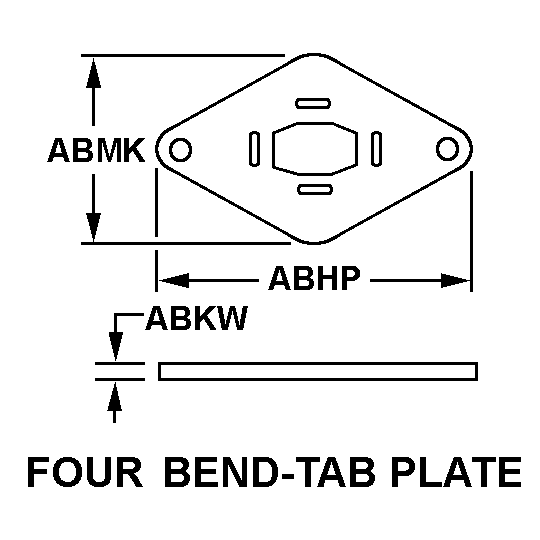

| STYLE DESIGNATOR | 4B FOUR BEND-TAB PLATE |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.380 INCHES NOMINAL |
| OVERALL WIDTH | 1.290 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | COMPRESSION SPRING |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.146 INCHES MINIMUM AND 0.150 INCHES MAXIMUM SINGLE MOUNTING FACILITY |
| BOLT CIRCLE DIAMETER | 1.750 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| SPECIAL FEATURES | RETAINER HAS FOUR 0.505 IN. DIA THRU HOLES WITH MTG EARS |
Restrictions/Controls & Freight Information | NSN 5960-00-300-2358
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
