NSN 5960-00-858-1168 475, 00-858-1168, 008581168
Product Details | ELECTRON TUBE RETAINER
5960-00-858-1168 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Part Alternates: 475, 5960-00-858-1168, 00-858-1168, 5960008581168, 008581168
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-858-1168 | 16182 ( RETAINER, ELECTRON TUBE ) |
Drawings & Photos | NSN 5960-00-858-1168
Demand History | NSN 5960-00-858-1168
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 475 | 2017-03-90 | 1 | Malaysia |
Cross Reference | NSN 5960-00-858-1168
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 475 | 07157 | KESTLER ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5960-00-858-1168
Related Products | NSN 5960-00-858-1168
Technical Data | NSN 5960-00-858-1168
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | CHROMIUM AND NICKEL |

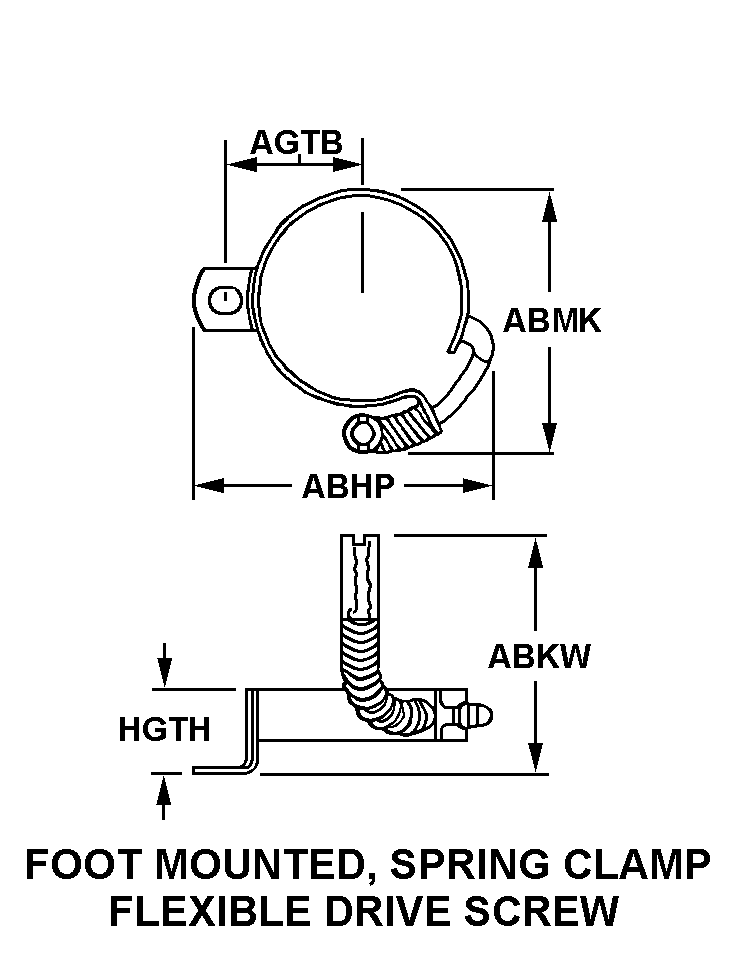

| STYLE DESIGNATOR | 51B FOOT MOUNTED, SPRING CLAMP FLEXIBLE DRIVE SCREW |
| OVERALL LENGTH | 1.375 INCHES NOMINAL |
| OVERALL HEIGHT | 2.020 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 1.090 INCHES NOMINAL |
| HEIGHT | 1.000 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | CLAMP |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SLOT SINGLE MOUNTING FACILITY |
| MOUNTING SLOT WIDTH | 0.177 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MOUNTING SLOT LENGTH | 0.250 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| ELECTRON TUBE BASE ACCOMMODATED DIAMETER | 1.453 TO 1.546 INCHES |
Restrictions/Controls & Freight Information | NSN 5960-00-858-1168
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5960-00-858-1168
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
