NSN 5960-01-271-4820 7706805101, 77-068051-01, 01-271-4820
Product Details | ELECTRON TUBE SHIELD
5960-01-271-4820 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Part Alternates: 7706805101, 77-068051-01, 5960-01-271-4820, 01-271-4820, 5960012714820, 012714820
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 JAN 1988 | 01-271-4820 | 10195 ( SHIELD, ELECTRON TUBE ) |
Drawings & Photos | NSN 5960-01-271-4820
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5960-01-271-4820
Technical Data | NSN 5960-01-271-4820
| Characteristic | Specifications |
|---|---|

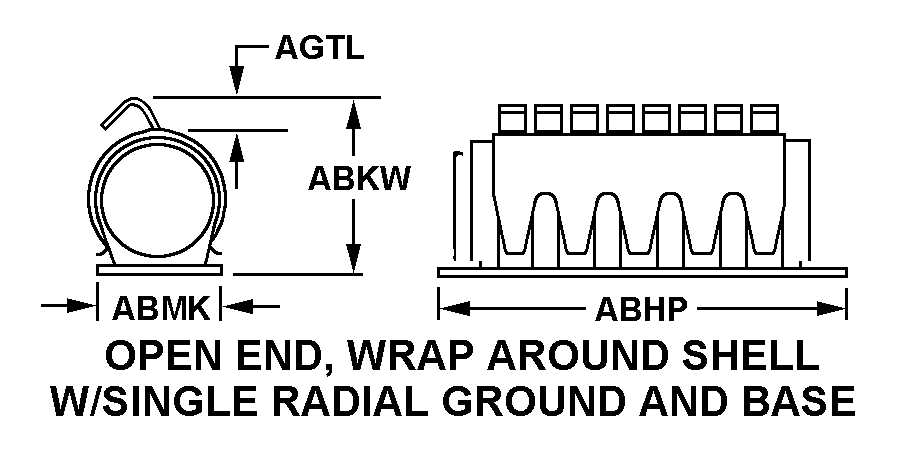

| STYLE DESIGNATOR | 10A OPEN END, WRAP AROUND SHELL W/SINGLE RADIAL GROUND AND BASE |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.870 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5960-01-271-4820
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
