NSN 5961-00-173-4899 MJ4034, MJ4034A, EP1873C
Product Details | TRANSISTOR
5961-00-173-4899 An active semiconductor device with three or more electrodes. May or may not include mounting hardware and/or heatsink. Excludes SEMICONDUCTOR DEVICE, DIODE and SEMICONDUCTOR DEVICE, THYRISTOR. For solid state devices which are responsive to visible or infrared radiant energy, see SEMICONDUCTOR DEVICE, PHOTO.
Part Alternates: MJ4034, MJ4034A, EP1873C, 3521005030, 352-1005-030, 5961-00-173-4899, 00-173-4899, 5961001734899, 001734899
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 SEP 1972 | 00-173-4899 | 20588 ( TRANSISTOR ) |

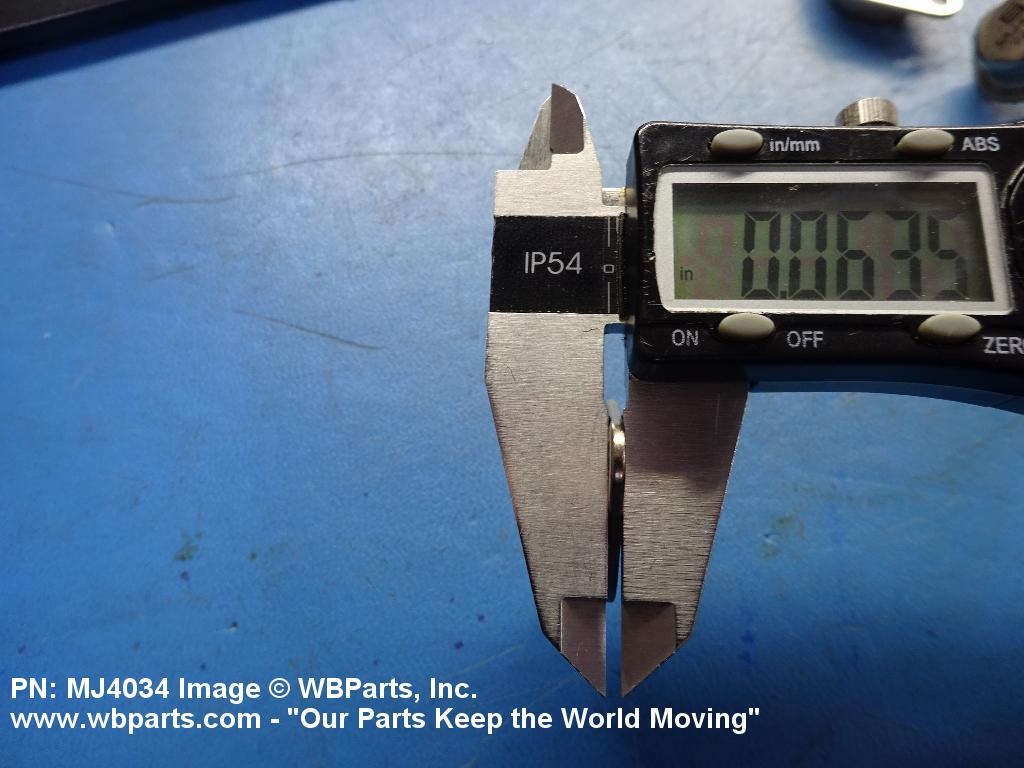

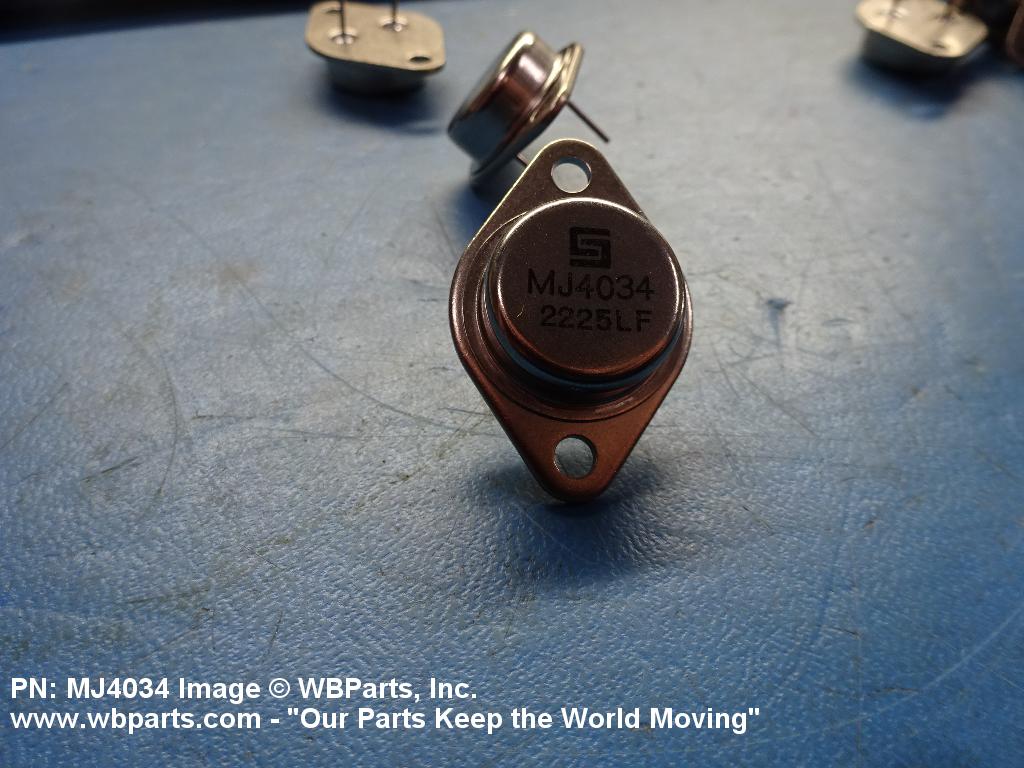

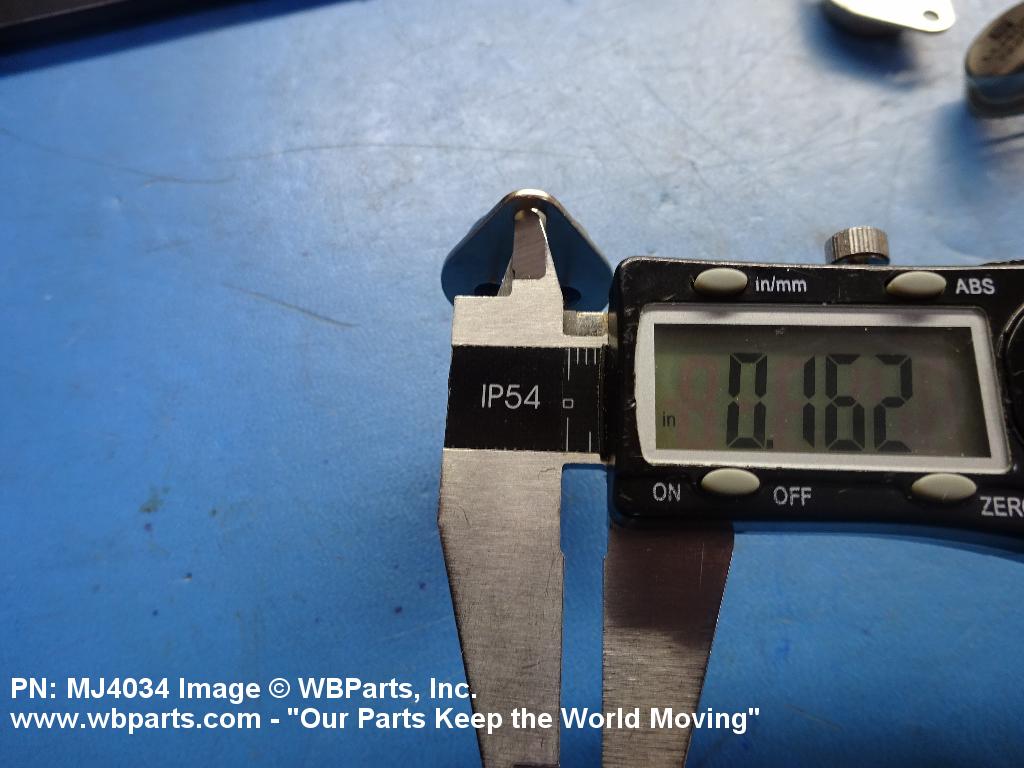

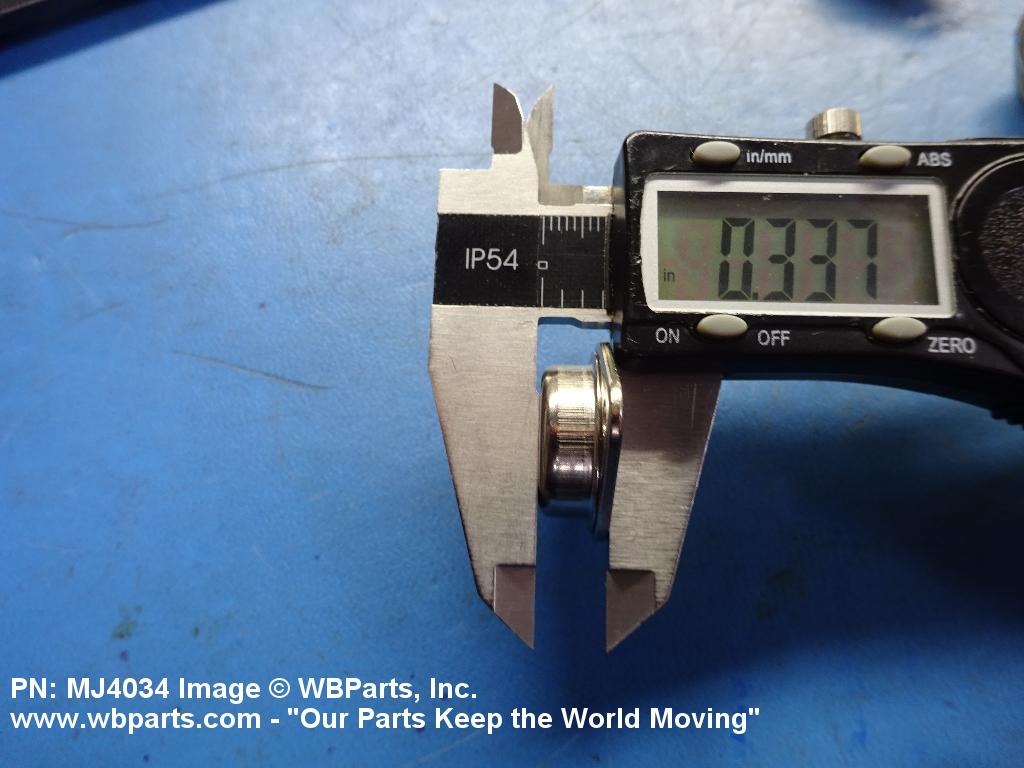

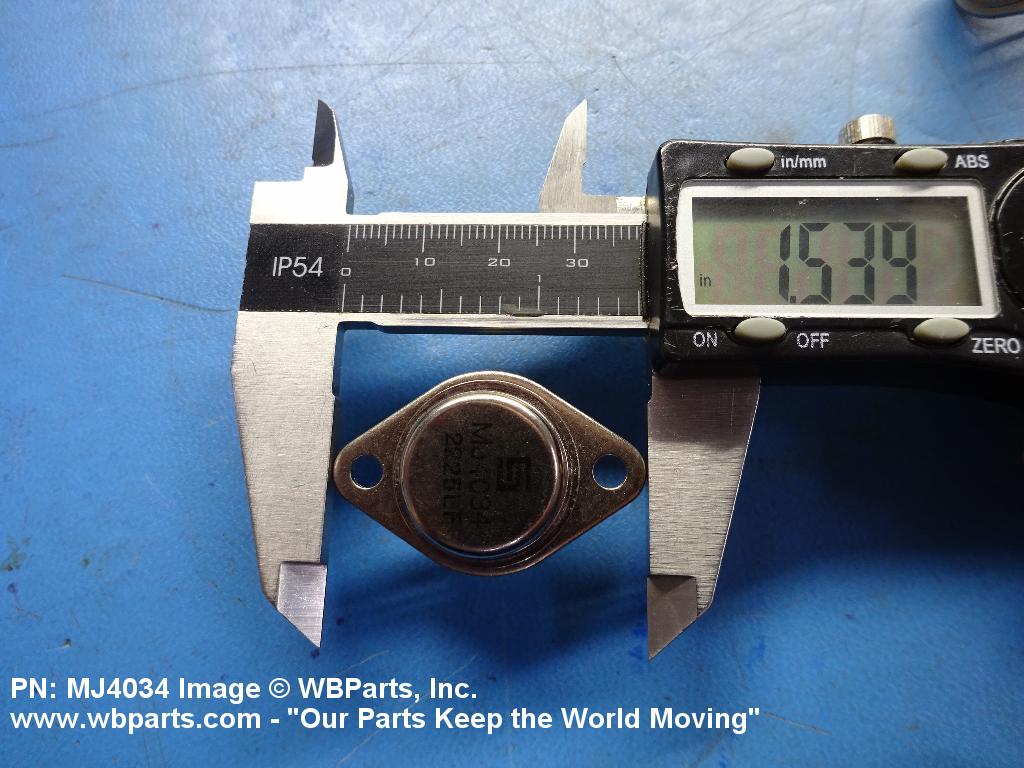

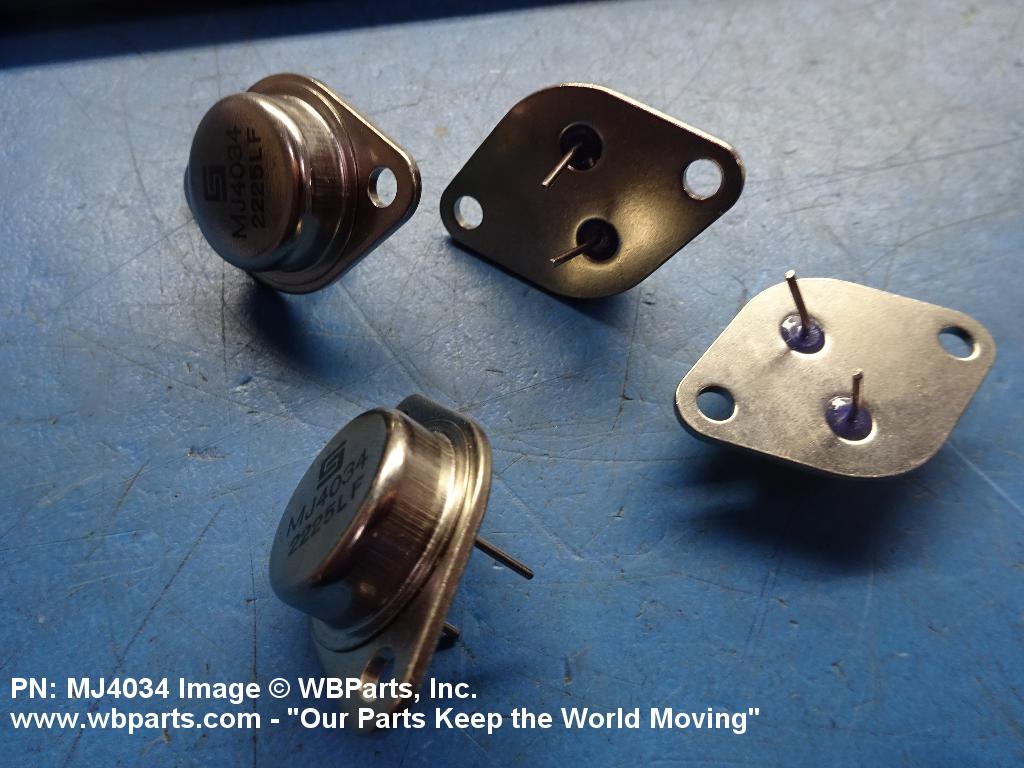

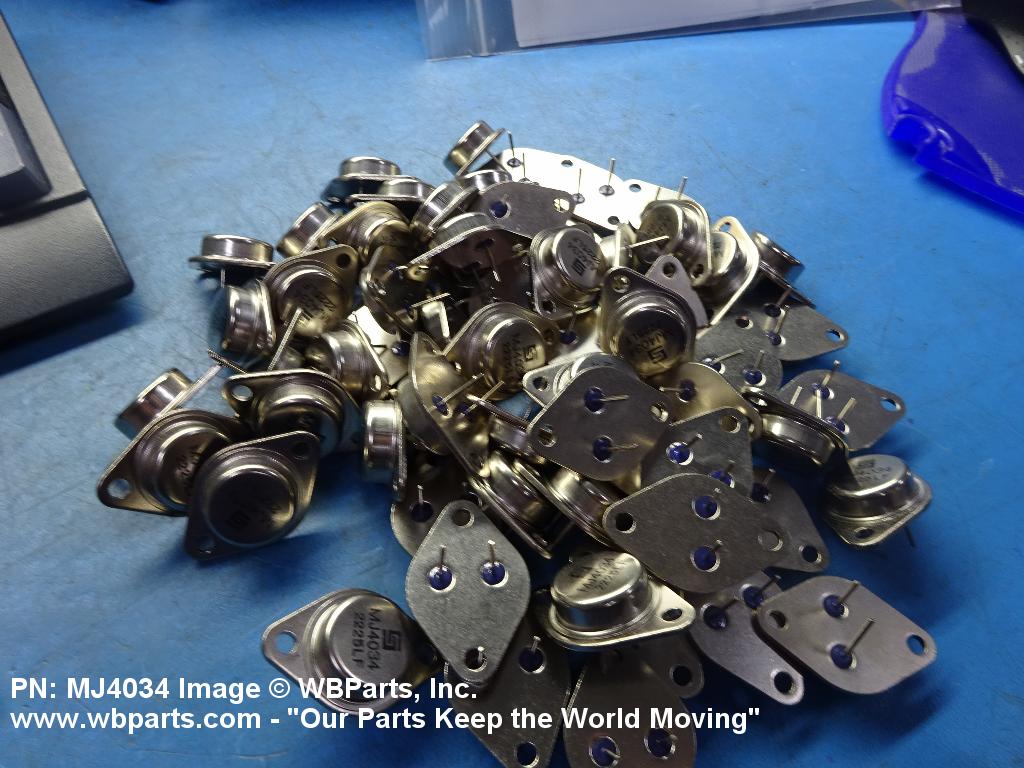

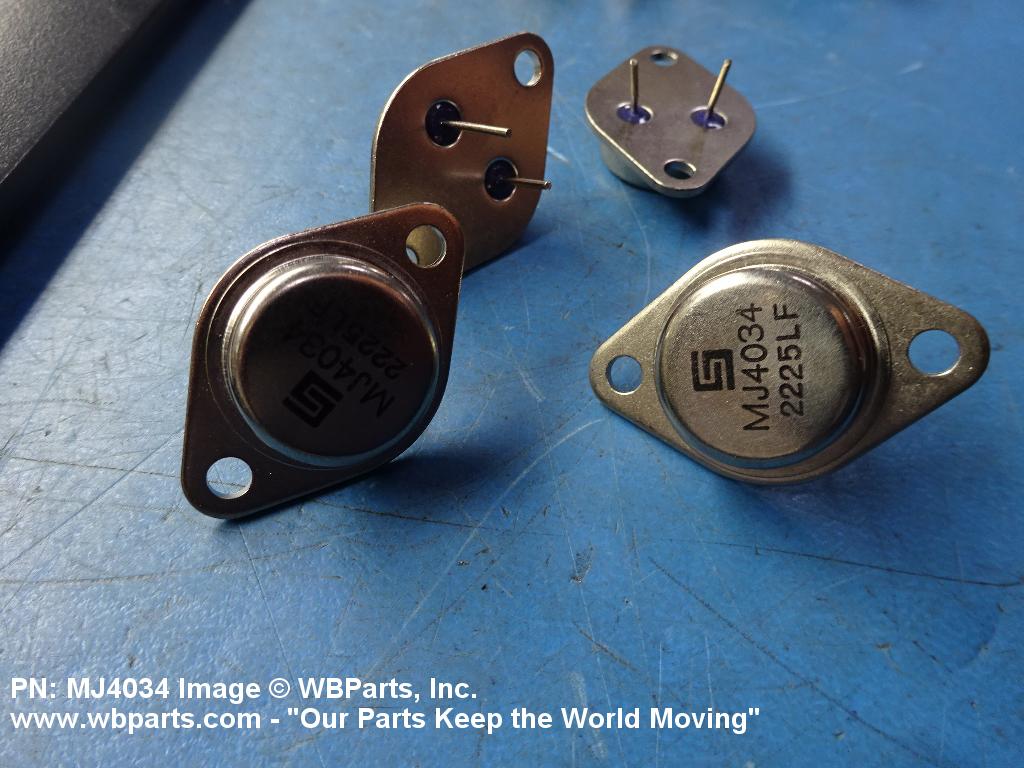

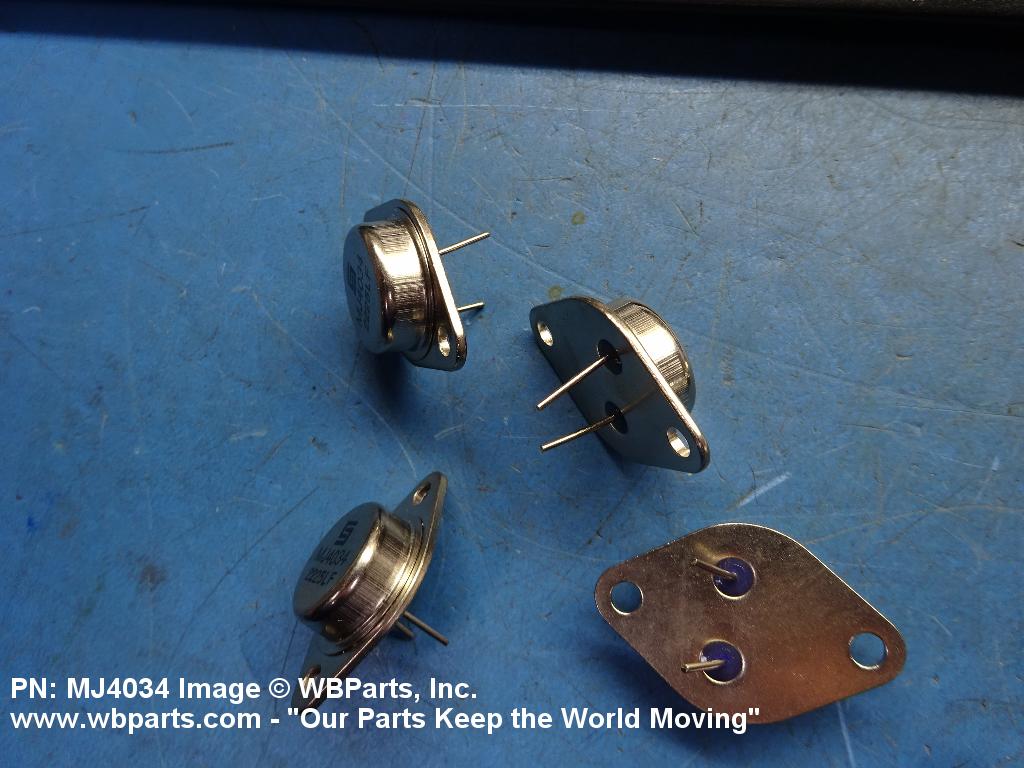

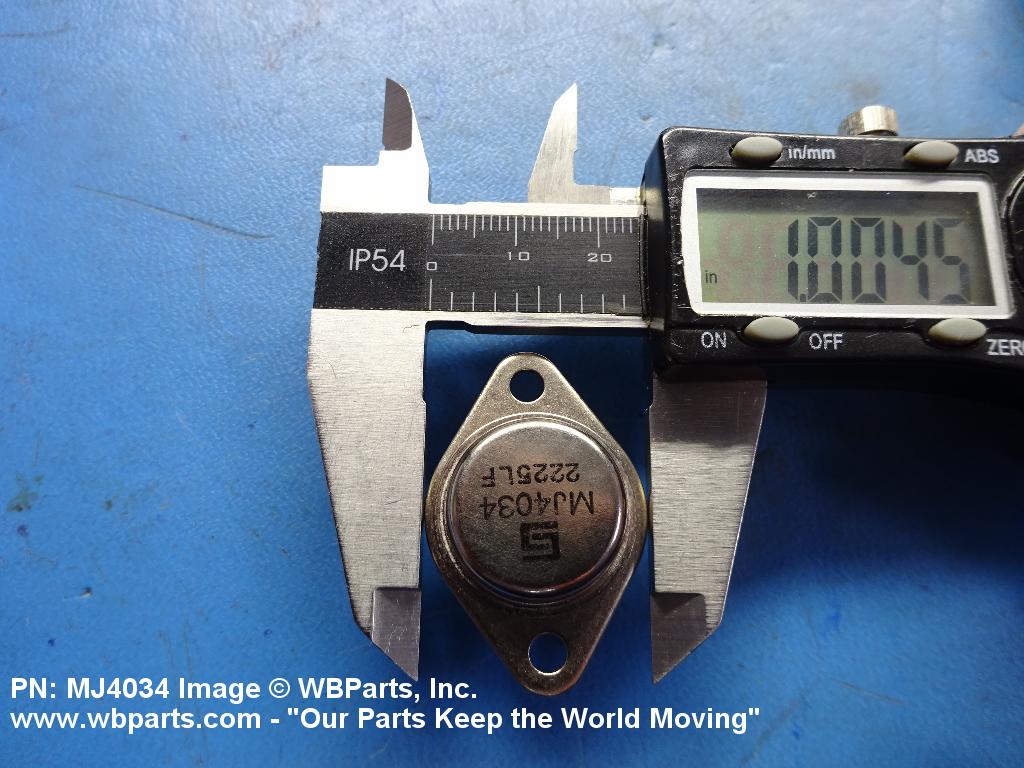

Drawings & Photos | NSN 5961-00-173-4899
Demand History | NSN 5961-00-173-4899
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MJ4034 | 2022-06-152 | 63 | United States |
| 3521005030 | 2010-08-222 | 5 | United States |
Cross Reference | NSN 5961-00-173-4899
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 352-1005-030 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| EP1873C | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| MJ4034 | 04713 | FREESCALE SEMICONDUCTOR, INC. |
| MJ4034 | C7191 | ADELCO ELEKTRONIK GMBH |
| MJ4034 | F4597 | FREESCALE SEMICONDUCTEURS FRANCE SAS |
| MJ4034A | C7191 | ADELCO ELEKTRONIK GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5961-00-173-4899
Technical Data | NSN 5961-00-173-4899
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | SILICON |
| INTERNAL CONFIGURATION | JUNCTION CONTACT |
| INTERNAL JUNCTION CONFIGURATION | NPN |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 80.0 MAXIMUM COLLECTOR TO EMITTER VOLTAGE/STATIC/BASE OPEN AND 80.0 MAXIMUM COLLECTOR TO BASE VOLTAGE, DC AND 5.0 MAXIMUM EMITTER TO BASE VOLTAGE, INSTANTANEOUS |
| CURRENT RATING PER CHARACTERISTIC | 0.50 AMPERES MAXIMUM BASE CURRENT, DC AND 16.00 AMPERES MAXIMUM COLLECTOR CURRENT, DC |
| POWER RATING PER CHARACTERISTIC | 150.0 WATTS MAXIMUM TOTAL DEVICE DISSIPATION |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 200.0 DEG CELSIUS JUNCTION |
| INCLOSURE MATERIAL | METAL |
| ELECTRODE INTERNALLY-ELECTRICALLY CONNECTED TO CASE | COLLECTOR |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD AND 1 CASE |
| OVERALL LENGTH | 0.375 INCHES NOMINAL |
| OVERALL DIAMETER | 0.875 INCHES MAXIMUM |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
Restrictions/Controls & Freight Information | NSN 5961-00-173-4899
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061990 | ELECTRICAL EQUIP:FILTERS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
