Product Details | TRANSISTOR
5961-00-420-2873 An active semiconductor device with three or more electrodes. May or may not include mounting hardware and/or heatsink. Excludes SEMICONDUCTOR DEVICE, DIODE and SEMICONDUCTOR DEVICE, THYRISTOR. For solid state devices which are responsive to visible or infrared radiant energy, see SEMICONDUCTOR DEVICE, PHOTO.
Part Alternates: ST8415, 1242015035, 124-201-5035, 2N657A, 5961-00-420-2873, 00-420-2873, 5961004202873, 004202873
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 MAR 1969 | 00-420-2873 | 20588 ( TRANSISTOR ) |

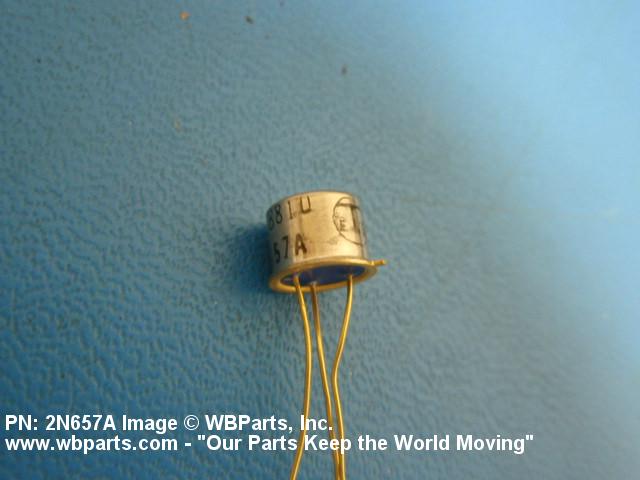

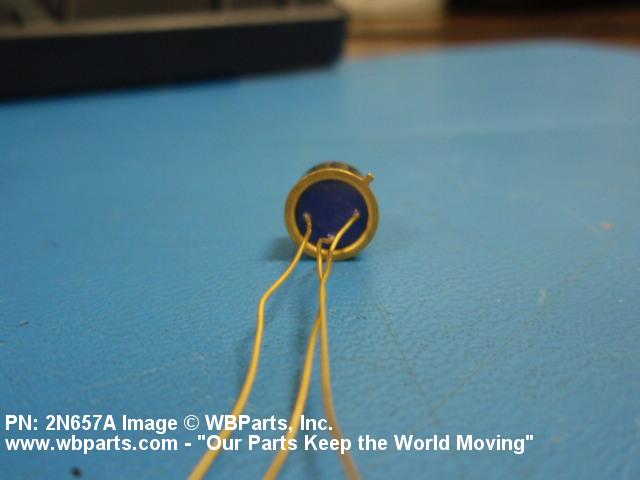

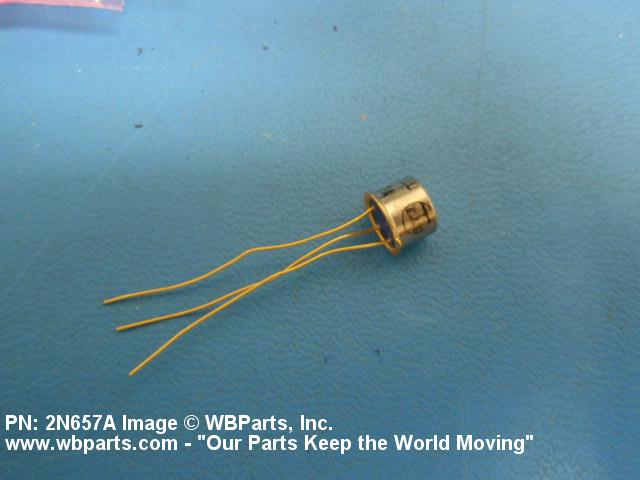

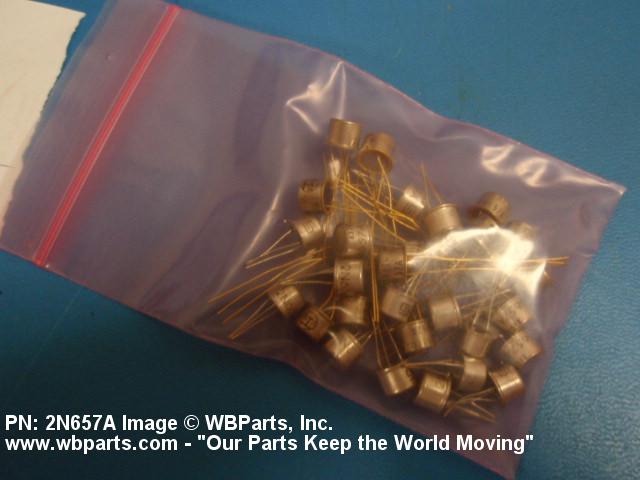

Drawings & Photos | NSN 5961-00-420-2873
Cross Reference | NSN 5961-00-420-2873
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 124-201-5035 | 1K426 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| 124-201-5035 | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| 2N657A | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| 2N657A | 03508 | GENERAL ELECTRIC CO SEMI-CONDUCTOR PRODUCTS DEPT |
| ST8415 | 03877 | GILBERT ENGINEERING CO INC/INCON SUB OF TRANSITRON ELECTRONIC CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5961-00-420-2873
Related Products | NSN 5961-00-420-2873
Technical Data | NSN 5961-00-420-2873
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | SILICON |
| INTERNAL CONFIGURATION | JUNCTION CONTACT |
| INTERNAL JUNCTION CONFIGURATION | NPN |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 100.0 MAXIMUM BREAKDOWN VOLTAGE, COLLECTOR-TO-EMITTER, BASE OPEN |
| CURRENT RATING PER CHARACTERISTIC | 500.00 MILLIAMPERES MAXIMUM COLLECTOR CURRENT, DC AND 10.00 MICROAMPERES MAXIMUM COLLECTOR CUTOFF CURRENT, DC, EMITTER OPEN |
| POWER RATING PER CHARACTERISTIC | 1.0 WATTS MAXIMUM TOTAL DEVICE DISSIPATION |
| TRANSFER RATIO | 30.0 MINIMUM STATIC FORWARD CURRENT TRANSFER RATIO, COMMON-EMITTER AND 90.0 MAXIMUM STATIC FORWARD CURRENT TRANSFER RATIO, COMMON-EMITTER |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 175.0 DEG CELSIUS JUNCTION |
| INCLOSURE MATERIAL | METAL |
| ELECTRODE INTERNALLY-ELECTRICALLY CONNECTED TO CASE | COLLECTOR |
| JOINT ELECTRONIC DEVICE ENGINEERING COUNCIL/JEDEC/CASE OUTLINE DESIGNATION | TO-5 |
| MOUNTING METHOD | TERMINAL |
| TERMINAL LENGTH | 1.500 INCHES MINIMUM |
| TERMINAL CIRCLE DIAMETER | 0.200 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 UNINSULATED WIRE LEAD |
| OVERALL LENGTH | 0.250 INCHES NOMINAL |
| OVERALL DIAMETER | 0.352 INCHES NOMINAL |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| MANUFACTURERS CODE | 1K426 |
| MFR SOURCE CONTROLLING REFERENCE | 124-201-5035 |
