NSN 5961-00-433-7789 FDH9129, 10174034, 1N3062

Product Details | DIODE SEMICONDUCTOR DEVICE


5961-00-433-7789 A two electrode semiconductor device having an asymmetrical voltage - current characteristic. May or may not include mounting hardware and/or heatsink. Excludes LIGHT EMITTING DIODE and SEMICONDUCTOR DEVICE,PHOTO. For items containing material such as selenium and copper oxide, see RECIFIER, METALLIC.

Part Alternates: FDH9129, 10174034, 1N3062, 5961-00-433-7789, 00-433-7789, 5961004337789, 004337789

Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware

Supply Group (FSG) NSN Assign. NIIN
59 12 AUG 1970 00-433-7789

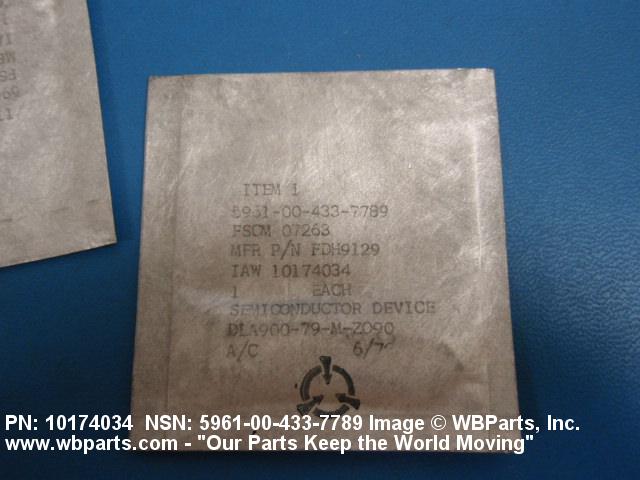

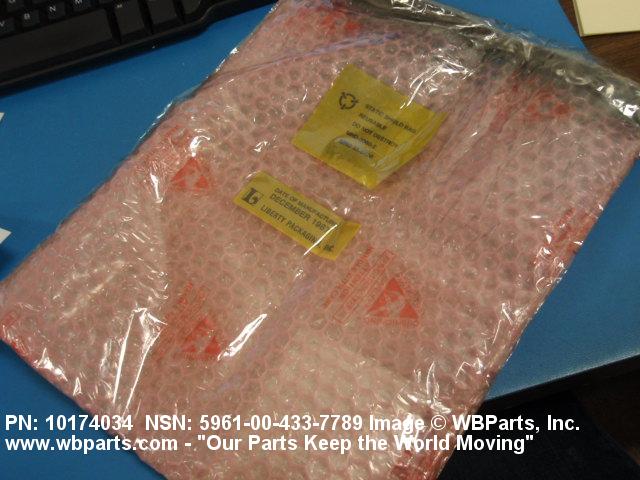

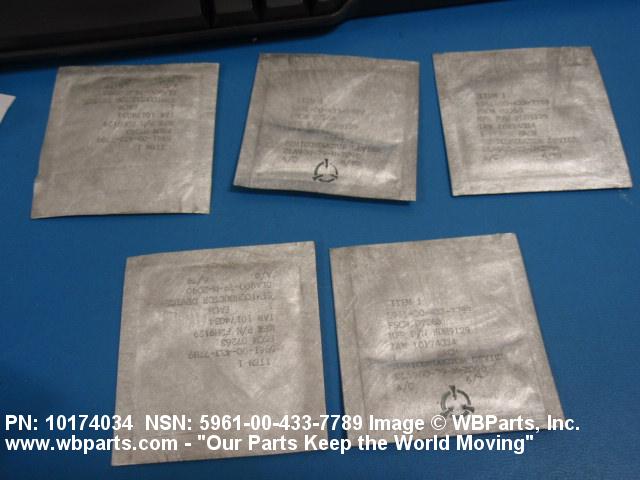

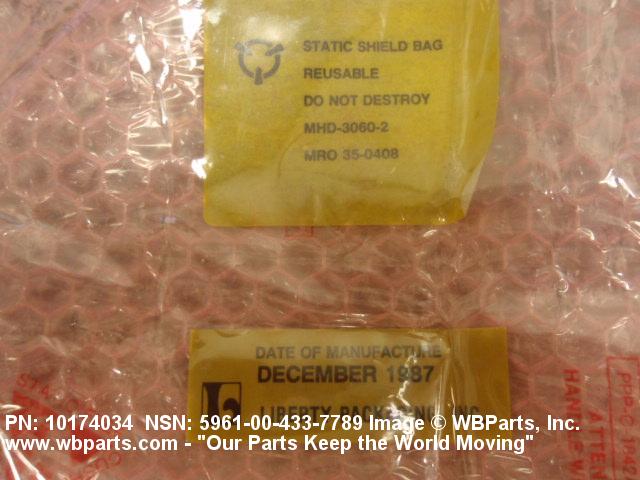

Drawings & Photos | NSN 5961-00-433-7789



Demand History | NSN 5961-00-433-7789


Part Number Request Date QTY Origin
5961-00-433-7789 2009-06-24 2 United States

Cross Reference | NSN 5961-00-433-7789


Part Number Cage Code Manufacturer
10174034 18876 U S ARMY AVIATION AND MISSILE COMMAND
10174034 31338 SEMITRONICS CORP
1N3062 31338 SEMITRONICS CORP
FDH9129 07263 FAIRCHILD SEMICONDUCTOR CORP

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5961-00-433-7789


Technical Data | NSN 5961-00-433-7789


Characteristic Specifications
SEMICONDUCTOR MATERIAL SILICON
VOLTAGE RATING IN VOLTS PER CHARACTERISTIC 75.0 MAXIMUM REVERSE VOLTAGE, PEAK
CURRENT RATING PER CHARACTERISTIC -20.00 MILLIAMPERES MAXIMUM FORWARD CURRENT, DC AND 0.10 MICROAMPERES MAXIMUM REVERSE CURRENT, DC
INCLOSURE MATERIAL GLASS
MOUNTING METHOD TERMINAL
TERMINAL LENGTH 1.000 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY 2 UNINSULATED WIRE LEAD
OVERALL LENGTH 0.120 INCHES MINIMUM AND 0.300 INCHES MAXIMUM
OVERALL DIAMETER 0.060 INCHES MINIMUM AND 0.107 INCHES MAXIMUM
FEATURES PROVIDED HERMETICALLY SEALED CASE

Restrictions/Controls & Freight Information | NSN 5961-00-433-7789


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 063025 SEMICONDUCTORS/DEVICES NOI ETC
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 658 unknown
Originating Activity Code TX Defense Supply Center Columbus
Columbus, OH 43218
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5961-00-433-7789


Category Code Description
Materiel Category and Inventory ManagerQ Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplyS9EDefense Supply Center Columbus
Columbus, OH 43218
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
