NSN 5961-00-893-9563 JAN2N1016B, MIL-S-19500/102, MILS19500102
Product Details | TRANSISTOR
5961-00-893-9563 An active semiconductor device with three or more electrodes. May or may not include mounting hardware and/or heatsink. Excludes SEMICONDUCTOR DEVICE, DIODE and SEMICONDUCTOR DEVICE, THYRISTOR. For solid state devices which are responsive to visible or infrared radiant energy, see SEMICONDUCTOR DEVICE, PHOTO.
Part Alternates: JAN2N1016B, MIL-S-19500/102, MILS19500102, VBE8902N1016B, VBE890-2N1016B, 1073423, 107-342-3, 2N1016A, 2N1016B, 352250010173, 3527500040, 352-7500-040, 5961-00-893-9563, 00-893-9563, 5961008939563, 008939563
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-893-9563 | 20588 ( TRANSISTOR ) |

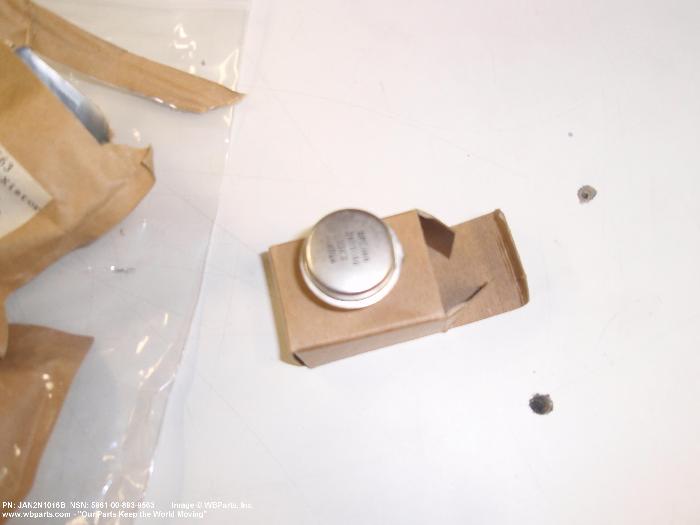

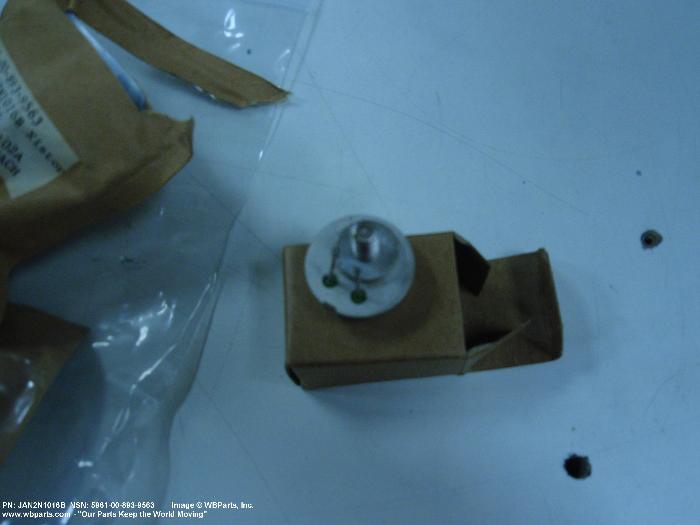

Drawings & Photos | NSN 5961-00-893-9563
Demand History | NSN 5961-00-893-9563
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5961-00-893-9563 | 2023-05-143 | 5 | DIBBS |
| 5961-00-893-9563 | 2022-07-184 | 4 | Taiwan |
| 5961-00-893-9563 | 2022-06-167 | 10 | Taiwan |
| 5961-00-893-9563 | 2020-10-294 | 10 | DIBBS |
| 5961-00-893-9563 | 2020-05-139 | 11 | DIBBS |
| 5961-00-893-9563 | 2020-05-128 | 11 | DIBBS |
| 5961-00-893-9563 | 2019-09-246 | 10 | DIBBS |
| 5961-00-893-9563 | 2013-08-216 | 19 | DIBBS |
| 5961-00-893-9563 | 2013-01-07 | 4 | DIBBS |
| 5961-00-893-9563 | 2012-11-333 | 3 | DIBBS |
| JAN2N1016B | 2010-10-278 | 5 | United Kingdom |
| 5961-00-893-9563 | 2010-08-231 | 31 | DIBBS |
| 5961-00-893-9563 | 2010-08-217 | 16 | DIBBS |
| 5961-00-893-9563 | 2010-04-95 | 41 | DIBBS |
| 5961-00-893-9563 | 2010-02-36 | 41 | DIBBS |
| 5961-00-893-9563 | 2009-07-183 | 21 | DIBBS |
| 5961-00-893-9563 | 2008-12-365 | 38 | DIBBS |
| 5961-00-893-9563 | 2008-12-337 | 42 | DIBBS |
| 5961-00-893-9563 | 2008-11-324 | 15 | DIBBS |
| JAN2N1016B | 2008-09-246 | 2 | France |
| 5961-00-893-9563 | 2007-10-278 | 7 | DIBBS |
| 5961-00-893-9563 | 2007-08-225 | 12 | DIBBS |
| 5961-00-893-9563 | 2007-08-215 | 18 | DIBBS |
| 5961-00-893-9563 | 2007-03-71 | 11 | DIBBS |
Cross Reference | NSN 5961-00-893-9563
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 107-342-3 | 30045 | SOLID POWER CORP |
| 107-342-3 | 52333 | API ELECTRONICS, INC. DBA API TECHNOLOGIES CORP |
| 107-342-3 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 2N1016A | 05277 | WESTINGHOUSE ELECTRIC CORP SEMICONDUCTOR DIV |
| 2N1016B | 05277 | WESTINGHOUSE ELECTRIC CORP SEMICONDUCTOR DIV |
| 2N1016B | 30045 | SOLID POWER CORP |
| 2N1016B | 52333 | API ELECTRONICS, INC. DBA API TECHNOLOGIES CORP |
| 2N1016B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 2N1016B | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| 352-7500-040 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 352250010173 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
| JAN2N1016B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-19500/102 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| VBE890-2N1016B | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5961-00-893-9563
Related Products | NSN 5961-00-893-9563
Technical Data | NSN 5961-00-893-9563
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | SILICON |
| INTERNAL CONFIGURATION | JUNCTION CONTACT |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 100.0 MAXIMUM COLLECTOR TO BASE VOLTAGE/STATIC/EMITTER OPEN AND 100.0 MAXIMUM COLLECTOR TO EMITTER VOLTAGE/STATIC/BASE OPEN AND 25.0 MAXIMUM EMITTER TO BASE VOLTAGE, STATIC, COLLECTOR OPEN |
| CURRENT RATING PER CHARACTERISTIC | 7.50 AMPERES MAXIMUM COLLECTOR CURRENT, DC |
| POWER RATING PER CHARACTERISTIC | 150.0 WATTS MAXIMUM COLLECTOR POWER DISSIPATION |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 150.0 DEG CELSIUS JUNCTION |
| INCLOSURE MATERIAL | METAL |
| ELECTRODE INTERNALLY-ELECTRICALLY CONNECTED TO CASE | COLLECTOR |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING FACILITY QUANTITY | 1 |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| TERMINAL TYPE AND QUANTITY | 1 THREADED STUD AND 2 TAB, SOLDER LUG |
| OVERALL LENGTH | 0.500 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.240 INCHES MINIMUM AND 1.280 INCHES MAXIMUM |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| SPECIAL FEATURES | JUNCTION PATTERN ARRANGEMENT: NPN |
| TEST DATA DOCUMENT | 81349-MIL-S-19500 SPECIFICATION |
| (NON-CORE DATA) SPECIFICATION/STANDARD DATA | 81349-MIL-S-19500/102 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | JAN2N1016B |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-19500/102 |
Restrictions/Controls & Freight Information | NSN 5961-00-893-9563
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5961-00-893-9563
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
