NSN 5961-00-927-2932 RELEASE4452, 08420115023, 084-20115-023
Product Details | TRANSISTOR
5961-00-927-2932 An active semiconductor device with three or more electrodes. May or may not include mounting hardware and/or heatsink. Excludes SEMICONDUCTOR DEVICE, DIODE and SEMICONDUCTOR DEVICE, THYRISTOR. For solid state devices which are responsive to visible or infrared radiant energy, see SEMICONDUCTOR DEVICE, PHOTO.
Part Alternates: RELEASE4452, 08420115023, 084-20115-023, 007-0032-00, 151-0154-00, 19J707496G1, 27213630027, 2721-3630027, 2N2924, 2N2924A, 4JX16A1336, 5961-00-927-2932, 00-927-2932, 5961009272932, 007003200, 009272932, 151015400
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 AUG 1966 | 00-927-2932 | 20588 ( TRANSISTOR ) |

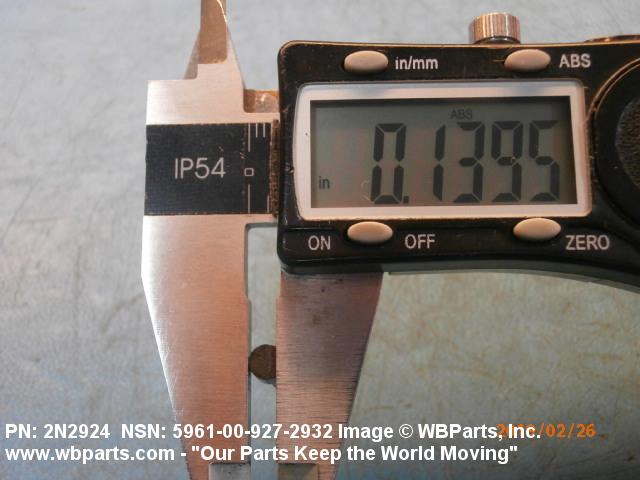

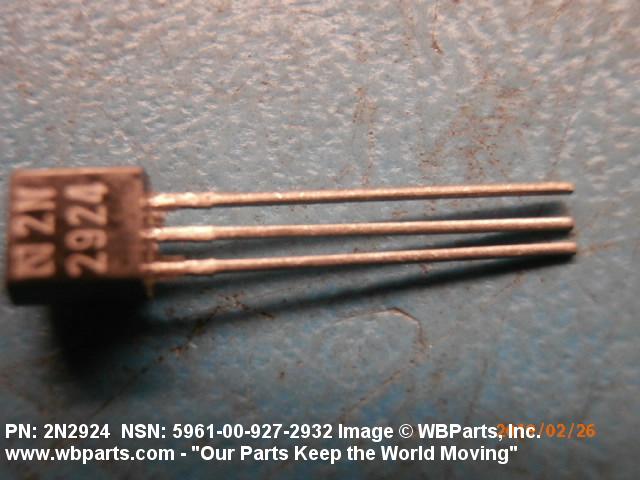

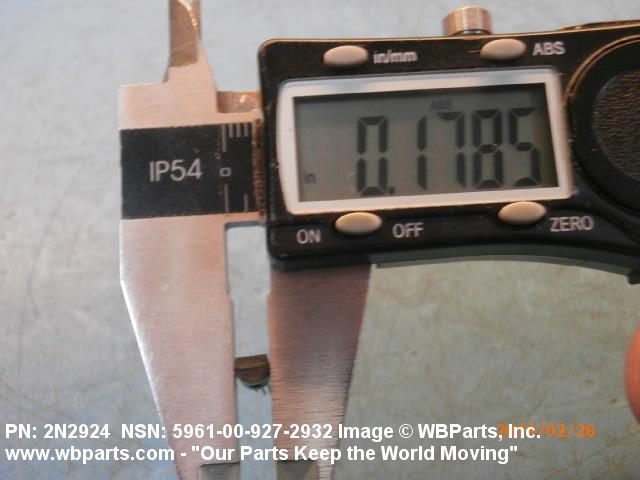

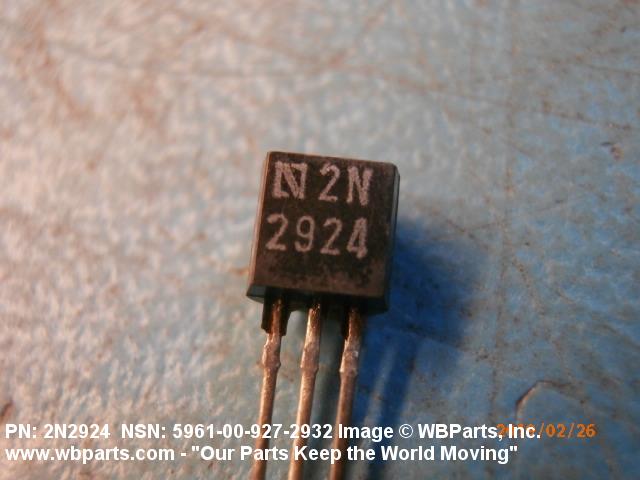

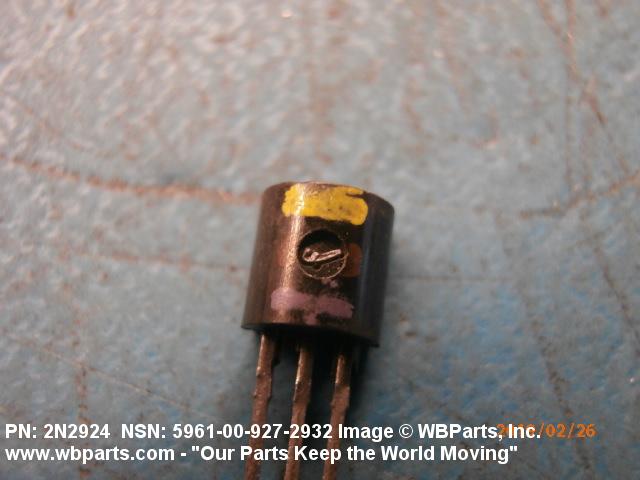

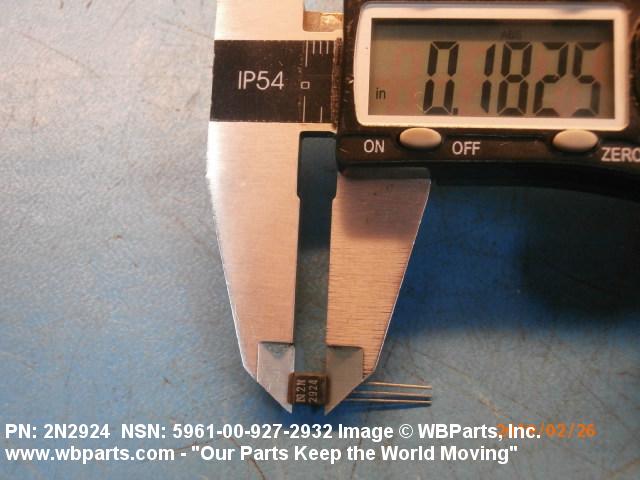

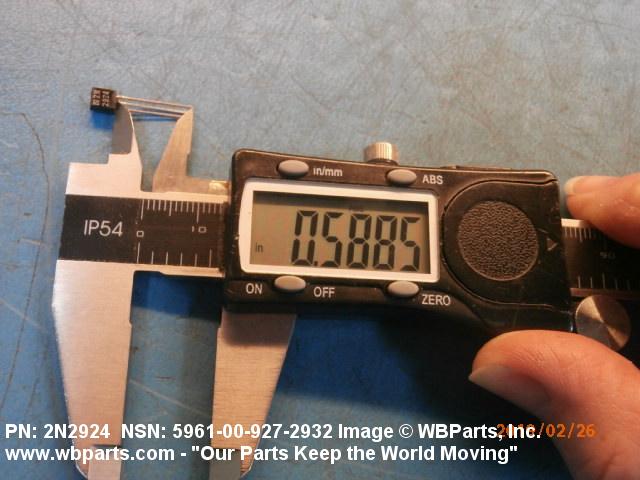

Drawings & Photos | NSN 5961-00-927-2932
Demand History | NSN 5961-00-927-2932
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5961-00-927-2932 | 2019-01-11 | 10 | Spain |
| 5961-00-927-2932 | 2018-10-303 | 10 | DIBBS |
| 5961-00-927-2932 | 2013-12-361 | 3 | DIBBS |
| 5961-00-927-2932 | 2013-12-346 | 3 | DIBBS |
| 5961-00-927-2932 | 2012-05-138 | 200 | DIBBS |
Cross Reference | NSN 5961-00-927-2932
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 007-0032-00 | 22373 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 084-20115-023 | 12131 | LH ENTERPRISE |
| 151-0154-00 | 80009 | TEKTRONIX, INC. DBA TEKTRONIX |
| 19J707496G1 | K6299 | MOTOROLA LTD |
| 2721-3630027 | 57953 | MOSELEY ASSOCIATES, INC. |
| 2N2924 | 03508 | GENERAL ELECTRIC CO SEMI-CONDUCTOR PRODUCTS DEPT |
| 2N2924 | 13606 | SPRAGUE ELECTRIC CO SOLID TANTALUM DIV |
| 2N2924 | 80131 | ELECTRONIC INDUSTRIES ASSOCIATION |
| 2N2924 | C7191 | ADELCO ELEKTRONIK GMBH |
| 2N2924 | K0577 | BRITISH SAROZAL LTD |
| 2N2924A | C7191 | ADELCO ELEKTRONIK GMBH |
| 4JX16A1336 | 03508 | GENERAL ELECTRIC CO SEMI-CONDUCTOR PRODUCTS DEPT |
| RELEASE4452 | 80131 | ELECTRONIC INDUSTRIES ASSOCIATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5961-00-927-2932
Related Products | NSN 5961-00-927-2932
Technical Data | NSN 5961-00-927-2932
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | SILICON |
| INTERNAL CONFIGURATION | JUNCTION CONTACT |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 25.0 MAXIMUM BREAKDOWN VOLTAGE, COLLECTOR-TO-BASE, EMITTER OPEN AND 25.0 MAXIMUM BREAKDOWN VOLTAGE, COLLECTOR-TO-EMITTER, BASE OPEN AND 5.0 MAXIMUM BREAKDOWN VOLTAGE, EMITTER-TO-BASE, COLLECTOR OPEN |
| CURRENT RATING PER CHARACTERISTIC | 100.00 MILLIAMPERES MAXIMUM COLLECTOR CURRENT, DC |
| POWER RATING PER CHARACTERISTIC | 200.0 MILLIWATTS MAXIMUM COLLECTOR POWER DISSIPATION |
| INCLOSURE MATERIAL | METAL |
| MOUNTING METHOD | TERMINAL |
| TERMINAL LENGTH | 0.500 INCHES MINIMUM |
| TERMINAL TYPE AND QUANTITY | 3 UNINSULATED WIRE LEAD |
| OVERALL LENGTH | 0.245 INCHES NOMINAL |
| OVERALL DIAMETER | 0.200 INCHES NOMINAL |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| SPECIAL FEATURES | JUNCTION PATTERN ARRANGEMENT: NPN |
| (NON-CORE DATA) SPECIFICATION/STANDARD DATA | 80131-RELEASE4452 PROFESSIONAL/INDUSTRIAL ASSOCIATION SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 5961-00-927-2932
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
