NSN 5961-01-141-9677 3N209, 01-141-9677, 011419677
Product Details | TRANSISTOR
5961-01-141-9677 An active semiconductor device with three or more electrodes. May or may not include mounting hardware and/or heatsink. Excludes SEMICONDUCTOR DEVICE, DIODE and SEMICONDUCTOR DEVICE, THYRISTOR. For solid state devices which are responsive to visible or infrared radiant energy, see SEMICONDUCTOR DEVICE, PHOTO.
Part Alternates: 3N209, 5961-01-141-9677, 01-141-9677, 5961011419677, 011419677
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 NOV 1982 | 01-141-9677 | 20588 ( TRANSISTOR ) |

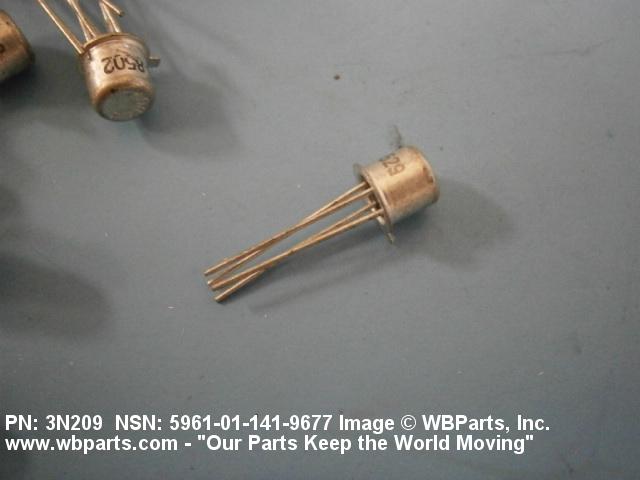

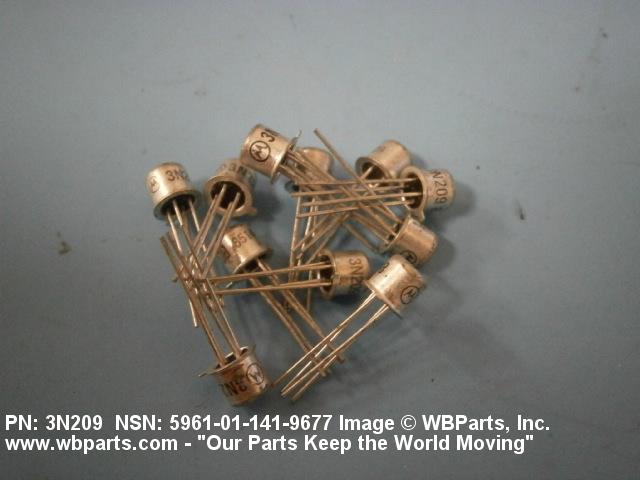

Drawings & Photos | NSN 5961-01-141-9677
Demand History | NSN 5961-01-141-9677
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5961-01-141-9677 | 2012-02-33 | 50 | United States |
Cross Reference | NSN 5961-01-141-9677
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3N209 | 04713 | FREESCALE SEMICONDUCTOR, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5961-01-141-9677
Technical Data | NSN 5961-01-141-9677
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | SILICON |
| INTERNAL CONFIGURATION | FIELD EFFECT-DUAL GATE |
| (NON-CORE DATA) CHANNEL POLARITY AND CONTROL TYPE | N-CHANNEL INSULATED GATE TYPE |
| CURRENT RATING PER CHARACTERISTIC | 25.00 MILLIAMPERES NOMINAL DRAIN CURRENT AND 30.00 MILLIAMPERES NOMINAL GATE CURRENT |
| POWER RATING PER CHARACTERISTIC | 300.0 MILLIWATTS MAXIMUM TOTAL DEVICE DISSIPATION |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 200.0 DEG CELSIUS CASE |
| INCLOSURE MATERIAL | METAL |
| MOUNTING METHOD | TERMINAL |
| TERMINAL LENGTH | 0.500 INCHES MINIMUM |
| TERMINAL CIRCLE DIAMETER | 0.016 INCHES MINIMUM |
| TERMINAL TYPE AND QUANTITY | 4 UNINSULATED WIRE LEAD |
| OVERALL LENGTH | 0.188 INCHES NOMINAL |
| OVERALL DIAMETER | 0.219 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | GENERAL APPLICATION ELECTRONICS (GEN-AP-E) |
Restrictions/Controls & Freight Information | NSN 5961-01-141-9677
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
