NSN 5961-01-203-8323 MD2219AF, SD2219AF, 10270662
Product Details | UNITIZED SEMICONDUCTOR DEVICES
5961-01-203-8323 Two or more discrete semiconductor devices such as diode(s) and/or transistor(s), permanently cased, encapsulated, or potted together to form an inseparable unit. Excludes devices having one or more components other than semiconductor devices. The individually distinct devices forming the unit may be internally connected. The unit in itself does not perform a complete specific function and cannot be assigned a more definite item name. It may include or consist of inseparable matched pairs. May or may not include mounting hardware and/or heatsink. For interconnected items arranged in stack(s), see RECTIFIER, SEMICONDUCTOR DEVICE. For items formed on or within a semiconductor material substrate, formed on an insulating substrate or formed on a combination of both of these types, see MICROCIRCUIT (as modified). Excludes NETWORK (as modified); ABSORBER, OVERVOLTAGE; SEMICONDUCTOR DEVICE SET; and SEMICONDUCTOR DEVICE ASSEMBLY. Do not use if more specific name applies.
Part Alternates: MD2219AF, SD2219AF, 10270662, 2N3518, 5961-01-203-8323, 01-203-8323, 5961012038323, 012038323
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 MAR 1985 | 01-203-8323 | 61962 ( SEMICONDUCTOR DEVICES, UNITIZED ) |

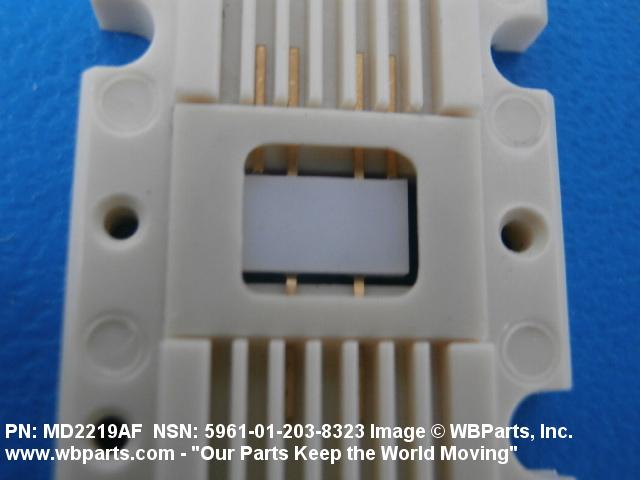

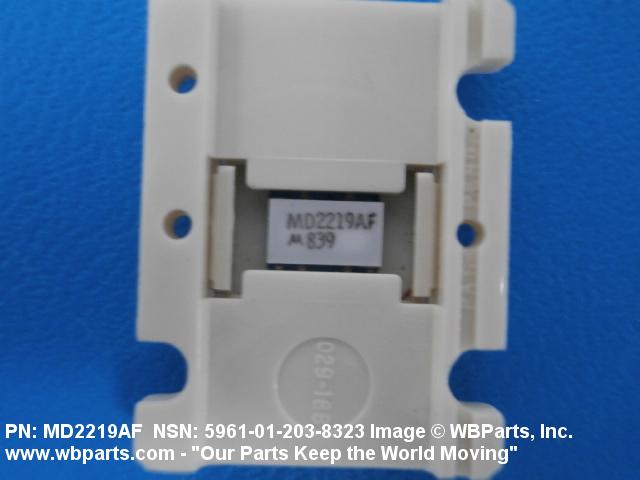

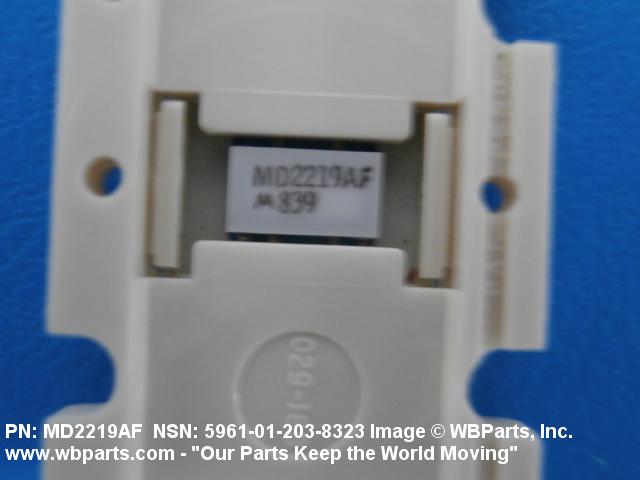

Drawings & Photos | NSN 5961-01-203-8323
Demand History | NSN 5961-01-203-8323
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MD2219AF | 2022-01-20 | 1 | Greece |
| 5961-01-203-8323 | 2015-07-196 | 22 | DIBBS |
| 5961-01-203-8323 | 2015-06-172 | 22 | DIBBS |
| 10270662 | 2014-01-08 | 5 | United States |
| MD2219AF | 2014-01-08 | 5 | United States |
| 5961-01-203-8323 | 2010-02-40 | 67 | DIBBS |
Cross Reference | NSN 5961-01-203-8323
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10270662 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10270662 | 31338 | SEMITRONICS CORP |
| 10270662 | 43611 | MICROSEMI CORP. - MASSACHUSETTS DBA MICROSEMI-LAWRENCE |
| 2N3518 | 04713 | FREESCALE SEMICONDUCTOR, INC. |
| MD2219AF | 04713 | FREESCALE SEMICONDUCTOR, INC. |
| SD2219AF | 34156 | FALKOR PARTNERS, LLC DBA SEMICOA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5961-01-203-8323
Technical Data | NSN 5961-01-203-8323
| Characteristic | Specifications |
|---|---|
| COMPONENT NAME AND QUANTITY | 2 TRANSISTOR |
| SEMICONDUCTOR MATERIAL | SILICON ALL TRANSISTOR |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 75.0 MAXIMUM COLLECTOR TO BASE VOLTAGE, DC AND 50.0 MAXIMUM COLLECTOR-TO-EMITTER, SUBSTAINING VOLTAGE, BASE OPEN-CIRCUITED AND 6.0 MAXIMUM EMITTER TO BASE VOLTAGE, STATIC, COLLECTOR OPEN ALL TRANSISTOR |
| CURRENT RATING PER CHARACTERISTIC | 800.00 MILLIAMPERES NOMINAL COLLECTOR CURRENT, DC ALL TRANSISTOR |
| INCLOSURE MATERIAL | PLASTIC |
| MOUNTING METHOD | TERMINAL |
| TERMINAL LENGTH | 0.176 INCHES NOMINAL |
| TERMINAL CIRCLE DIAMETER | 0.019 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 6 UNINSULATED WIRE LEAD |
| OVERALL LENGTH | 0.240 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.030 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |
| OVERALL WIDTH | 0.120 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |
| SPECIAL FEATURES | ALL TRANSISTOR JUNCTION PATTERN ARRANGEMENT: NPN |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 10270662 |
Restrictions/Controls & Freight Information | NSN 5961-01-203-8323
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5961-01-203-8323
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
