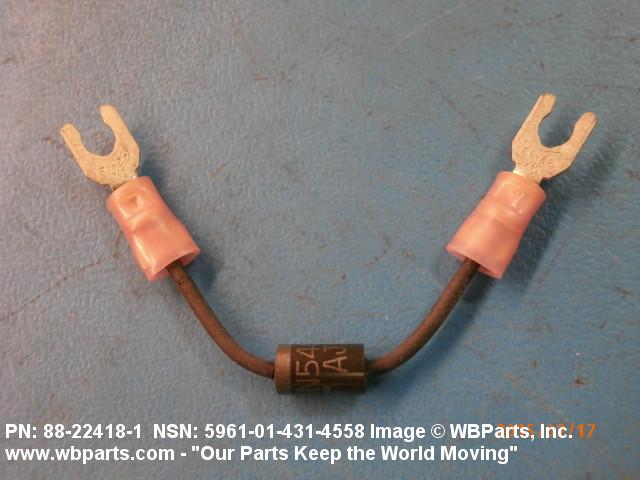

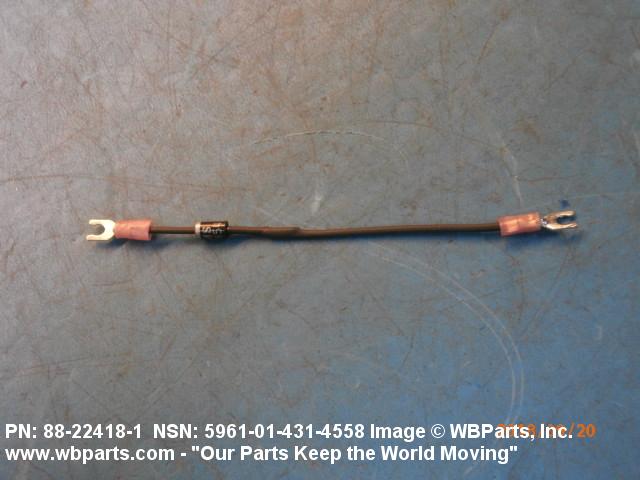

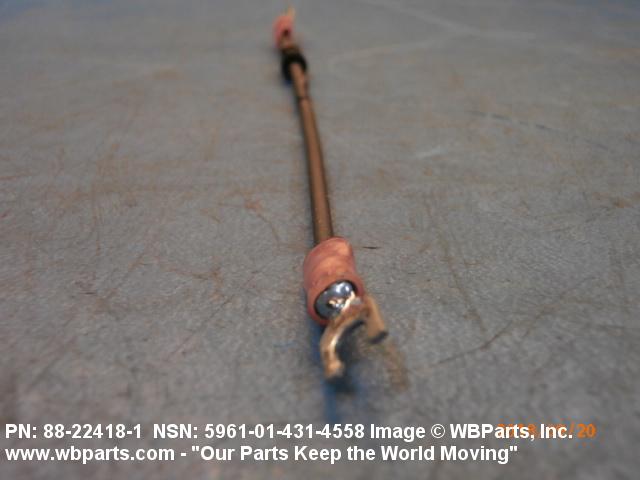

5961-01-431-4558 - SEMICONDUCTOR DEVICE ASSEMBLY, 88224181, 88-22418-1, 01-431-4558

Product Details | SEMICONDUCTOR DEVICE ASSEMBLY

5961-01-431-4558 A grouping of two or more semiconducting devices such as LIGHT EMITTING DIODE; SEMICONDUCTOR DEVICE, DIODE; SEMICONDUCTOR DEVICE, PHOTO; SEMICONDUCTOR DEVICE, THYRISTOR; and/or TRANSISTOR mounted on a common mounting or mounted on each other. The devices must be separable and each item must be capable of functioning in accordance with its given name. For assemblies consisting of semiconducting devices permanently cased, encapsulated, or potted together to form a single unit, see RECTIFIER, SEMICONDUCTOR DEVICE, UNITIZED and SEMICONDUCTOR DEVICES, UNITIZED. Excludes SEMICONDUCTOR DEVICE SET; MICROCIRCUIT ASSEMBLY; and MICROCIRCUIT SET. See also ABSORBER, OVERVOLTAGE.20359610045Semiconductor Devices and Associated Hardware59800046Optoelectronic Devices and Associated Hardware60300019Fiber Optic Devices

Part Alternates: 88224181, 88-22418-1, 5961-01-431-4558, 01-431-4558, 5961014314558, 014314558

Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	13 MAY 1996	01-431-4558	35565 ( SEMICONDUCTOR DEVICE ASSEMBLY )
