NSN 5961-01-451-7460 MRF157, 01-451-7460, 014517460
Product Details | TRANSISTOR
5961-01-451-7460 An active semiconductor device with three or more electrodes. May or may not include mounting hardware and/or heatsink. Excludes SEMICONDUCTOR DEVICE, DIODE and SEMICONDUCTOR DEVICE, THYRISTOR. For solid state devices which are responsive to visible or infrared radiant energy, see SEMICONDUCTOR DEVICE, PHOTO.
Part Alternates: MRF157, 5961-01-451-7460, 01-451-7460, 5961014517460, 014517460
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 DEC 1997 | 01-451-7460 | 20588 ( TRANSISTOR ) |

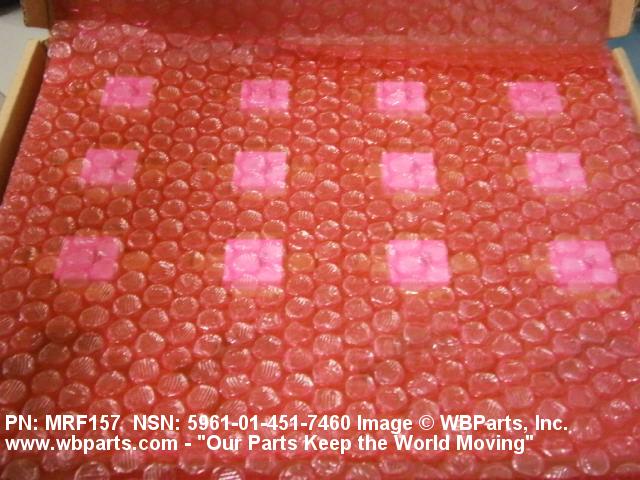

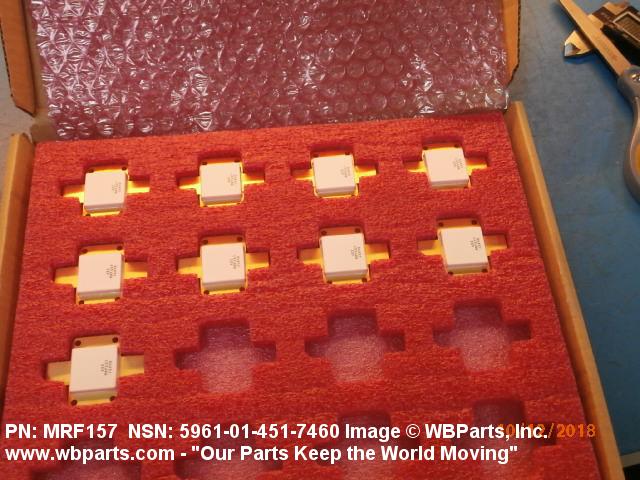

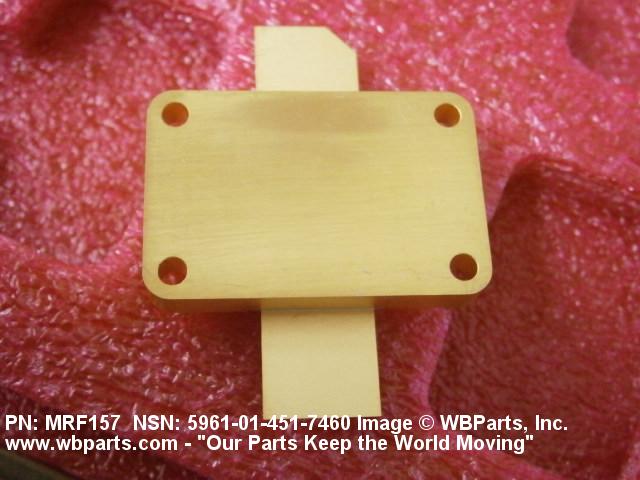

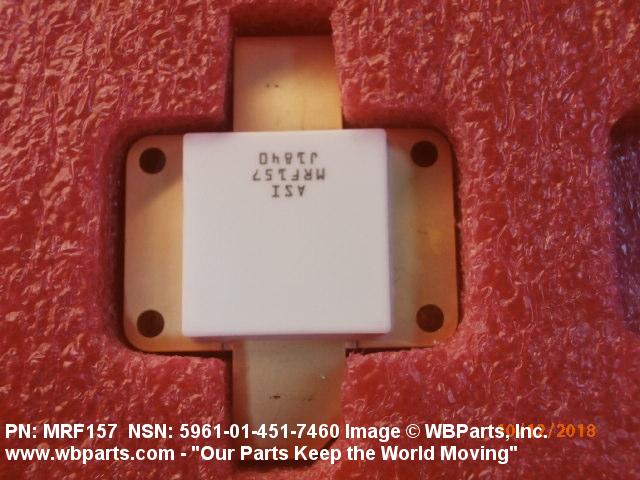

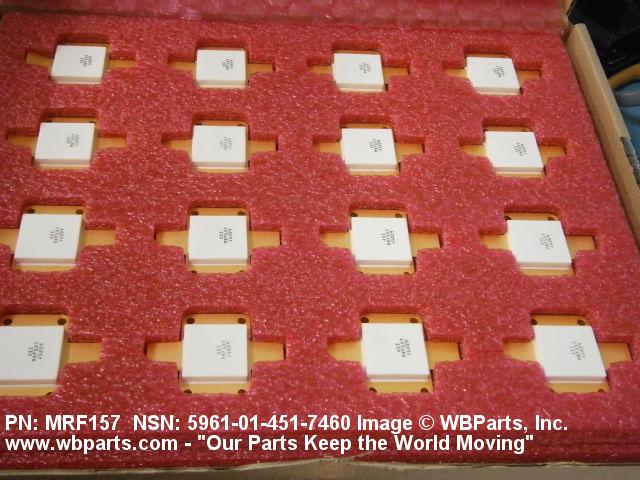

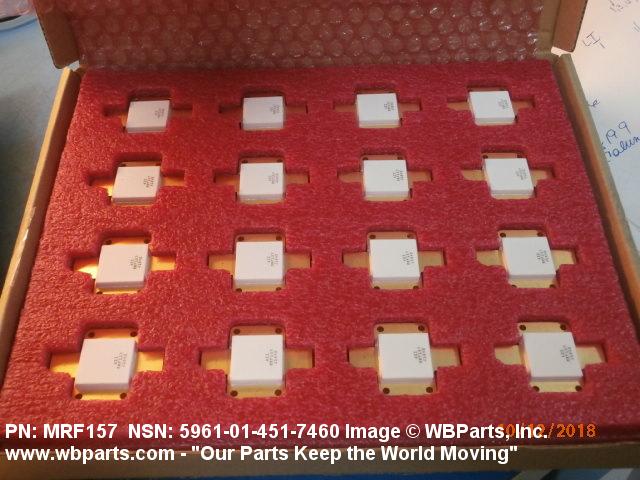

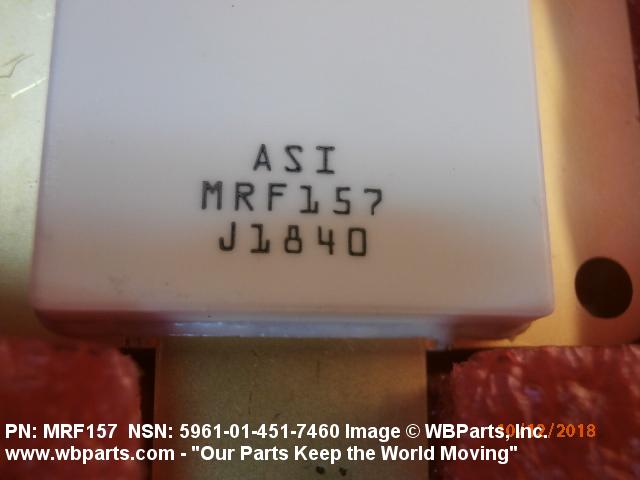

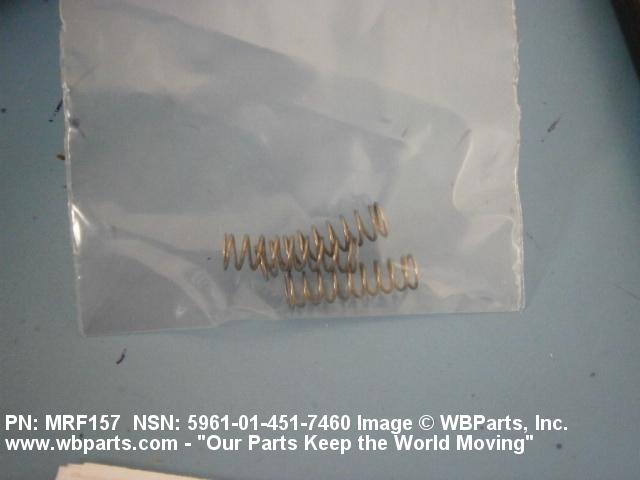

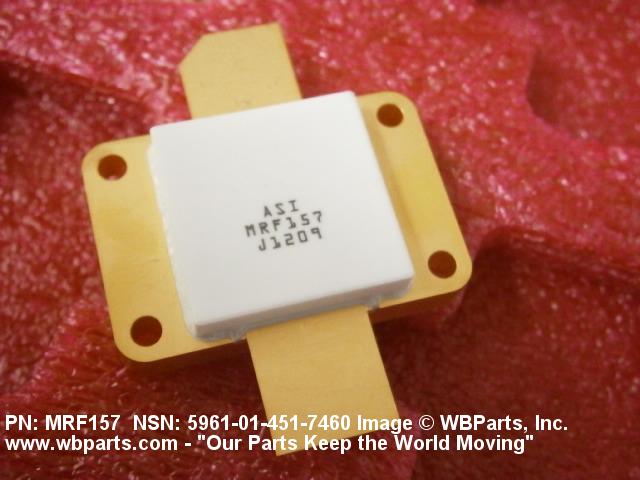

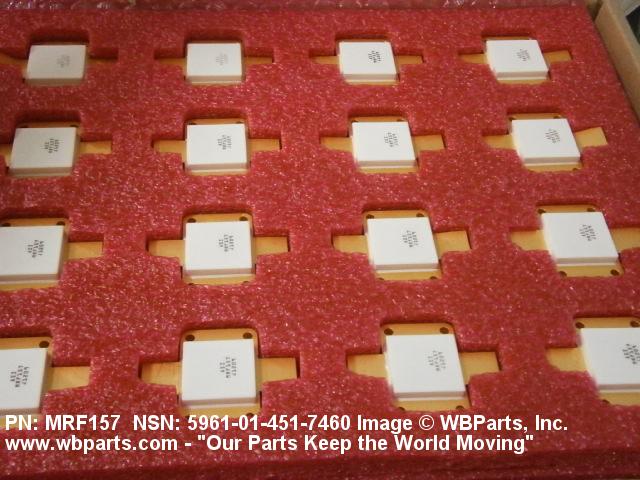

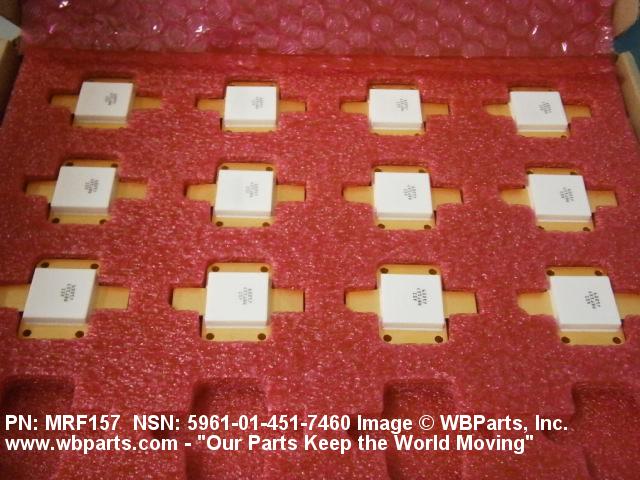

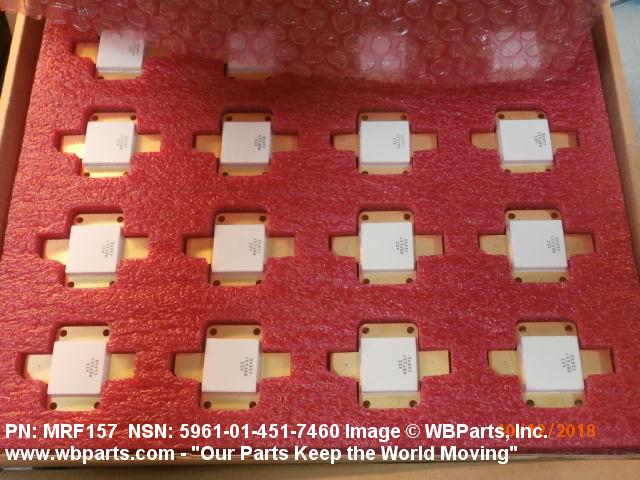

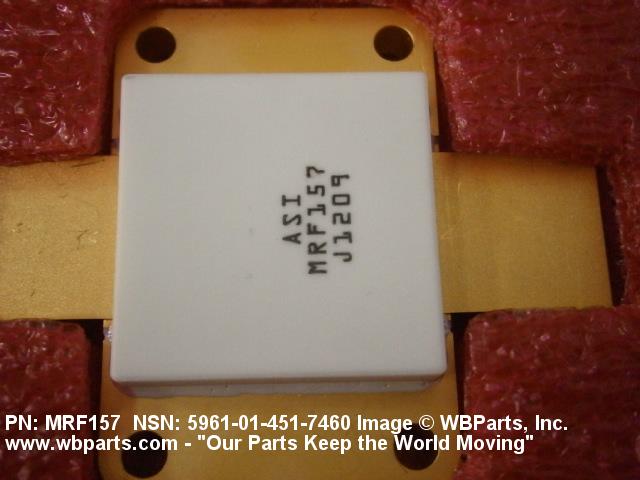

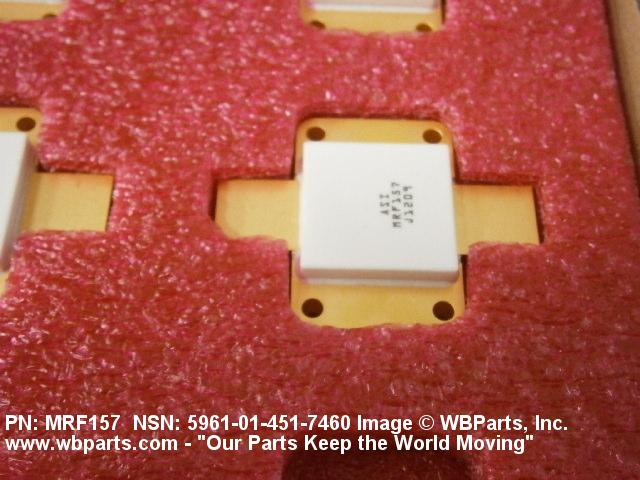

Drawings & Photos | NSN 5961-01-451-7460
Demand History | NSN 5961-01-451-7460
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5961-01-451-7460 | 2018-08-235 | 63 | United States |
| 5961-01-451-7460 | 2017-11-325 | 52 | United States |
| 5961-01-451-7460 | 2011-05-139 | 44 | United States |
Cross Reference | NSN 5961-01-451-7460
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MRF157 | 04713 | FREESCALE SEMICONDUCTOR, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5961-01-451-7460
Technical Data | NSN 5961-01-451-7460
| Characteristic | Specifications |
|---|---|
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 40.0 MAXIMUM GATE TO SOURCE VOLTAGE |
| CURRENT RATING PER CHARACTERISTIC | 60.00 AMPERES MAXIMUM DRAIN CURRENT |
| JOINT ELECTRONIC DEVICE ENGINEERING COUNCIL/JEDEC/CASE OUTLINE DESIGNATION | 368-03, STYLE 2 |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 4 |
Restrictions/Controls & Freight Information | NSN 5961-01-451-7460
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
