NSN 5961-01-475-9198 CTJ420E005, 01-475-9198, 014759198
Product Details | UNITIZED SEMICONDUCTOR DEVICES
5961-01-475-9198 Two or more discrete semiconductor devices such as diode(s) and/or transistor(s), permanently cased, encapsulated, or potted together to form an inseparable unit. Excludes devices having one or more components other than semiconductor devices. The individually distinct devices forming the unit may be internally connected. The unit in itself does not perform a complete specific function and cannot be assigned a more definite item name. It may include or consist of inseparable matched pairs. May or may not include mounting hardware and/or heatsink. For interconnected items arranged in stack(s), see RECTIFIER, SEMICONDUCTOR DEVICE. For items formed on or within a semiconductor material substrate, formed on an insulating substrate or formed on a combination of both of these types, see MICROCIRCUIT (as modified). Excludes NETWORK (as modified); ABSORBER, OVERVOLTAGE; SEMICONDUCTOR DEVICE SET; and SEMICONDUCTOR DEVICE ASSEMBLY. Do not use if more specific name applies.
Part Alternates: CTJ420E005, 5961-01-475-9198, 01-475-9198, 5961014759198, 014759198
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 JUN 2000 | 01-475-9198 | 61962 ( SEMICONDUCTOR DEVICES, UNITIZED ) |

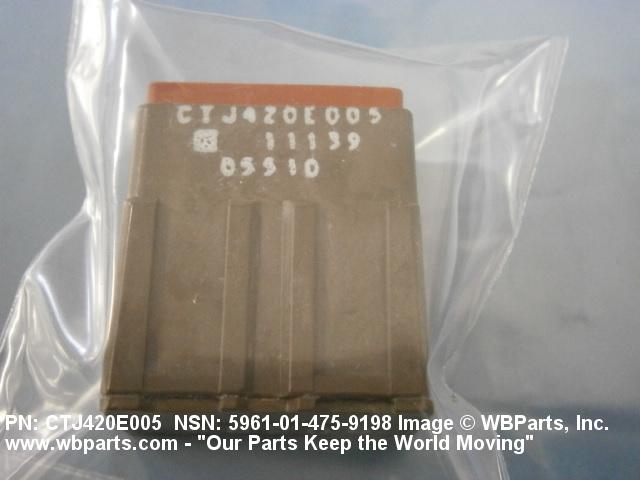

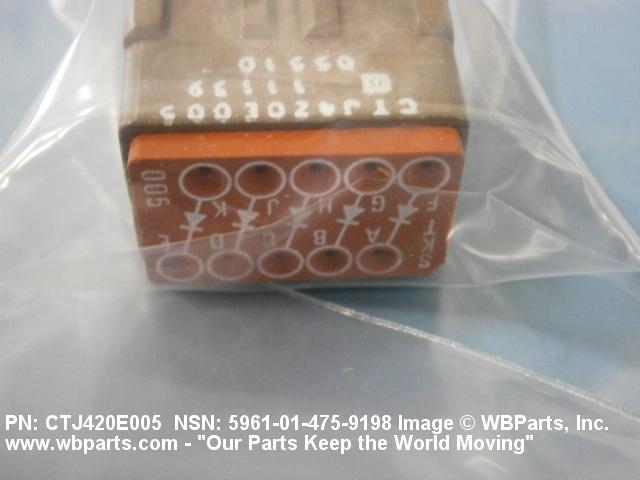

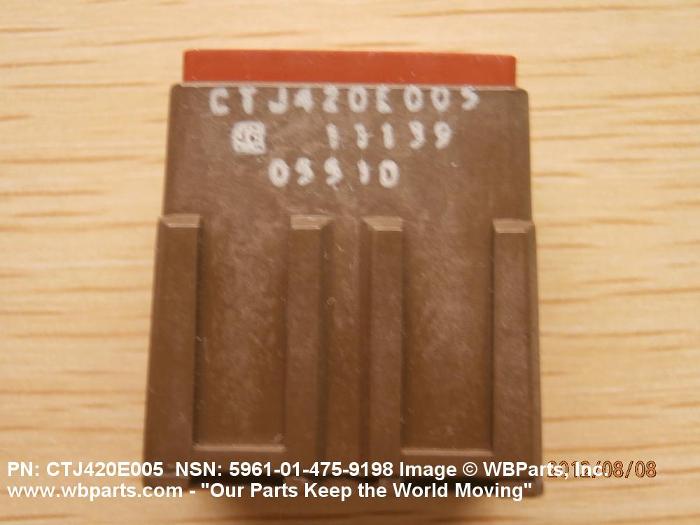

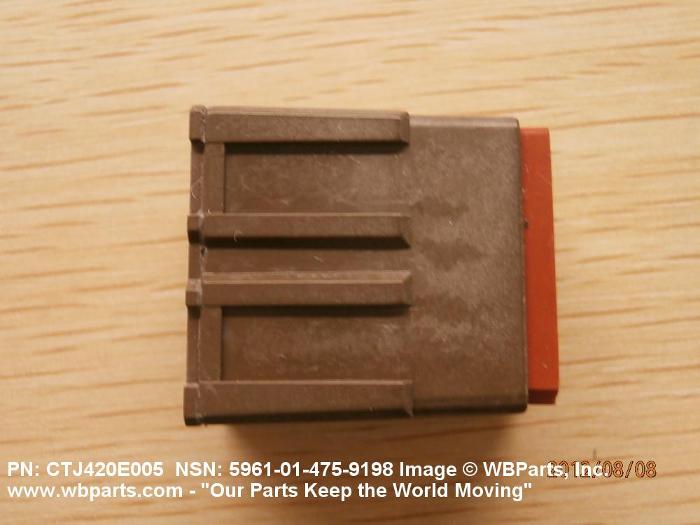

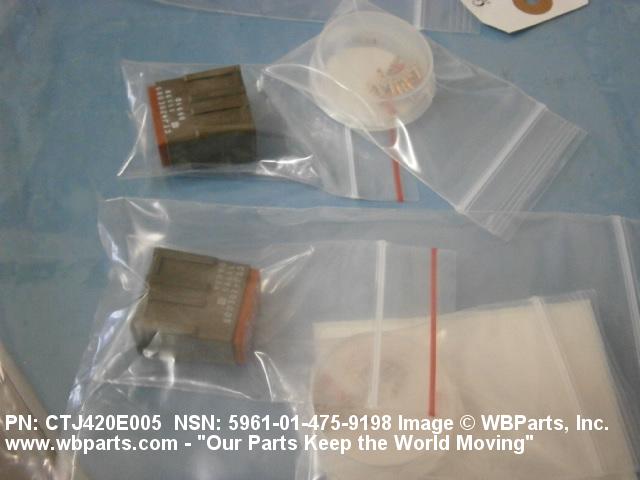

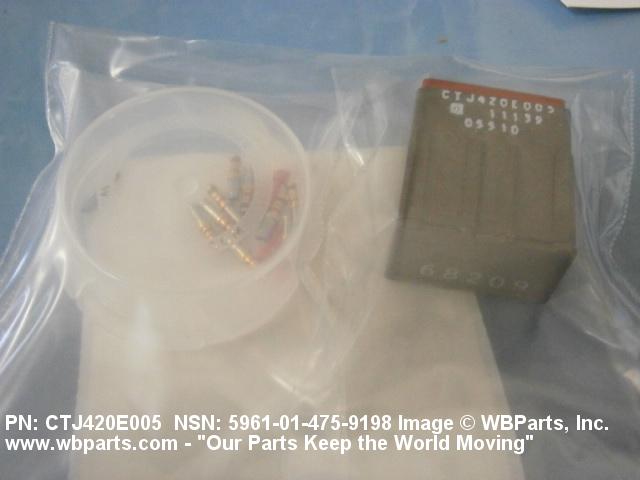

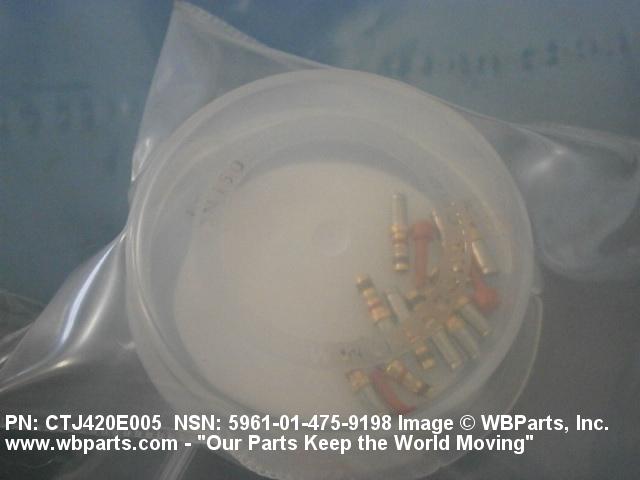

Drawings & Photos | NSN 5961-01-475-9198
Demand History | NSN 5961-01-475-9198
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CTJ420E005 | 2013-09-260 | 1 | France |
| CTJ420E005 | 2013-09-260 | 10 | France |
| CTJ420E005 | 2012-07-198 | 3 | France |
| 5961-01-475-9198 | 2011-11-306 | 2 | France |
| 5961-01-475-9198 | 2011-09-248 | 12 | DIBBS |
| 5961-01-475-9198 | 2010-05-147 | 2 | DIBBS |
| CTJ420E005 | 2009-04-92 | 75 | US |
| CTJ420E005 | 2009-02-36 | 6 | US |
| CTJ420E005 | 2008-04-119 | 12 | US |
Cross Reference | NSN 5961-01-475-9198
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CTJ420E005 | 11139 | DEUTSCH ENGINEERED CONNECTING DEVICES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5961-01-475-9198
Technical Data | NSN 5961-01-475-9198
| Characteristic | Specifications |
|---|---|
| COMPONENT NAME AND QUANTITY | 5 SEMICONDUCTOR DEVICE DIODE |
| SEMICONDUCTOR MATERIAL | SILICON ALL SEMICONDUCTOR DEVICE DIODE |
| TERMINAL TYPE AND QUANTITY | 10 UNINSULATED WIRE LEAD |
| OVERALL LENGTH | 0.990 INCHES MINIMUM AND 1.050 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.170 INCHES MAXIMUM |
| OVERALL WIDTH | 0.557 INCHES MINIMUM AND 0.687 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5961-01-475-9198
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | ZH | Republic of Korea ZJ ZK |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5961-01-475-9198
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
