NSN 5962-00-348-2541 M38510/00205BC, M38510/00205BCB, M38510/00207BCB
Product Details | DIGITAL MICROCIRCUIT
5962-00-348-2541 A microcircuit specifically designed to generate, modify, or process electrical signals which operate with two distinct or binary states. These states are commonly referred to as on and off, true and false, high and low, or "1" and "0".
Part Alternates: M38510/00205BC, M38510/00205BCB, M38510/00207BCB, M3851000205BC, M3851000205BCB, M3851000207BCB, M5018, M50-18, M50270, M50-270, M7474F, MC5474DCXS, AP10607474, AP106074-74, AP10607474M, AP106074-74M, SN35746, SN5474J10, SN5474N10, SN7474A, SN7474AN, SN7474J00, SN7474N/P3, SN7474NP3, SN7474PC, SN74LS74N10P1, SNM5474J, U9A9N7459X, MIL-M-38510/2, MILM385102, P17002148, QT35474BA, DEC7474, DM7474D, DM7474J, DMS 81100B, DMS81100B, ES48TTL7474, ES48TTL-7474, ES590000205BCB, ES5900-00205BCB, F7474PC, F-7474PC, G0005038, G000503-8, JM38510/00205BCA, JM38510/00205BCB, JM38510/00205BCX, JM3851000205BCA, JM3851000205BCB, JM3851000205BCX, 131000-001, 51007-0028, 538824, 5474DMQC, 5940351, 594035-1, 59623800205BCB, 5962-3800205BCB, 71005711, 7100571-1, 7474, 7474J, 7474N, 8000747400, 8000-74-7400, 01-49018-67, 02500130, 025-00130, 0469700064, 046-97-00064, 058001111022, 058-001111-022, 0906342, 10135845, 10139, 10337301, 103373-01, 1049791, 104979-1, 10497911, 1049791-1, 156-0041-00, 17007011, 1710774, 171-0774, 17572298, 1757-2298, 20074123, 23871631, 2387163-1, 23872381, 2387238-1, 310094P1, 3157474, 315-7474, 354747401001, 35474740-1001, 4030263605, 4030263-605, 4035604, 403560-4, 4037249, 403724-9, 4770672029, 477-0672-029, 807474-646, 9209033, 920903-3, 92136002, 92136-002, 96744156, 99000132001, 99000132-001, 5962-00-348-2541, 00-348-2541, 5962003482541, 014901867, 156004100, 807474646, 510070028, 131000001, 003482541
Electrical and Electronic Equipment Components | Microcircuits, Electronic
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 JAN 1974 | 00-348-2541 | 31779 ( MICROCIRCUIT, DIGITAL ) |

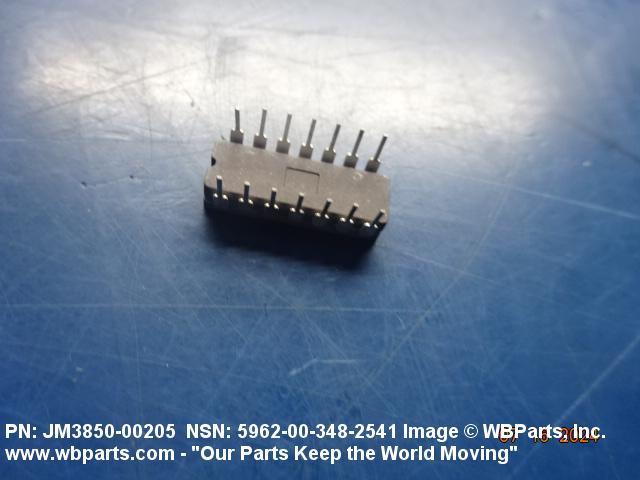

Drawings & Photos | NSN 5962-00-348-2541
Demand History | NSN 5962-00-348-2541
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5962-00-348-2541 | 2024-07-192 | 16 | United States |
| 5962-00-348-2541 | 2024-04-120 | 16 | United States |
| MILM385102 | 2013-12-347 | 2 | United States |
| 5962-00-348-2541 | 2012-03-82 | 50 | MANUAL |
| M38510/00205BCB | 2011-09-263 | 2 | United States |
Cross Reference | NSN 5962-00-348-2541
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01-49018-67 | 53908 | COMPUTER AUTOMATION INC |
| 025-00130 | 14031 | DIGITECH INDUSTRIES INC |
| 046-97-00064 | 06141 | L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION |
| 058-001111-022 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 0906342 | K1182 | THALES UK LIMITED DBA THALES UK LTDTRAINING AND SIMULATION |
| 0906342 | K5331 | SINGER LINK-MILES LTD |
| 10139 | 51553 | XEROX CORP |
| 103373-01 | 14345 | ROLM CORP MIL SPEC COMPUTERS |
| 104979-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 1049791-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 131000-001 | 91417 | HARRIS CORPORATION DBA GOVERNMENT COMMUNICATIONS |
| 156-0041-00 | 80009 | TEKTRONIX, INC. DBA TEKTRONIX |
| 17007011 | 95750 | AERONAUTICAL INSTRUMENT AND RADIO COMPANY, THE |
| 171-0774 | 54817 | AUTEK SYSTEMS CORP |
| 1757-2298 | 08241 | LOCKHEED MARTIN CORP LOCKHEED MARTIN MISSION SYSTEMS |
| 20074123 | 65960 | SCIENCE APPLICATIONS INTL CORP RANGE SYSTEMS |
| 2387163-1 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| 2387238-1 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| 310094P1 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 315-7474 | 54193 | DATA I/O CORPORATION |
| 35474740-1001 | 50163 | GENICOM CORP |
| 4030263-605 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 403560-4 | 12909 | CARDION INC |
| 403724-9 | 12909 | CARDION INC |
| 477-0672-029 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 51007-0028 | 27914 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 538824 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 5474DMQC | 07263 | FAIRCHILD SEMICONDUCTOR CORP |
| 594035-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 5962-3800205BCB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 7100571-1 | 10236 | ELECTRODYNAMICS, INC. DBA L-3 COMMUNICATIONS |
| 7474 | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| 7474J | 07263 | FAIRCHILD SEMICONDUCTOR CORP |
| 7474N | 18324 | PHILIPS SEMICONDUCTORS INC |
| 8000-74-7400 | 23338 | WAVETEK U S INC DIV OF WAVETEK CORP |
| 807474-646 | 53938 | EVANS & SUTHERLAND COMPUTER CORPORATION |
| 920903-3 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 92136-002 | 51186 | CENTURY DATA SYSTEMS |
| 96744156 | 59661 | SYNTEGRA / USA/ INC COMPUTER PARTS AND SUPPLIES |
| 99000132-001 | 94580 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| AP106074-74 | 34309 | GIORDANO ASSOCIATES INC |
| AP106074-74M | 34309 | GIORDANO ASSOCIATES INC |
| DEC7474 | 15476 | COMPAQ FEDERAL LLC |
| DM7474D | 27014 | NATIONAL SEMICONDUCTOR CORPORATION |
| DM7474J | 12040 | NATIONAL SEMICONDUCTOR CORP |
| DMS 81100B | 16236 | DLA LAND AND MARITIME |
| ES48TTL-7474 | 57230 | GOULD INC SIMULATION SYSTEMS DIV |
| ES5900-00205BCB | 20418 | DRS SUSTAINMENT SYSTEMS, INC. Use CAGE Code 98255 for cataloging |
| F-7474PC | 07263 | FAIRCHILD SEMICONDUCTOR CORP |
| G000503-8 | 24930 | EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA |
| JM38510/00205BCA | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| JM38510/00205BCB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| JM38510/00205BCX | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M38510/00205BC | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M38510/00205BCB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M38510/00207BCB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M50-18 | 54418 | MILTOPE CORPORATION |
| M50-270 | 54418 | MILTOPE CORPORATION |
| M7474F | 04713 | FREESCALE SEMICONDUCTOR, INC. |
| MC5474DCXS | 04713 | FREESCALE SEMICONDUCTOR, INC. |
| MIL-M-38510/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| P17002148 | 56762 | WESTERN PERIPHERALS INC DIV OF WESPERCORP |
| QT35474BA | 07263 | FAIRCHILD SEMICONDUCTOR CORP |
| SN35746 | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SN5474J10 | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SN5474N10 | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SN7474A | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SN7474AN | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SN7474J00 | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SN7474N/P3 | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SN7474PC | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SN74LS74N10P1 | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SNM5474J | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| U9A9N7459X | 07263 | FAIRCHILD SEMICONDUCTOR CORP |
