NSN 5962-01-193-5862 MPD20725W, SNC54173W, SNC54173W00
Product Details | DIGITAL MICROCIRCUIT
5962-01-193-5862 A microcircuit specifically designed to generate, modify, or process electrical signals which operate with two distinct or binary states. These states are commonly referred to as on and off, true and false, high and low, or "1" and "0".
Part Alternates: MPD20725W, SNC54173W, SNC54173W00, SNC54173W-00, SNJ54173W, SNM74173W, DM54173W/B , DM54173WB, 60888151, 6088815-1, 100A3461, 100A346-1, 5962-01-193-5862, 01-193-5862, 5962011935862, 011935862
Electrical and Electronic Equipment Components | Microcircuits, Electronic
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 NOV 1984 | 01-193-5862 | 31779 ( MICROCIRCUIT, DIGITAL ) |

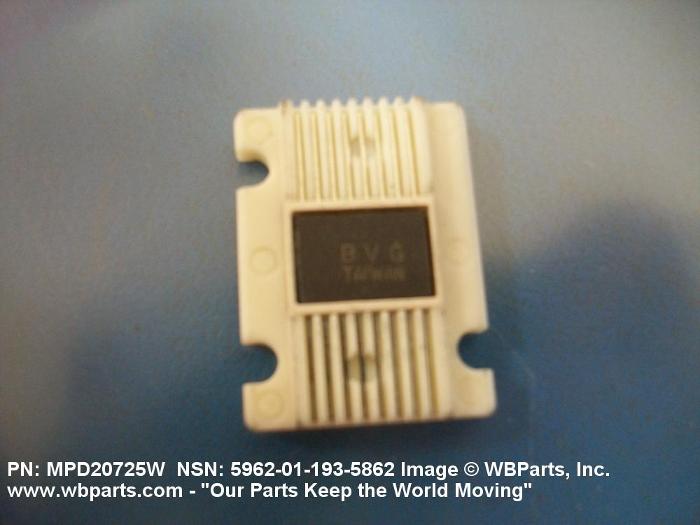

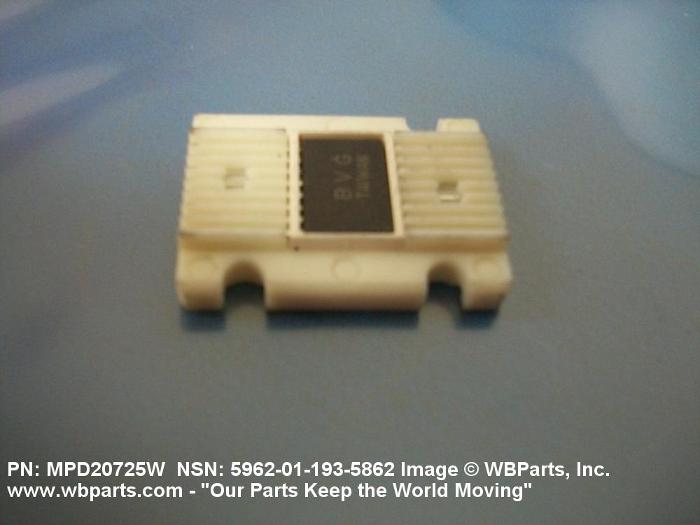

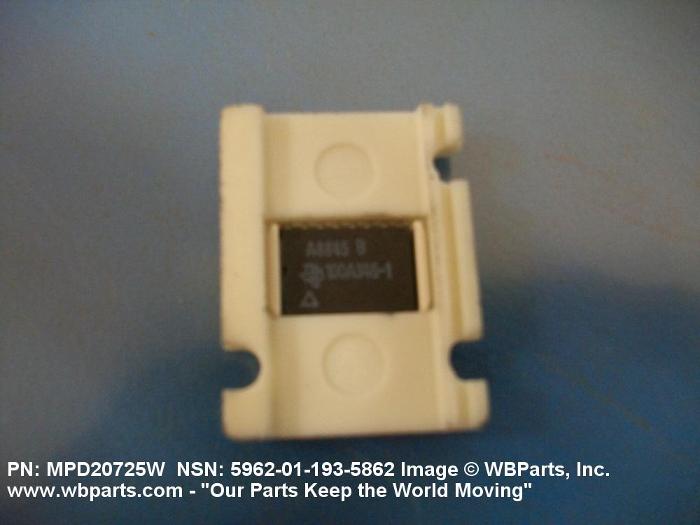

Drawings & Photos | NSN 5962-01-193-5862
Demand History | NSN 5962-01-193-5862
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5962-01-193-5862 | 2011-08-227 | 0 | United States |
| 5962-01-193-5862 | 2011-06-175 | 60 | DIBBS |
| 5962-01-193-5862 | 2011-05-126 | 100 | DIBBS |
| 5962-01-193-5862 | 2009-01-06 | 58 | DIBBS |
| 5962-01-193-5862 | 2008-08-224 | 38 | DIBBS |
| 5962-01-193-5862 | 2008-07-205 | 12 | DIBBS |
| 5962-01-193-5862 | 2008-06-165 | 10 | DIBBS |
| 5962-01-193-5862 | 2008-06-164 | 8 | DIBBS |
Cross Reference | NSN 5962-01-193-5862
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100A346-1 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 100A346-1 | 52088 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 6088815-1 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| DM54173W/B | 3V146 | ROCHESTER ELECTRONICS, LLC |
| MPD20725W | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SNC54173W | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SNC54173W-00 | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SNJ54173W | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SNM74173W | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5962-01-193-5862
Related Products | NSN 5962-01-193-5862
Technical Data | NSN 5962-01-193-5862
| Characteristic | Specifications |
|---|---|
| OUTPUT LOGIC FORM | TRANSISTOR-TRANSISTOR LOGIC |
| DESIGN FUNCTION AND QUANTITY | 1 REGISTER, D-TYPE |
| INPUT CIRCUIT PATTERN | 14 INPUT |
| (NON-CORE DATA) BIT QUANTITY | 4 |
| VOLTAGE RATING AND TYPE PER CHARACTERISTIC | 7.0 VOLTS MAXIMUM POWER SOURCE |
| OPERATING TEMP RANGE | -55.0 TO 125.0 DEG CELSIUS |
| TERMINAL TYPE AND QUANTITY | 16 FLAT LEADS |
| TERMINAL SURFACE TREATMENT | SOLDER |
| INCLOSURE CONFIGURATION | FLAT PACK |
| INCLOSURE MATERIAL | CERAMIC |
| BODY LENGTH | 0.371 INCHES MINIMUM AND 0.400 INCHES MAXIMUM |
| BODY HEIGHT | 0.050 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| BODY WIDTH | 0.285 INCHES MAXIMUM |
| STORAGE TEMP RANGE | -65.0 TO 150.0 DEG CELSIUS |
| FEATURES PROVIDED | W/CLOCK AND W/CLEAR AND ELECTROSTATIC SENSITIVE |
| TEST DATA DOCUMENT | 96906-MIL-STD-883 STANDARD |
Restrictions/Controls & Freight Information | NSN 5962-01-193-5862
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5962-01-193-5862
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
