NSN 5965-00-097-7649 00-097-7649, 000977649
Product Details | DYNAMIC MICROPHONE
5965-00-097-7649 A microphone which depends for its operation upon the generation of an electromotive force by the motion of a moving coil within a magnetic field.
Part Alternates: 5965-00-097-7649, 00-097-7649, 5965000977649, 000977649
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-097-7649 | 00362 ( MICROPHONE, DYNAMIC ) |

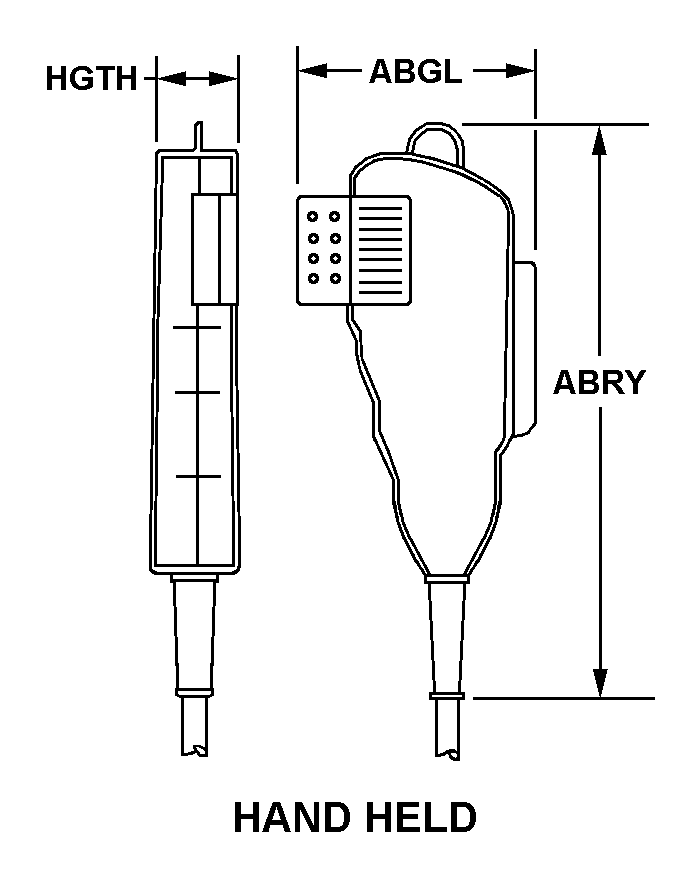

Drawings & Photos | NSN 5965-00-097-7649
Cross Reference | NSN 5965-00-097-7649
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 271-1060MICROPHONET500 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| 600-8945 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| 600DHIZ | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| 600DSPECN0163 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| 600EHIZ | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| 81A088 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 81B079 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 8217 | 87771 | UNIVERSITY SOUND INC AFFIL OF MARK IV INDUSTRIES INC |
| D501-9 | 72653 | GC/WALDOM INC |
| G360645 | 3B4M0 | LUCENT TECHNOLOGIES INC CORPORATE HEADQUARTERS |
| M-105/U | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| T50 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| T50 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| US600EL W/9244 TRANSFORMER | 28856 | TELEX COMMUNICATIONS INC SUB OF TELEX CORP |
| US600EL WITH TRANSFORMER 502CP | 87771 | UNIVERSITY SOUND INC AFFIL OF MARK IV INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5965-00-097-7649
Technical Data | NSN 5965-00-097-7649
| Characteristic | Specifications |
|---|---|
| FREQUENCY RESPONSE RANGE IN HERTZ | 100.0 TO 7000.0 |
| IMPEDANCE SELECTION METHOD | INTEGRAL SWITCH |
| POLARITY CONNECTION | NOT REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | SEMIDIRECTIONAL |
| NOISE CANCELING FEATURE | INCLUDED |
| SUPPORT STAND | NOT INCLUDED |
| SHOCK MOUNT | NOT PROVIDED |
| MOUNTING METHOD | CLIP |
| ELECTRICAL CONNECTION TYPE | INTEGRAL CABLE |
| ACCESSORY COMPONENTS | CONNECTOR |
| EXTENDED CABLE LENGTH | 6.0 FEET NOMINAL |
| RETRACTED CABLE LENGTH | 0.1 FEET NOMINAL |
| CABLE CONDUCTOR QUANTITY | 3 |
| CABLE SHIELDED CONDUCTOR QUANTITY | 3 |
| SWITCH TYPE | PUSH |
| BODY STYLE | 21 HAND HELD |
| WIDTH | 2.688 INCHES NOMINAL |
| LENGTH | 3.875 INCHES NOMINAL |
| HEIGHT | 1.782 INCHES NOMINAL |
| MANUFACTURERS CODE | 81134 |
| DESIGN CONTROL REFERENCE | 600EHIZ |
Restrictions/Controls & Freight Information | NSN 5965-00-097-7649
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
