NSN 5965-00-232-4643 NT49188A, NT-49188A, LS-103B/TIQ-2
Product Details | PERMANENT MAGNET LOUDSPEAKER
5965-00-232-4643 A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of a permanent magnet.
Part Alternates: NT49188A, NT-49188A, LS-103B/TIQ-2, LS103BTIQ2, LS401, LS-401, MIL-L-13941/1, MILL139411, 5965-00-232-4643, 00-232-4643, 5965002324643, 002324643
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-232-4643 | 15771 ( LOUDSPEAKER, PERMANENT MAGNET ) |
Drawings & Photos | NSN 5965-00-232-4643
Cross Reference | NSN 5965-00-232-4643
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS-103B/TIQ-2 | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| LS-103B/TIQ-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| LS-401 | 21530 | SPENCER INDUSTRIES INC |
| MIL-L-13941/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NT-49188A | 87771 | UNIVERSITY SOUND INC AFFIL OF MARK IV INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5965-00-232-4643
Technical Data | NSN 5965-00-232-4643
| Characteristic | Specifications |
|---|---|
| POWER RATING | 15.00 WATTS NORMAL AND 25.00 WATTS PEAK |
| IMPEDANCE RATING IN OHMS | 15.0 VOICE COIL NOMINAL |
| FREQUENCY RESPONSE RANGE IN HERTZ | 200.0 TO 6000.0 |
| FREQUENCY RESPONSE TOLERANCE IN DECIBELS | -20.0 TO 20.0 |

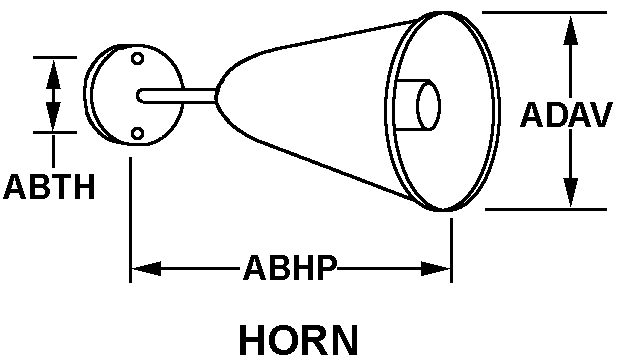

| STYLE DESIGNATOR | 16 HORN |
| OVERALL LENGTH | 26.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | ANY ACCEPTABLE |
| OVERALL DIAMETER | 19.062 INCHES NOMINAL |
| TRANSDUCER TYPE | CONE |
| TRANSDUCER DIAMETER | 18.000 INCHES NOMINAL |
| HORN MOUNTING FACILITY | UNTHREADED HOLE |
| HORN MOUNTING FACILITY QUANTITY | 1 |
| TRANSFORMER PRIMARY IMPEDANCE RATING IN OHMS | 120.0 NOMINAL AND 240.0 NOMINAL AND 480.0 NOMINAL AND 960.0 NOMINAL AND 1920.0 NOMINAL AND 3840.0 NOMINAL |
| USAGE DESIGN | OUTDOOR |
| INSTALLATION DESIGN | NONPORTABLE |
| TERMINAL TYPE | BINDING POST |
| TERMINAL QUANTITY | 5 |
| MOUNTING METHOD | BRACKET |
| TEST DATA DOCUMENT | 81349-MIL-L-13941 SPECIFICATION |
| III END ITEM IDENTIFICATION | AN/TIQ-2 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | LS-103B/TIQ-2 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-L-13941/1 |
Restrictions/Controls & Freight Information | NSN 5965-00-232-4643
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062420 | LOUDSPEAKER/SPEAKER W/HORN SUB 1 |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
