Product Details | HEADSET-MICROPHONE
5965-00-402-1749 An item consisting of a HEADSET, ELECTRICAL and a MICROPHONE (as modified) mounted on or supported from the head. It may include connecting cords, plugs, jacks, and switches. See also HEADSET-CHEST SET, ELECTRICAL.
Part Alternates: HE157006, HE-157-006, HM827, HM-827, JTHM57HA, 7184011, 718401-1, 7184071, 718407-1, 581373-100, 723898-952, 10393, 110740, 115180, 115180-694, 121280-690, 491159001694, 491-159-001-694, 495159001694, 495-159-001-694, 5670CA, 5670-CA, 5965-00-402-1749, 00-402-1749, 5965004021749, 723898952, 004021749, 121280690, 115180694, 581373100
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 APR 1970 | 00-402-1749 | 02928 ( HEADSET-MICROPHONE ) |

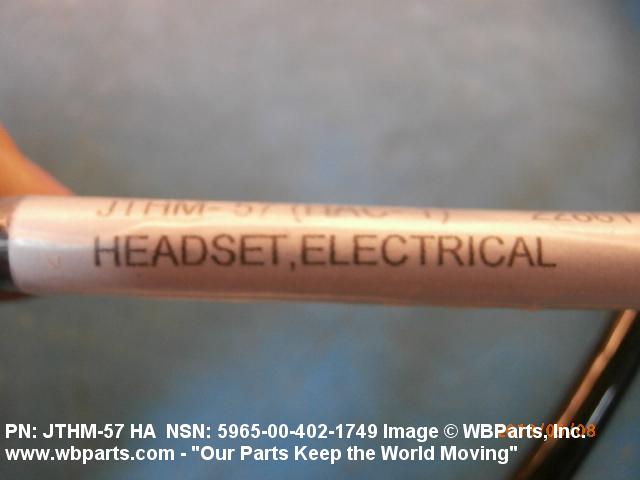

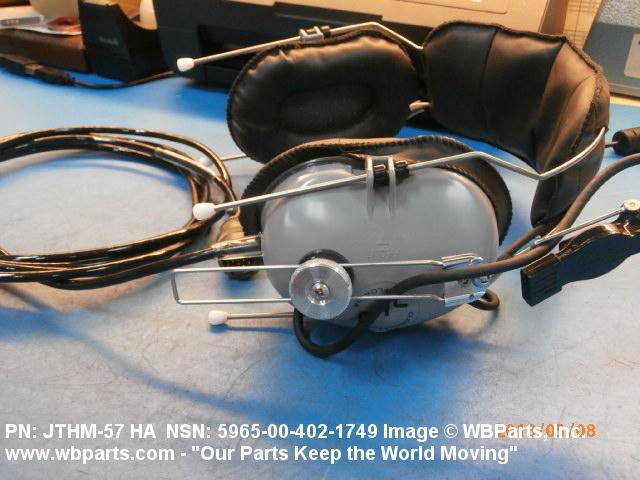

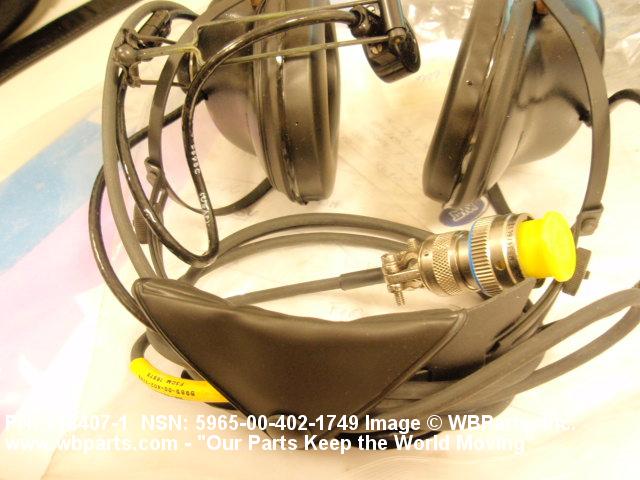

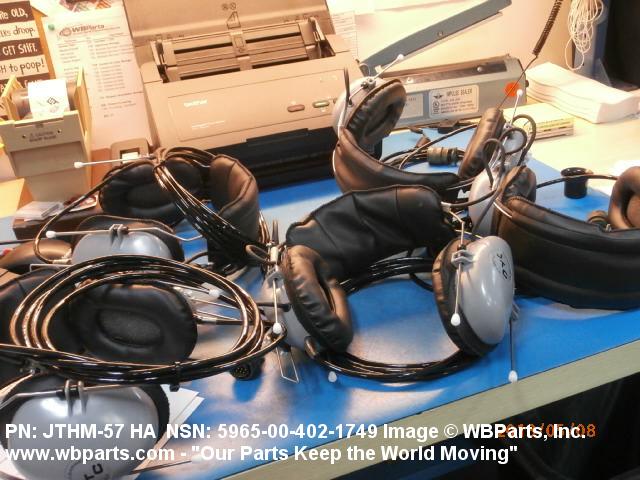

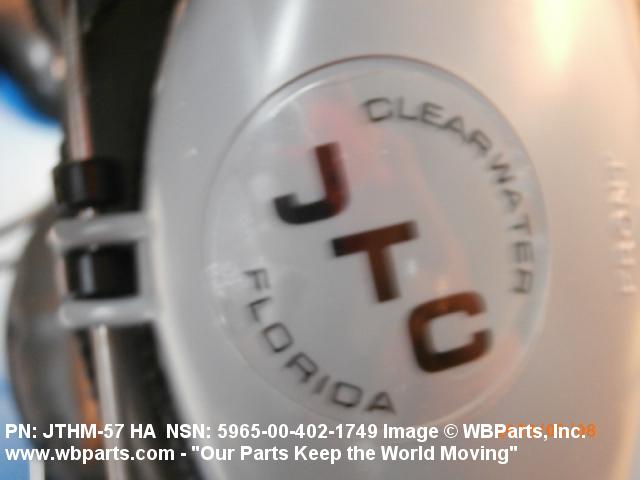

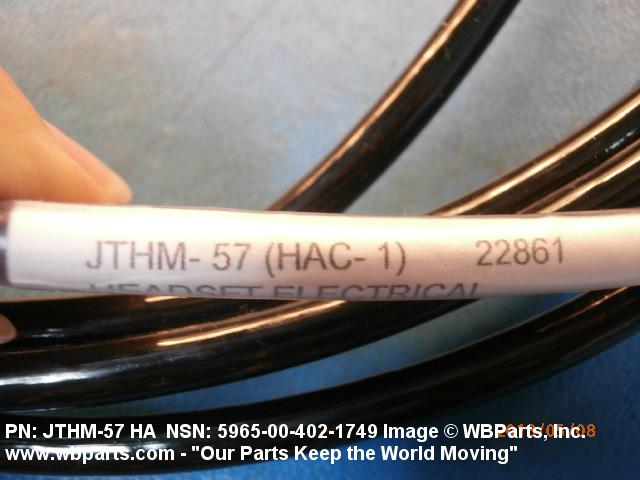

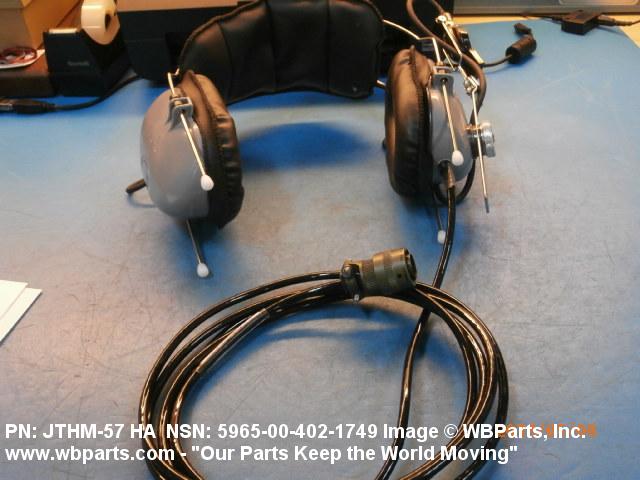

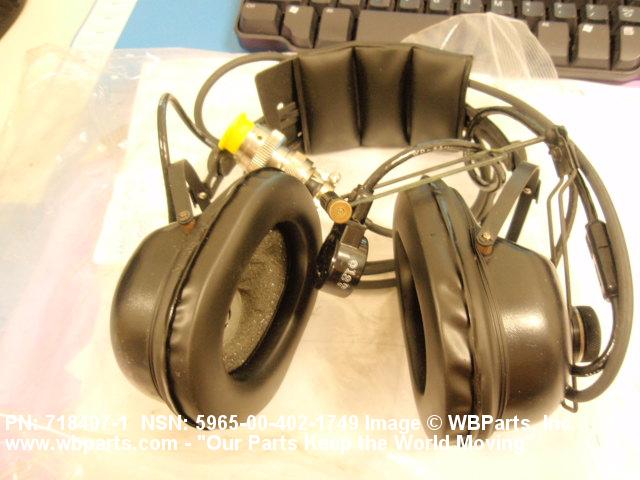

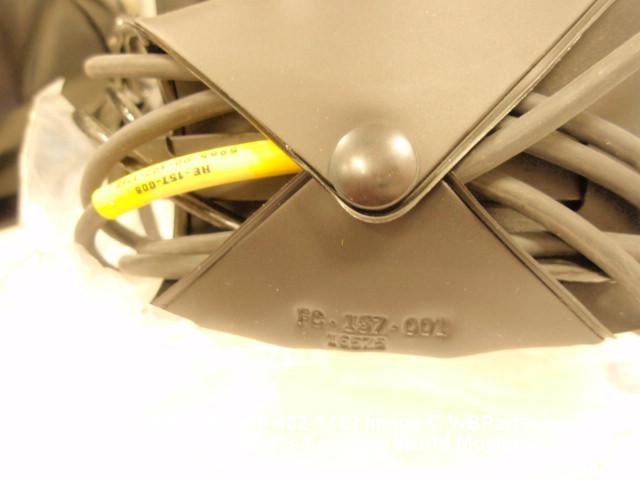

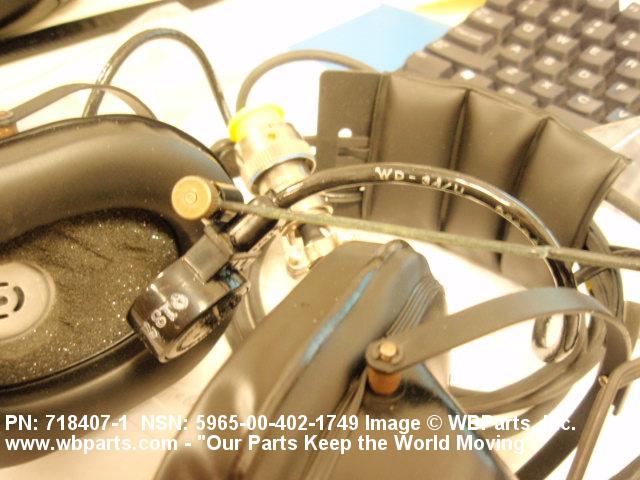

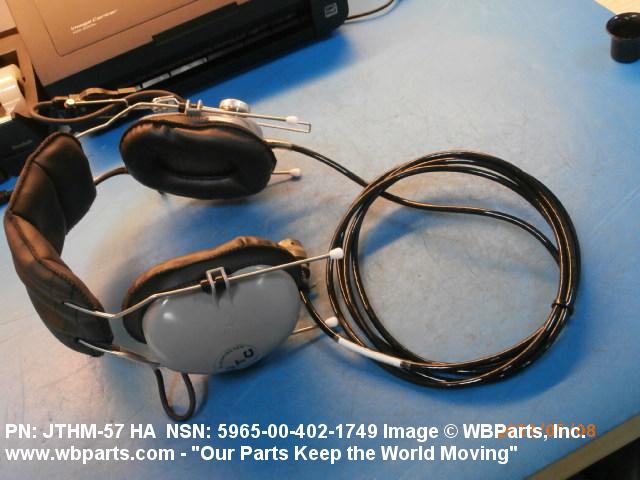

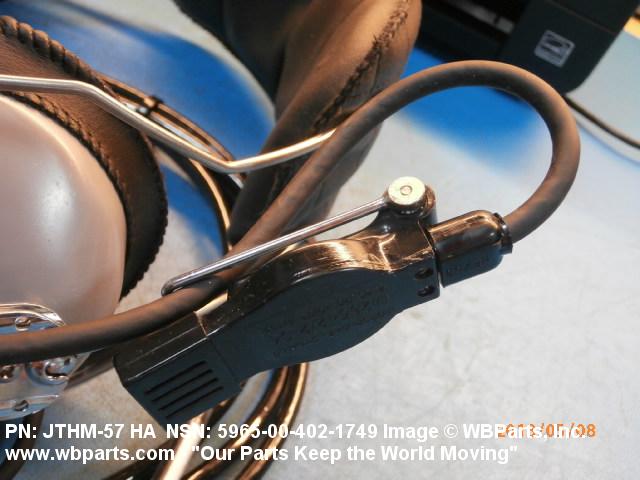

Drawings & Photos | NSN 5965-00-402-1749
Demand History | NSN 5965-00-402-1749
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5965-00-402-1749 | 2022-09-05 | 48 | ES |
| 5965-00-402-1749 | 2022-05-27 | 3 | US |
| 5965-00-402-1749 | 2020-05-21 | 1 | DIBBS-RFPs |
| 5965-00-402-1749 | 2020-05-19 | 118 | DIBBS |
| 5965-00-402-1749 | 2020-05-19 | 32 | DIBBS |
| 5965-00-402-1749 | 2020-03-12 | 490 | DIBBS |
| 5965-00-402-1749 | 2019-12-30 | 1000 | US |
| 5965-00-402-1749 | 2019-12-26 | 1000 | DIBBS |
| 5965-00-402-1749 | 2019-10-07 | 1000 | US |
| 5965-00-402-1749 | 2019-10-03 | 1000 | DIBBS |
| 5965-00-402-1749 | 2018-05-07 | 19 | United States |
| 5965-00-402-1749 | 2018-05-04 | 3 | United States |
| 5965-00-402-1749 | 2018-04-30 | 5 | United States |
| 7184071 | 2018-01-11 | 5 | US |
| 5965-00-402-1749 | 2017-07-10 | 3 | United States |
| 5965-00-402-1749 | 2014-06-01 | 275 | DIBBS |
| 5965-00-402-1749 | 2014-03-11 | 1 | DIBBS-RFPs |
| 7184071 | 2014-01-17 | 1 | US |
| 5965-00-402-1749 | 2013-11-11 | 318 | DIBBS |
| 5965-00-402-1749 | 2013-08-15 | 635 | DIBBS |
| 5965-00-402-1749 | 2013-05-16 | 284 | DIBBS |
| 5965-00-402-1749 | 2012-12-04 | 1110 | DIBBS |
| 5965-00-402-1749 | 2012-10-19 | 484 | DIBBS |
| 5965-00-402-1749 | 2012-06-19 | 350 | DIBBS |
| 5965-00-402-1749 | 2011-12-15 | 382 | DIBBS |
| 5965-00-402-1749 | 2011-10-06 | 294 | DIBBS |
| 5965-00-402-1749 | 2011-08-31 | 574 | DIBBS |
| 5965-00-402-1749 | 2011-05-19 | 10 | US |
| 5965-00-402-1749 | 2011-03-08 | 311 | DIBBS |
| 5965-00-402-1749 | 2011-01-05 | 199 | DIBBS |
| 5965-00-402-1749 | 2010-10-12 | 1060 | DIBBS |
| 5965-00-402-1749 | 2010-08-13 | 20 | Taiwan |
| 5965-00-402-1749 | 2010-06-17 | 246 | DIBBS |
| 5965-00-402-1749 | 2010-05-14 | 95 | DIBBS |
| 5965-00-402-1749 | 2010-01-04 | 40 | DIBBS |
| 5965-00-402-1749 | 2009-08-04 | 313 | DIBBS |
| 5965-00-402-1749 | 2009-04-23 | 202 | DIBBS |
| 5965-00-402-1749 | 2009-03-04 | 1290 | DIBBS |
| 7184071 | 2009-01-09 | 1 | United States |
| 5965-00-402-1749 | 2008-06-04 | 648 | DIBBS |
| 5965-00-402-1749 | 2008-05-27 | 324 | DIBBS |
| 5965-00-402-1749 | 2008-02-05 | 555 | DIBBS |
| 5965-00-402-1749 | 2008-01-24 | 200 | DIBBS |
| 5965-00-402-1749 | 2007-10-03 | 333 | DIBBS |
| HE157006 | 2007-06-18 | 2 | South Korea |
| HE157006 | 2007-06-11 | 2 | South Korea |
Cross Reference | NSN 5965-00-402-1749
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10393 | 18068 | ASTROCOM ELECTRONICS, INC. |
| 110740 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 115180 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 115180-694 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 121280-690 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 491-159-001-694 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 495-159-001-694 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 5670-CA | 59369 | ACOUSTICOM CORP DBA ACOUSTIC |
| 581373-100 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 718401-1 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 718407-1 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 723898-952 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| HE-157-006 | 16575 | SONETRONICS INC DBA SONETRONICS |
| HM-827 | 55564 | D C M INDUSTRIES INC |
| JTHM-57(HA) | 22861 | JOYCE TELECTRONICS CORP |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5965-00-402-1749
Related Products | NSN 5965-00-402-1749
5965-00-402-3333, 5965-00-402-3377, 5965-00-402-4042, 5965-00-402-5208, 5965-00-402-7799
Technical Data | NSN 5965-00-402-1749
| Characteristic | Specifications |
|---|---|
| EARPHONE ELEMENT TYPE | MAGNETIC |
| EARPHONE QUANTITY | 2 |
| EARPHONE IMPEDANCE RATING | 600.0 OHMS NOMINAL |
| EARPHONE CONTROLLING AGENCY | ROANWELL COMPANY |
| EARPHONE IDENTIFYING NUMBER | 90064-54 PART NO. |
| MICROPHONE ELEMENT TYPE | DYNAMIC |
| IMPEDANCE RATING | 5.0 OHMS NOMINAL |
| FREQUENCY RATING | 200.0 HERTZ MINIMUM AND 4.0 KILOHERTZ MAXIMUM |
| CONTROLLING AGENCY | ROANWELL COMPANY |
| IDENTIFYING NUMBER | RME-101(49) PART NO. |
| EARPHONE MOUNTING METHOD | SUSPENDED ON ADJUSTABLE HEADBAND |
| MICROPHONE MOUNTING FACILITY | ADAPTER FASTENED TO LEFT EARPHONE |
| CONNECTOR CONTROLLING AGENCY | MILITARY STANDARD |
| CONNECTOR NAME | PLUG |

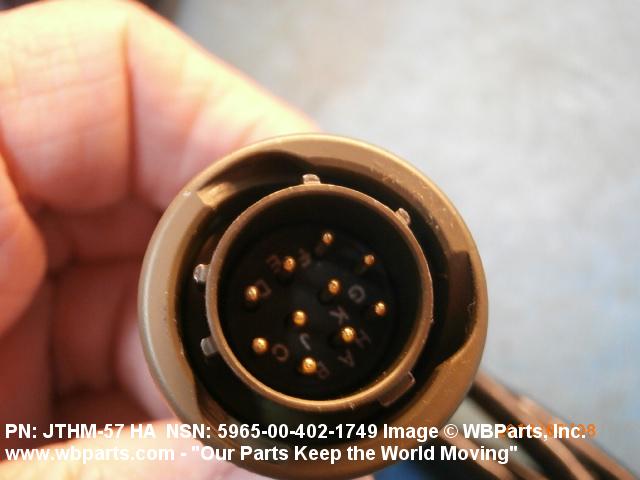

| CONNECTOR IDENTIFYING NUMBER | MS3116F-12-10P PART NO. |
| CONNECTOR TO JUNCTION CORD LENGTH | 6.000 FEET |
| SWITCH | NOT INCLUDED |
| SPECIAL FEATURES | INCLUDES TWO MAGNETIC EARPHONES. A NOISE CANCELLING DYNAMIC MICROPHONE,AND A CORD ASSEMBLY. USED ON NAVY SHIPS |
Restrictions/Controls & Freight Information | NSN 5965-00-402-1749
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063300 | TELEPHONE TELEPHONE PART ARTICLE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-00-402-1749
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
