NSN 5965-00-620-4955 M-33A/AIC, M33AAIC, SCDL176686
Product Details | DYNAMIC MICROPHONE
5965-00-620-4955 A microphone which depends for its operation upon the generation of an electromotive force by the motion of a moving coil within a magnetic field.
Part Alternates: M-33A/AIC, M33AAIC, SCDL176686, SC-DL-176686, MILM55233, MIL-M-55233, 10300, 5965-00-620-4955, 00-620-4955, 5965006204955, 006204955
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-620-4955 | 00362 ( MICROPHONE, DYNAMIC ) |
Drawings & Photos | NSN 5965-00-620-4955
Demand History | NSN 5965-00-620-4955
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10300 | 2025-03-65 | 30 | GU |
Cross Reference | NSN 5965-00-620-4955
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5965-00-620-4955
Related Products | NSN 5965-00-620-4955
Technical Data | NSN 5965-00-620-4955
| Characteristic | Specifications |
|---|---|
| FREQUENCY RESPONSE RANGE IN HERTZ | 200.0 TO 7000.0 |
| OUTPUT SENSITIVITY RATING IN DECIBELS | 74.0 |
| OUTPUT SENSITIVITY RATING REFERENCE | 115 MILLIWATTS PER 0.0002 MICROBARS |
| POLARITY CONNECTION | NOT REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | UNIDIRECTIONAL |
| NOISE CANCELING FEATURE | INCLUDED |
| SUPPORT STAND | NOT INCLUDED |
| SHOCK MOUNT | NOT PROVIDED |
| ELECTRICAL CONNECTION TYPE | INTEGRAL CABLE |
| ACCESSORY COMPONENTS | CONNECTOR |
| CONNECTOR IDENTIFICATION | U-173/U |
| CONNECTOR MANUFACTURER CODE | 80063 |
| EXTENDED CABLE LENGTH | 17.1 FEET NOMINAL |
| CABLE CONDUCTOR QUANTITY | 2 |
| CABLE SHIELDED CONDUCTOR QUANTITY | 2 |

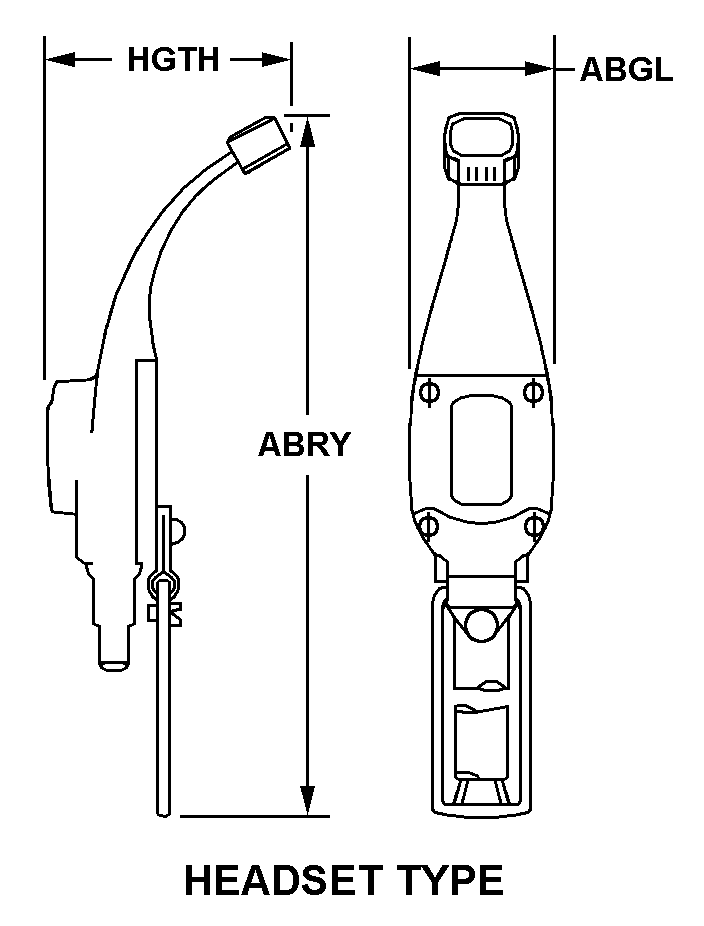

| BODY STYLE | 8 HEADSET TYPE |
| WIDTH | 1.130 INCHES NOMINAL |
| LENGTH | 6.250 INCHES NOMINAL |
| HEIGHT | 3.421 INCHES NOMINAL |
| TEST DATA DOCUMENT | 81349-MIL-M-55233 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M-33A/AIC |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-M-55233 |
Restrictions/Controls & Freight Information | NSN 5965-00-620-4955
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-00-620-4955
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
