Product Details | HEADSET HOLDER
5965-00-801-1131 An item specifically designed to mechanically accommodate, suspend, and/or position one or more headsets when not in use. May include locking device. Does not inclose headset. See also BOX, HEADSET STORAGE.
Part Alternates: B8011131, 8011131, 5965-00-801-1131, 00-801-1131, 5965008011131, 008011131
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-801-1131 | 00847 ( HOLDER, HEADSET ) |
Drawings & Photos | NSN 5965-00-801-1131
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5965-00-801-1131
5965-00-801-7410, 5965-00-802-0060, 5965-00-802-1924, 5965-00-802-2148, 5965-00-802-6683
Technical Data | NSN 5965-00-801-1131
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1075 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-630,COMP 1021 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ZINC |

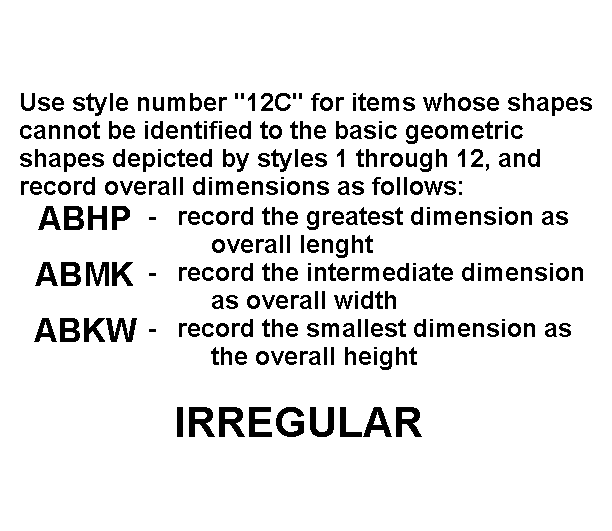

| STYLE DESIGNATOR | 12C IRREGULAR |
| OVERALL LENGTH | 2.875 INCHES NOMINAL |
| OVERALL HEIGHT | 1.375 INCHES NOMINAL |
| OVERALL WIDTH | 1.688 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | SPRING CLIP |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.250 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 8011131 |
Restrictions/Controls & Freight Information | NSN 5965-00-801-1131
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063300 | TELEPHONE TELEPHONE PART VIZ: SUB 8 |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
