NSN 5965-00-897-0618 SMC586480, 00-897-0618, 008970618
Product Details | PERMANENT MAGNET LOUDSPEAKER
5965-00-897-0618 A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of a permanent magnet.
Part Alternates: SMC586480, 5965-00-897-0618, 00-897-0618, 5965008970618, 008970618
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 MAY 1972 | 00-897-0618 | 15771 ( LOUDSPEAKER, PERMANENT MAGNET ) |
Drawings & Photos | NSN 5965-00-897-0618
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5965-00-897-0618
Technical Data | NSN 5965-00-897-0618
| Characteristic | Specifications |
|---|---|
| POWER RATING | 4.00 WATTS PEAK |
| IMPEDANCE RATING IN OHMS | 8.0 VOICE COIL NOMINAL |
| FREQUENCY RESPONSE RANGE IN HERTZ | 300.0 TO 7000.0 |

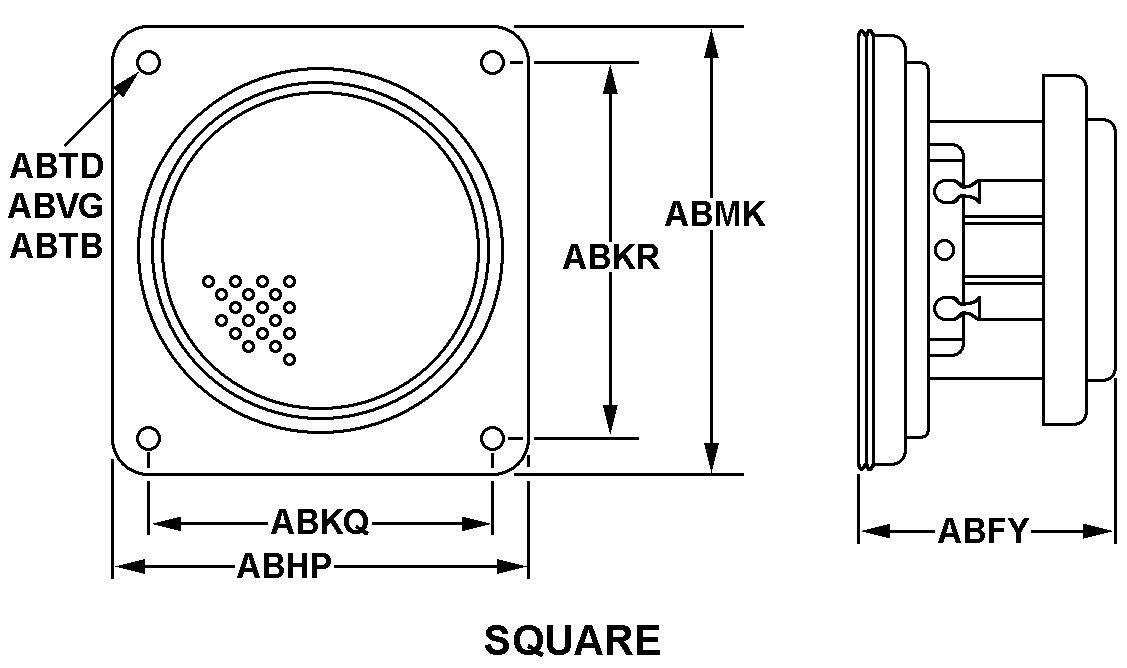

| STYLE DESIGNATOR | 34 SQUARE |
| OVERALL DEPTH | 2.438 INCHES NOMINAL |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.313 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 3.313 INCHES NOMINAL |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.218 INCHES NOMINAL |
| TRANSDUCER TYPE | CONE |
| TRANSDUCER DIAMETER | 3.8 INCHES NOMINAL |
| VOICE COIL DIAMETER | ANY ACCEPTABLE |
| TRANSFORMER PRIMARY IMPEDANCE RATING IN OHMS | ANY ACCEPTABLE |
| USAGE DESIGN | OUTDOOR |
| INSTALLATION DESIGN | PORTABLE |
| TERMINAL TYPE | SCREW |
| TERMINAL QUANTITY | 2 |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 4 |
Restrictions/Controls & Freight Information | NSN 5965-00-897-0618
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062420 | LOUDSPEAKER/SPEAKER W/HORN SUB 1 |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
