NSN 5965-01-155-8766 AT263, 01-155-8766, 011558766
Product Details | PERMANENT MAGNET LOUDSPEAKER
5965-01-155-8766 A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of a permanent magnet.
Part Alternates: AT263, 5965-01-155-8766, 01-155-8766, 5965011558766, 011558766
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 JUN 1983 | 01-155-8766 | 15771 ( LOUDSPEAKER, PERMANENT MAGNET ) |
Drawings & Photos | NSN 5965-01-155-8766
Demand History | NSN 5965-01-155-8766
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5965-01-155-8766 | 2008-09-260 | 100 | US |
Cross Reference | NSN 5965-01-155-8766
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AT263 | 04597 | PROJECTS UNLIMITED, INC. DIV NA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5965-01-155-8766
Technical Data | NSN 5965-01-155-8766
| Characteristic | Specifications |
|---|---|
| POWER RATING | 0.10 WATTS NORMAL |
| IMPEDANCE RATING IN OHMS | 8.0 VOICE COIL NOMINAL |

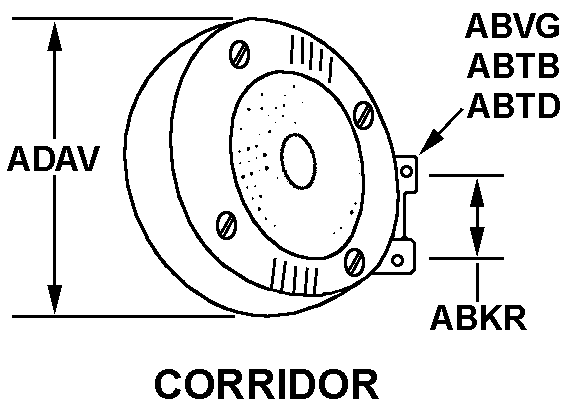

| STYLE DESIGNATOR | 25 CORRIDOR |
| MOUNTING HOLE DIAMETER | 0.062 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.344 INCHES NOMINAL |
| MOUNTING SLOT LENGTH | 0.375 INCHES NOMINAL |
| OVERALL DIAMETER | 1.688 INCHES NOMINAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| TERMINAL QUANTITY | 2 |
| MANUFACTURERS CODE | 04597 |
| DESIGN CONTROL REFERENCE | AT263 |
Restrictions/Controls & Freight Information | NSN 5965-01-155-8766
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
