NSN 5965-01-307-4495 D0133, 68000115, 01-307-4495
Product Details | PERMANENT MAGNET LOUDSPEAKER
5965-01-307-4495 A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of a permanent magnet.
Part Alternates: D0133, 68000115, 5965-01-307-4495, 01-307-4495, 5965013074495, 013074495
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 SEP 1989 | 01-307-4495 | 15771 ( LOUDSPEAKER, PERMANENT MAGNET ) |
Drawings & Photos | NSN 5965-01-307-4495
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5965-01-307-4495
Technical Data | NSN 5965-01-307-4495
| Characteristic | Specifications |
|---|---|
| POWER RATING | 500.00 MILLIWATTS NORMAL |
| IMPEDANCE RATING IN OHMS | 8.0 VOICE COIL NOMINAL |
| FREQUENCY RESPONSE RANGE IN HERTZ | 0.0 TO 5000.0 |

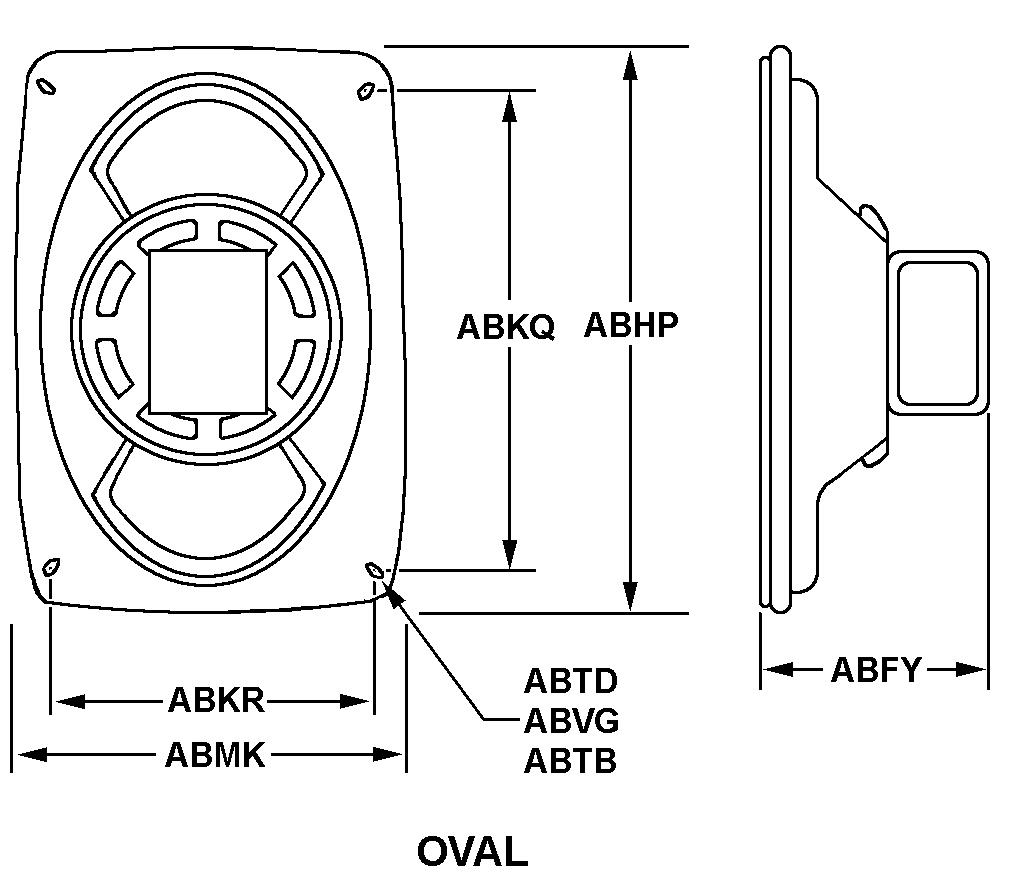

| STYLE DESIGNATOR | 3 OVAL |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| TRANSDUCER TYPE | CONE |
| USAGE DESIGN | INDOOR |
| INSTALLATION DESIGN | NONPORTABLE |
| TERMINAL TYPE | TAB, SOLDER LUG |
| TERMINAL QUANTITY | 2 |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| III UNPACKAGED UNIT WEIGHT | 46.800 GRAMS |
| III FSC APPLICATION DATA | AUDIO EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5965-01-307-4495
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
