NSN 5970-00-003-3311 ML523W02006, ML523W02-006, MIL-I-23264/1
Product Details | STANDOFF INSULATOR
5970-00-003-3311 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: ML523W02006, ML523W02-006, MIL-I-23264/1, MILI232641, 2608, 5970-00-003-3311, 00-003-3311, 5970000033311, 000033311
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 MAY 1972 | 00-003-3311 | 00225 ( INSULATOR, STANDOFF ) |
Drawings & Photos | NSN 5970-00-003-3311
Demand History | NSN 5970-00-003-3311
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2608 | 2020-03-77 | 1 | us |
| 2608 | 2019-08-225 | 3 | us |
| 2608 | 2018-07-193 | 2 | US |
| 2608 | 2018-07-190 | 1 | United States |
| 2608 | 2018-05-121 | 5 | us |
| 2608 | 2018-04-116 | 2 | us |
| 2608 | 2012-04-106 | 7 | |
| 2608 | 2011-12-357 | 7 | |
| 2608 | 2011-11-314 | 7 |
Cross Reference | NSN 5970-00-003-3311
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2608 | 44655 | HEICO OHMITE, L.L.C. DBA OHMITE MANUFACTURING |
| 2608 | 83330 | DIALIGHT CORPORATION |
| 2608 | 91967 | ABBATRON, LLC DIV ABBATRON LLC |
| MIL-I-23264/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| ML523W02-006 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-003-3311
Related Products | NSN 5970-00-003-3311
Technical Data | NSN 5970-00-003-3311
| Characteristic | Specifications |
|---|---|

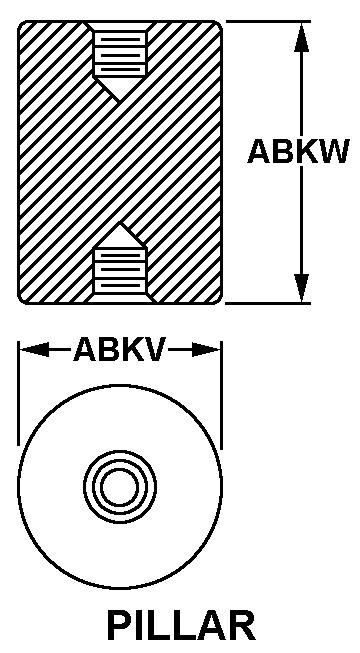

| STYLE DESIGNATOR | M1 PILLAR |
| OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL INSULATION, ELECTRICAL, MIL-I-10 MOUNTING BASE INSULATION, ELECTRICAL, MIL-I-10 |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED HOLE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | ELECTRICAL TERMINATION UNC MOUNTING FACILITY UNC |
| SCREW THREAD DIAMETER AND LOCATION | 0.164 ELECTRICAL TERMINATION INCHES NOMINAL 0.250 MOUNTING FACILITY INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 32 ELECTRICAL TERMINATION 32 MOUNTING FACILITY |
| THREAD CLASS AND LOCATION | 2B ELECTRICAL TERMINATION 2B MOUNTING FACILITY |
| THREAD LENGTH AND LOCATION | 0.250 MOUNTING FACILITY INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-I-23264/1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | ML523W02-006 |
Restrictions/Controls & Freight Information | NSN 5970-00-003-3311
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
