NSN 5970-00-051-4041 AA59474, A-A-59474, MILI23594
Product Details | ELECTRICAL INSULATION TAPE
5970-00-051-4041 A narrow strip of woven or processed material less than twelve inches (304.8 mm) in width. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. The item tends to resist any physical change, in contrast to an insulating compound in tape form which will fuse under a specified heat or pressure. It may or may not have adhesive backing. Excludes items not having definite rated electrical characteristics, such as TAPE, ADHESIVE, RUBBER; TAPE, PRESSURE SENSITIVE ADHESIVE; TAPE, SEMI-CONDUCTING, ELECTRICAL; and TAPE, SHIELDING, ELECTRICAL. See also INSULATION CLOTH, ELECTRICAL and INSULATING COMPOUND, ELECTRICAL.
Part Alternates: AA59474, A-A-59474, MILI23594, MIL-I-23594, MILT23594TYP13, MILT23594TYP1-3-, 62 3/4IN, 6234IN, 80012062032, 80-0120-6203-2, 5970-00-051-4041, 00-051-4041, 5970000514041, 000514041
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-051-4041 | 33476 ( TAPE, INSULATION, ELECTRICAL ) |

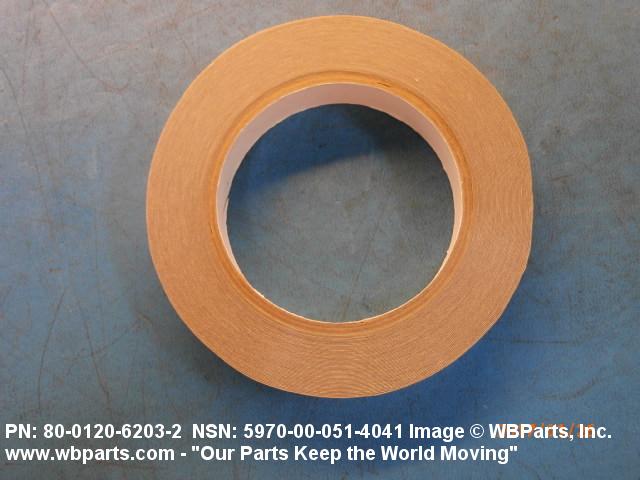

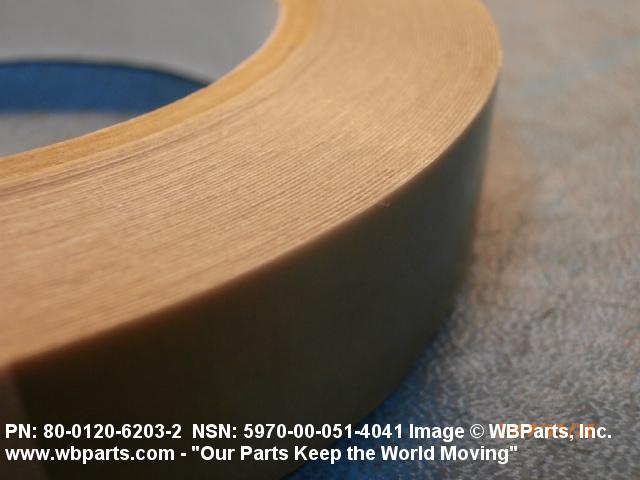

Drawings & Photos | NSN 5970-00-051-4041
Demand History | NSN 5970-00-051-4041
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AA59474 | 2025-11-318 | 1 | United States |
| AA59474 | 2025-06-174 | 2 | us |
| AA59474 | 2024-10-288 | 2 | US |
| AA59474 | 2024-08-234 | 2 | us |
| MILI23594 | 2024-06-177 | 5 | United States |
| 5970-00-051-4041 | 2024-01-09 | 2 | United States |
| 5970-00-051-4041 | 2023-03-82 | 2 | United States |
| AA59474 | 2022-02-52 | 1 | United States |
| AA59474 | 2020-01-23 | 1 | United States |
| AA59474 | 2019-09-254 | 2 | United States |
| MILI23594 | 2018-06-176 | 7 | IN |
| 5970-00-051-4041 | 2017-01-17 | 1 | United States |
| AA59474 | 2016-09-250 | 1 | United Kingdom |
| AA59474 | 2016-01-22 | 1515 | United States |
| MILI23594 | 2015-08-236 | 50 | India |
| A-A-59474 | 2015-06-174 | 3 | Greece |
| AA59474 | 2015-05-142 | 3 | US |
| MILI23594 | 2014-07-188 | 25 | India |
| AA59474 | 2014-05-147 | 2 | United States |
| AA59474 | 2014-03-70 | 32 | US |
| 5970-00-051-4041 | 2014-02-48 | 20 | DIBBS |
| MIL-I-23594 | 2013-07-190 | 5 | HK |
| AA59474 | 2012-09-257 | 1 | US |
| 5970-00-051-4041 | 2012-08-242 | 1 | DIBBS |
| 5970-00-051-4041 | 2012-08-242 | 2 | DIBBS |
| 5970-00-051-4041 | 2012-08-242 | 4 | DIBBS |
| 5970-00-051-4041 | 2012-08-242 | 6 | DIBBS |
| 5970-00-051-4041 | 2012-08-242 | 14 | DIBBS |
| 5970-00-051-4041 | 2012-08-233 | 101 | DIBBS |
| AA59474 | 2012-05-138 | 24 | US |
| AA59474 | 2012-01-23 | 4 | United States |
| 5970-00-051-4041 | 2011-06-174 | 359 | DIBBS |
| AA59474 | 2011-03-75 | 1 | Canada |
| 5970-00-051-4041 | 2010-07-209 | 429 | DIBBS |
| 5970-00-051-4041 | 2010-05-147 | 1300 | DIBBS |
| 5970-00-051-4041 | 2010-03-67 | 227 | DIBBS |
| 5970-00-051-4041 | 2008-05-148 | 500 | United States |
Cross Reference | NSN 5970-00-051-4041
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 62 3/4IN | 20999 | 3M CO ADMININISTRATIVE ELECTRONIC & COMMUNICATIONS |
| 62 3/4IN | 53387 | 3M COMPANY DIV ELECTRO AND COMMUNICATIONS |
| 62 3/4IN | 75037 | MINNESOTA MINING AND MFG CO 3M COMPANY |
| 80-0120-6203-2 | D2607 | 3M DEUTSCHLAND GMBH DIV 3M GOVERNMENT SERVICES, EUROPE & |
| A-A-59474 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| MIL-I-23594 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILT23594TYP1-3- | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-051-4041
Related Products | NSN 5970-00-051-4041
Technical Data | NSN 5970-00-051-4041
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-I-23594,TYPE 2,CLASS 5 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| COLOR | UNPIGMENTED OVERALL |
| NOMINAL LENGTH | 54.0 FEET |

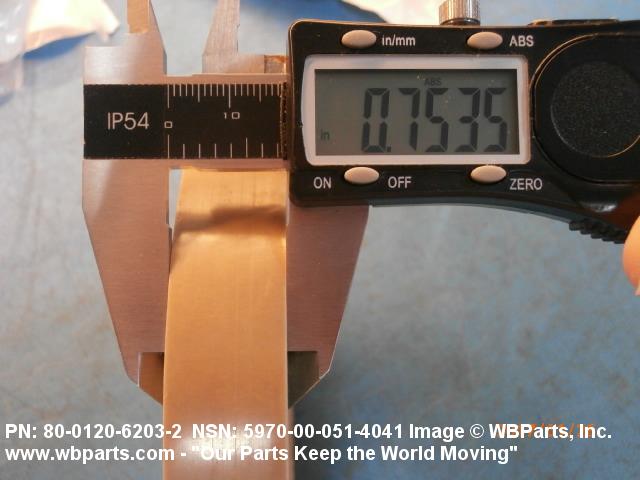

| NOMINAL WIDTH | 0.750 INCHES |
| MINIMUM TENSILE STRENGTH | 27 POUNDS PER SQUARE INCH |
| CUT TYPE AND QUANTITY | 1 SINGLE |

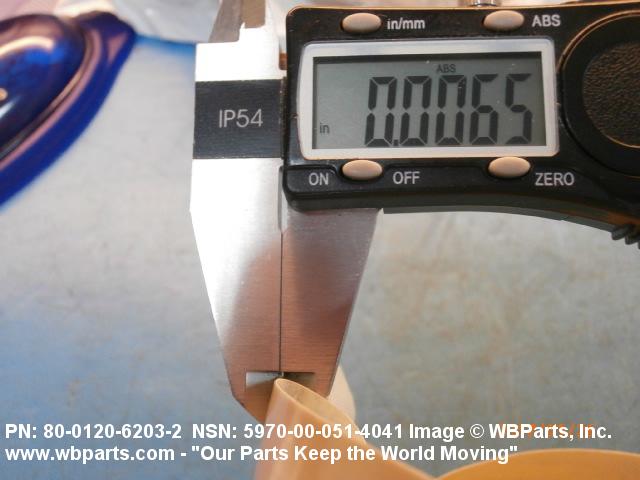

| NOMINAL OVERALL THICKNESS | 0.0065 INCHES |
| ADHESIVE TYPE | PRESSURE SENSITIVE |
| ADHESIVE LOCATION | ONE SIDE |
| TEMP RATING | 260.0 DEG CELSIUS NOMINAL |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 14000.0 |
| DIELECTRIC MATERIAL VOLTAGE RATING PER MIL THICKNESS IN VOLTS | NOT RATED |
| DIELECTRIC MATERIAL VOLTAGE RATING PER MILLIMETER THICKNESS IN KILOVOLTS | NOT RATED |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT |
| NONDEFINITIVE SPEC/STD DATA | 5 CLASS AND 2 TYPE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY LENGTH AND WIDTH |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59474 |
Restrictions/Controls & Freight Information | NSN 5970-00-051-4041
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 4 | 12 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 004620 | ADHESIVES:CEMENTS,GLUES,PASTES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-00-051-4041
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 4 | 12 months |
| Purchasing | QTY UOM |
1 RO : Roll |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 4 | 12 months |
| Purchasing | QTY UOM |
1 RO : Roll |
