NSN 5970-00-089-1881 AA59474, A-A-59474, HK90127

Product Details | ELECTRICAL INSULATION TAPE

5970-00-089-1881 A narrow strip of woven or processed material less than twelve inches (304.8 mm) in width. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. The item tends to resist any physical change, in contrast to an insulating compound in tape form which will fuse under a specified heat or pressure. It may or may not have adhesive backing. Excludes items not having definite rated electrical characteristics, such as TAPE, ADHESIVE, RUBBER; TAPE, PRESSURE SENSITIVE ADHESIVE; TAPE, SEMI-CONDUCTING, ELECTRICAL; and TAPE, SHIELDING, ELECTRICAL. See also INSULATION CLOTH, ELECTRICAL and INSULATING COMPOUND, ELECTRICAL.

Part Alternates: AA59474, A-A-59474, HK90127, HK-90-127 , MILI23594, MIL-I-23594, MILI23594TY11W36YDS1.5THK3INCORE, MILI23594TY11W36YDS15THK3INCORE, 601 1-2IN, 60112IN, 75031 1-2IN, 7503112IN, 80012038107, 80-0120-3810-7, 5970-00-089-1881, 00-089-1881, 5970000891881, 000891881

Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1961	00-089-1881	33476 ( TAPE, INSULATION, ELECTRICAL )

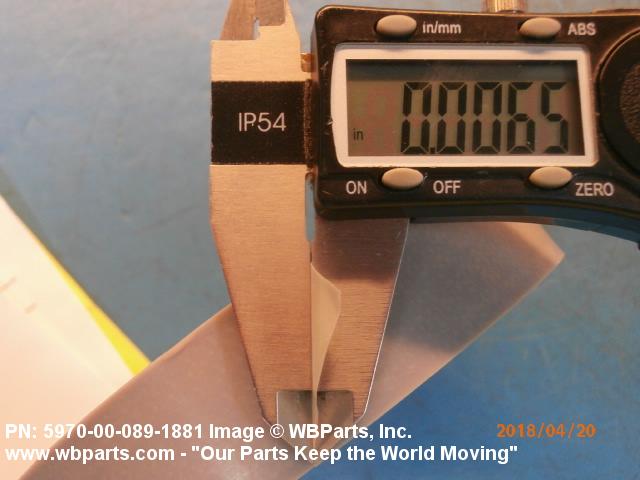

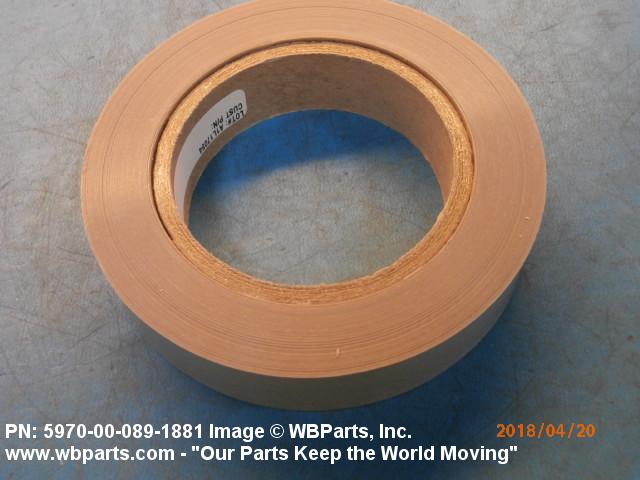

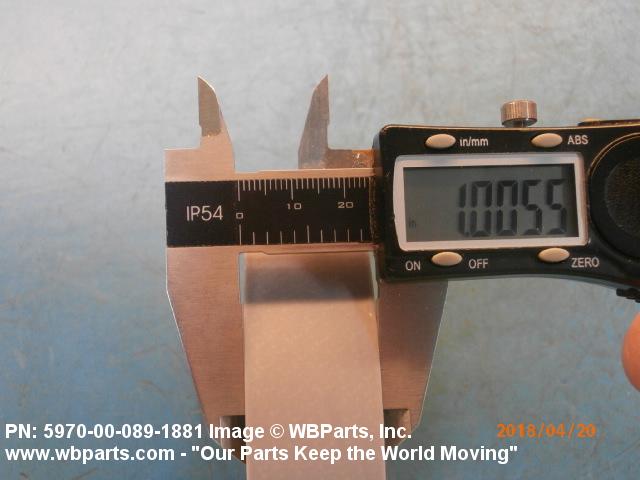

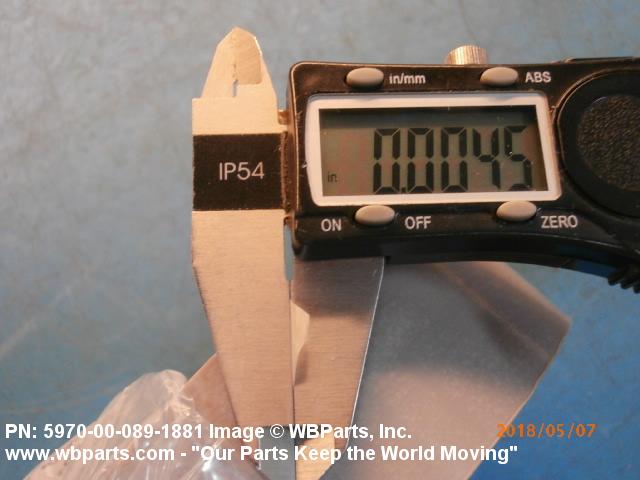

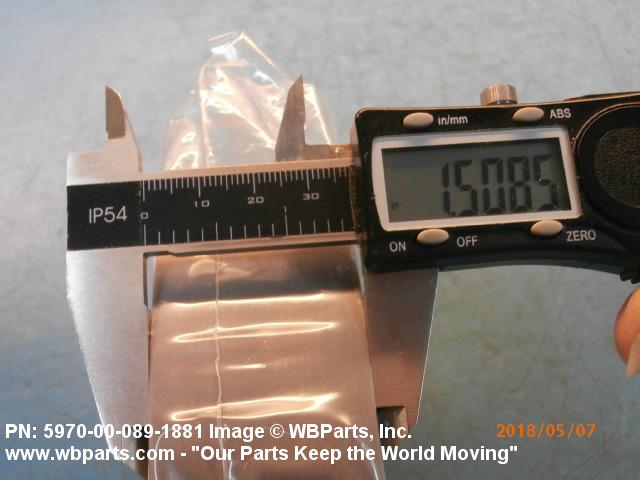

Drawings & Photos | NSN 5970-00-089-1881

Part Number	Request Date	QTY	Origin
AA59474	2025-11-318	1	United States
5970-00-089-1881	2025-08-237	2	DIBBS
AA59474	2025-06-174	2	us
5970-00-089-1881	2025-04-101	5	DIBBS
5970-00-089-1881	2025-04-93	5	DIBBS
AA59474	2024-10-288	2	US
5970-00-089-1881	2024-08-239	2	DIBBS
AA59474	2024-08-234	2	us
5970-00-089-1881	2024-08-231	2	DIBBS
5970-00-089-1881	2024-07-196	1	DIBBS
MILI23594	2024-06-177	5	United States
5970-00-089-1881	2023-11-334	5	DIBBS
5970-00-089-1881	2023-09-261	5	DIBBS
5970-00-089-1881	2023-05-122	1	DIBBS
5970-00-089-1881	2022-03-67	10	DIBBS
AA59474	2022-02-52	1	United States
5970-00-089-1881	2022-02-44	1	DIBBS
5970-00-089-1881	2021-08-229	1	DIBBS
5970-00-089-1881	2021-05-125	10	DIBBS
5970-00-089-1881	2021-03-87	1	DIBBS
5970-00-089-1881	2021-01-26	1	DIBBS
5970-00-089-1881	2020-03-72	2	DIBBS
5970-00-089-1881	2020-03-71	1	DIBBS
5970-00-089-1881	2020-03-63	2	DIBBS
AA59474	2020-01-23	1	United States
5970-00-089-1881	2019-11-323	1	DIBBS
5970-00-089-1881	2019-11-315	1	DIBBS
5970-00-089-1881	2019-09-266	2	DIBBS
AA59474	2019-09-254	2	United States
5970-00-089-1881	2019-08-226	1	DIBBS
5970-00-089-1881	2019-08-218	1	DIBBS
5970-00-089-1881	2018-09-261	5	United Arab Emirates
MILI23594	2018-06-176	7	IN
5970-00-089-1881	2018-06-156	184	DIBBS
5970-00-089-1881	2018-04-93	27	DIBBS
5970-00-089-1881	2018-03-88	10	United States
5970-00-089-1881	2017-01-18	41	DIBBS
5970-00-089-1881	2017-01-10	41	DIBBS
5970-00-089-1881	2016-12-362	16	DIBBS
5970-00-089-1881	2016-12-355	16	DIBBS
5970-00-089-1881	2016-12-347	16	DIBBS
5970-00-089-1881	2016-09-251	18	DIBBS
AA59474	2016-09-250	1	United Kingdom
5970-00-089-1881	2016-08-223	18	DIBBS
5970-00-089-1881	2016-08-215	18	DIBBS
5970-00-089-1881	2016-06-167	46	DIBBS
5970-00-089-1881	2016-06-159	28	DIBBS
5970-00-089-1881	2016-05-134	18	DIBBS
5970-00-089-1881	2016-05-126	18	DIBBS
5970-00-089-1881	2016-03-84	18	DIBBS
AA59474	2016-01-22	1515	United States
5970-00-089-1881	2016-01-21	46	DIBBS
5970-00-089-1881	2015-10-280	24	United States
MILI23594	2015-08-236	50	India
5970-00-089-1881	2015-07-204	162	DIBBS
A-A-59474	2015-06-174	3	Greece
AA59474	2015-05-142	3	US
MILI23594	2014-07-188	25	India
AA59474	2014-05-147	2	United States
AA59474	2014-03-70	32	US
MIL-I-23594	2013-07-190	5	HK
AA59474	2012-09-257	1	US
5970-00-089-1881	2012-09-254	439	DIBBS
5970-00-089-1881	2012-06-163	194	DIBBS
AA59474	2012-05-138	24	US
AA59474	2012-01-23	4	United States
5970-00-089-1881	2011-10-291	137	DIBBS
5970-00-089-1881	2011-06-159	95	DIBBS
5970-00-089-1881	2011-06-154	76	DIBBS
AA59474	2011-03-75	1	Canada
5970-00-089-1881	2011-01-18	24	United States
5970-00-089-1881	2011-01-06	24	DIBBS
5970-00-089-1881	2010-10-277	67	DIBBS
5970-00-089-1881	2010-05-130	59	DIBBS

Cross Reference | NSN 5970-00-089-1881

Part Number	Cage Code	Manufacturer
601 1-2IN	20999	3M CO ADMININISTRATIVE ELECTRONIC & COMMUNICATIONS
601 1-2IN	75037	MINNESOTA MINING AND MFG CO 3M COMPANY
75031 1-2IN	88301	MYSTIK TAPE CORP
80-0120-3810-7	D2607	3M DEUTSCHLAND GMBH DIV 3M GOVERNMENT SERVICES, EUROPE &
A-A-59474	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
HK-90-127	01PS4	HAWKEYE INTERNATIONAL LTD
MIL-I-23594	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILI23594TY11W36YDS1.5THK3INCORE	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5970-00-089-1881

Compare

Related Products | NSN 5970-00-089-1881

5970-00-089-1905, 5970-00-089-2717, 5970-00-089-3147, 5970-00-089-4333, 5970-00-089-4493

Technical Data | NSN 5970-00-089-1881

Characteristic	Specifications
MATERIAL	PLASTIC POLYTETRAFLUOROETHYLENE OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-I-23594,TYPE 1,CLASS 2 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
COLOR	UNPIGMENTED OVERALL
NOMINAL LENGTH	108.0 FEET
NOMINAL WIDTH	1.500 INCHES
MINIMUM TENSILE STRENGTH	12 POUNDS PER SQUARE INCH
CUT TYPE AND QUANTITY	1 SINGLE
NOMINAL OVERALL THICKNESS	0.0048 INCHES
ADHESIVE TYPE	PRESSURE SENSITIVE
ADHESIVE LOCATION	ONE SIDE
TEMP RATING	500.0 DEG FAHRENHEIT NOMINAL
DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS	7200.0
DIELECTRIC MATERIAL VOLTAGE RATING PER MIL THICKNESS IN VOLTS	NOT RATED
DIELECTRIC MATERIAL VOLTAGE RATING PER MILLIMETER THICKNESS IN KILOVOLTS	NOT RATED
ENVIRONMENTAL PROTECTION	MOISTURE RESISTANT
SPECIAL FEATURES	OVERALL THICKNESS INCLUDES ADHESIVE
NONDEFINITIVE SPEC/STD DATA	2 CLASS AND 1 TYPE
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-59474

Restrictions/Controls & Freight Information | NSN 5970-00-089-1881

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	5	18 months
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	049680	CLOTH R TAPE INSULATING
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5970-00-089-1881

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	5	18 months
Purchasing	QTY UOM	1 RO : Roll

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	5	18 months
Purchasing	QTY UOM	1 RO : Roll

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	5	18 months
Purchasing	QTY UOM	Y RO : Roll
