NSN 5970-00-105-0432 10232112, 00-105-0432, 001050432
Product Details | ANGLE BRACKET INSULATOR
5970-00-105-0432 An insulator formed into a dihedral angle (generally a right angle) designed to position, align or support an item(s) in relation to another.
Part Alternates: 10232112, 5970-00-105-0432, 00-105-0432, 5970001050432, 001050432
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 JUN 1968 | 00-105-0432 | 19191 ( INSULATOR, ANGLE BRACKET ) |
Drawings & Photos | NSN 5970-00-105-0432
Cross Reference | NSN 5970-00-105-0432
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10232112 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-105-0432
Technical Data | NSN 5970-00-105-0432
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC, POLYTETRAFLUOROETHYLENE, MIL-P-19468, GROUP A |

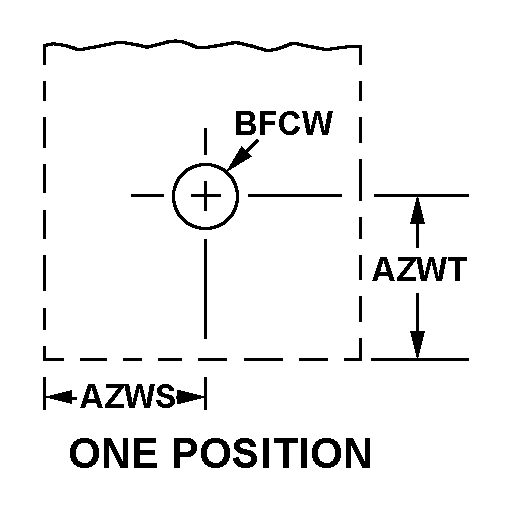

| HOLE ARRANGEMENT STYLE | 1 ONE POSITION |
| HOLE DIAMETER/SIZE | 0.380 INCHES NOMINAL |
| VOLTAGE RATING AND TYPE | NOT RATED |
| REINFORCEMENT FEATURE | NOT PROVIDED |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 10232112 |
Restrictions/Controls & Freight Information | NSN 5970-00-105-0432
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103660 | ELECTRIC WIRE OR WIRING |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
