NSN 5970-00-178-1188 HHI435, HH-I-435, 00-178-1188
Product Details | KNOB INSULATOR
5970-00-178-1188 An insulator of generally cylindrical shape which is designed to be attached to a rigid structure.
Part Alternates: HHI435, HH-I-435, 5970-00-178-1188, 00-178-1188, 5970001781188, 001781188
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-178-1188 | 18283 ( INSULATOR, KNOB ) |

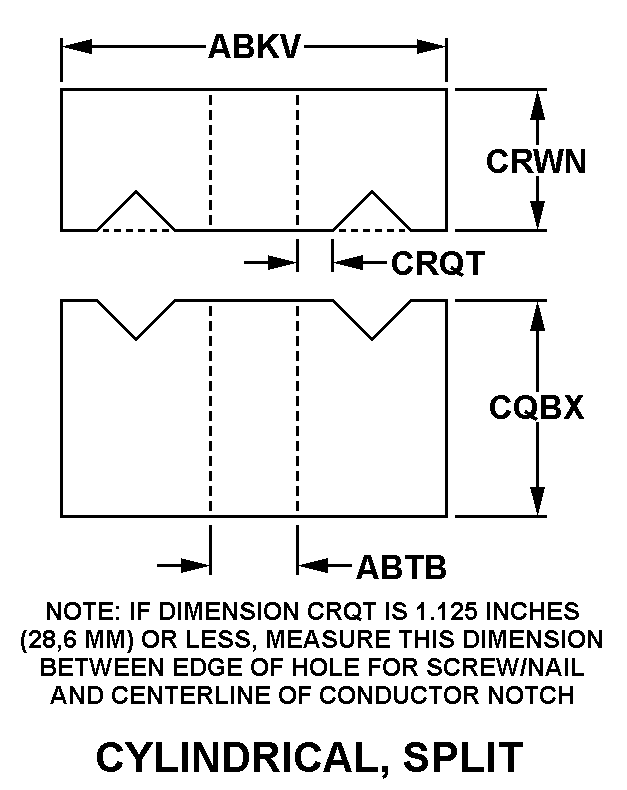

Drawings & Photos | NSN 5970-00-178-1188
Cross Reference | NSN 5970-00-178-1188
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HH-I-435 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-178-1188
Related Products | NSN 5970-00-178-1188
Technical Data | NSN 5970-00-178-1188
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | G2 CYLINDRICAL, SPLIT |
| OUTSIDE DIAMETER | 1.500 INCHES MINIMUM |
| MOUNTING HOLE DIAMETER | 0.250 INCHES NOMINAL |
| SECOND DISTANCE FROM CONDUCTOR SLOT TO OPPOSITE SURFACE | 1.250 INCHES NOMINAL |
| DISTANCE BETWEEN CONDUCTOR GROOVE AND MOUNTING HOLE | 0.250 INCHES MINIMUM |
| FIRST DISTANCE FROM CONDUCTOR SLOT TO OPPOSITE SURFACE | 0.688 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PORCELAIN |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED HOLE |
| NONDEFINITIVE SPEC/STD DATA | 2 CLASS AND 4 SIZE AND III TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | HH-I-435 |
Restrictions/Controls & Freight Information | NSN 5970-00-178-1188
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103660 | ELECTRIC WIRE OR WIRING |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-00-178-1188
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
