Product Details | BUSHING INSULATOR
5970-00-185-0337 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 050599, 23602081, 5970-00-185-0337, 00-185-0337, 5970001850337, 001850337
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 FEB 1971 | 00-185-0337 | 18301 ( INSULATOR, BUSHING ) |
Drawings & Photos | NSN 5970-00-185-0337
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-185-0337
Technical Data | NSN 5970-00-185-0337
| Characteristic | Specifications |
|---|---|

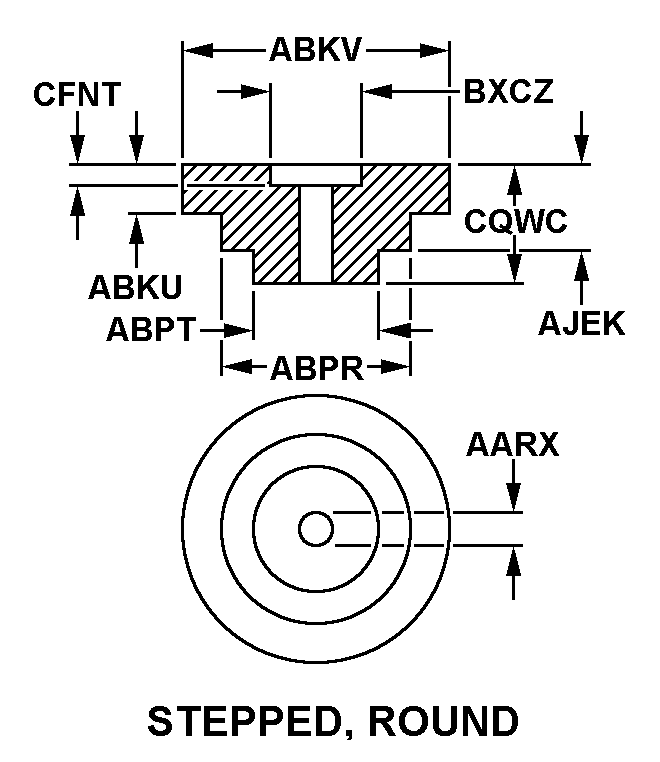

| STYLE DESIGNATOR | C73 STEPPED, ROUND |
| INSIDE DIAMETER | 0.812 INCHES NOMINAL |
| FLANGE THICKNESS | 0.031 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.968 INCHES NOMINAL |
| FIRST STEP DIAMETER | 1.620 INCHES MINIMUM AND 1.627 INCHES MAXIMUM |
| SECOND STEP DIAMETER | 0.865 INCHES MINIMUM AND 0.872 INCHES MAXIMUM |
| FIRST STEP HEIGHT | 0.180 INCHES NOMINAL |
| FIRST COUNTERBORE DIAMETER | 1.249 INCHES MINIMUM AND 1.254 INCHES MAXIMUM |
| FIRST COUNTERBORE DEPTH | 0.094 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| SECOND STEP HEIGHT | 0.375 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, DELRIN 500, E I DUPONT DE NEMOURS AND CO INC |
| SPECIAL FEATURES | 2 0.188 IN. RADIUS CUTOUTS 136.0 DEG APART ON OD |
| MANUFACTURERS CODE | 40608 |
| DESIGN CONTROL REFERENCE | 050599 |
