NSN 5970-00-280-4944 NS3B5016, JANI8TYPENS3B5016, 00-280-4944
Product Details | STRAIN INSULATOR
5970-00-280-4944 An insulator specifically designed to transmit to the tower, or other support, the entire pull of a conductor or guy wire.
Part Alternates: NS3B5016, JANI8TYPENS3B5016, 5970-00-280-4944, 00-280-4944, 5970002804944, 002804944
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-280-4944 | 00226 ( INSULATOR, STRAIN ) |

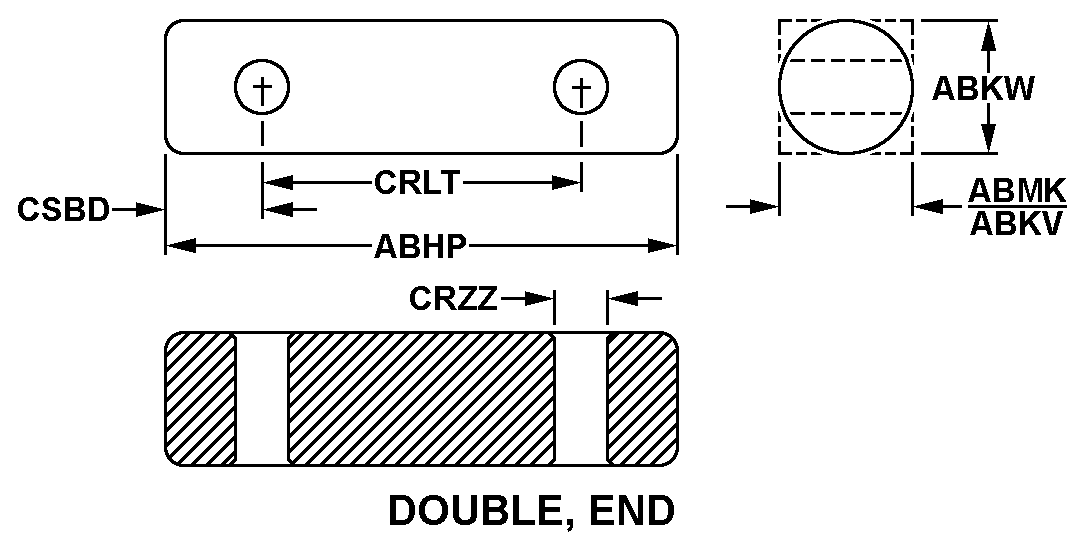

Drawings & Photos | NSN 5970-00-280-4944
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-280-4944
Technical Data | NSN 5970-00-280-4944
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | N1 DOUBLE, END |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| CONDUCTOR SEPARATION DISTANCE | 2.000 INCHES NOMINAL |
| WIRE HOLE DIAMETER | 0.125 INCHES NOMINAL |
| FIRST DISTANCE FROM CONDUCTOR HOLE TO INSULATOR END | 0.375 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL INSULATION, ELECTRICAL, JAN-I-10, GRADE L-3A |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | BROWN |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | NS3B5016 |
