NSN 5970-00-280-8755 CRLX505, 507-5747-00, 101006
Product Details | BOWL INSULATOR
5970-00-280-8755 An insulator used for wire entering or feedthru purposes. May include mounting and/or conducting hardware. Includes replacement bowls for feedthru insulators. Characterized by one or more bowl or bell shaped insulator surfaces.
Part Alternates: CRLX505, 507-5747-00, 101006, 10-1006, 5970-00-280-8755, 00-280-8755, 5970002808755, 002808755, 507574700
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-280-8755 | 18300 ( INSULATOR, BOWL ) |
Drawings & Photos | NSN 5970-00-280-8755
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-280-8755
Technical Data | NSN 5970-00-280-8755
| Characteristic | Specifications |
|---|---|

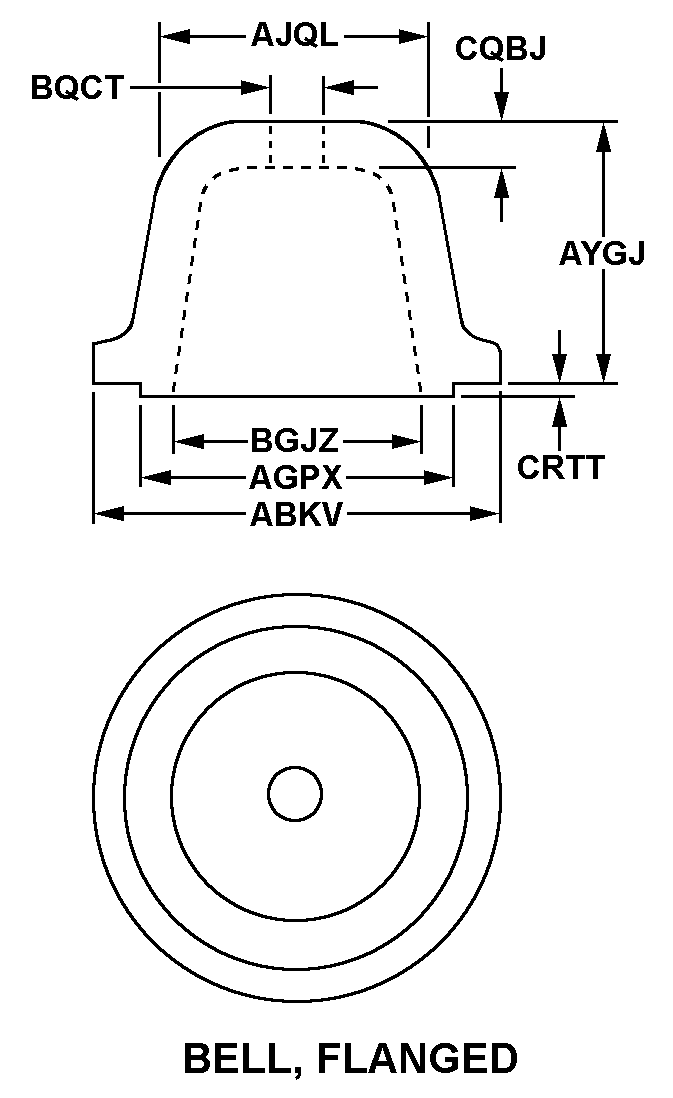

| STYLE DESIGNATOR | B7 BELL, FLANGED |
| OUTSIDE DIAMETER | 3.125 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 0.625 INCHES NOMINAL |
| TOP HOLE DIAMETER | 0.171 INCHES NOMINAL |
| MATERIAL AND LOCATION | MOUNTING BASE CERAMIC OVERALL CERAMIC |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
