Product Details | BUSHING INSULATOR
5970-00-301-3781 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 5057533002, 505-7533-002, 5970-00-301-3781, 00-301-3781, 5970003013781, 003013781
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-301-3781 | 18301 ( INSULATOR, BUSHING ) |

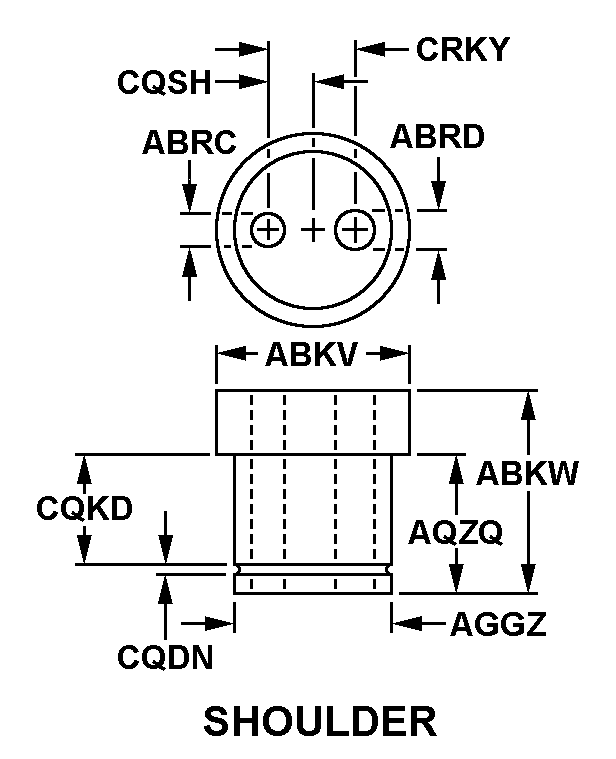

Drawings & Photos | NSN 5970-00-301-3781
