NSN 5970-00-351-6123 SCB72645, SC-B-72645, 6146
Product Details | BUSHING INSULATOR
5970-00-351-6123 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: SCB72645, SC-B-72645, 6146, 5970-00-351-6123, 00-351-6123, 5970003516123, 003516123
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-351-6123 | 18301 ( INSULATOR, BUSHING ) |
Drawings & Photos | NSN 5970-00-351-6123
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-351-6123
Technical Data | NSN 5970-00-351-6123
| Characteristic | Specifications |
|---|---|

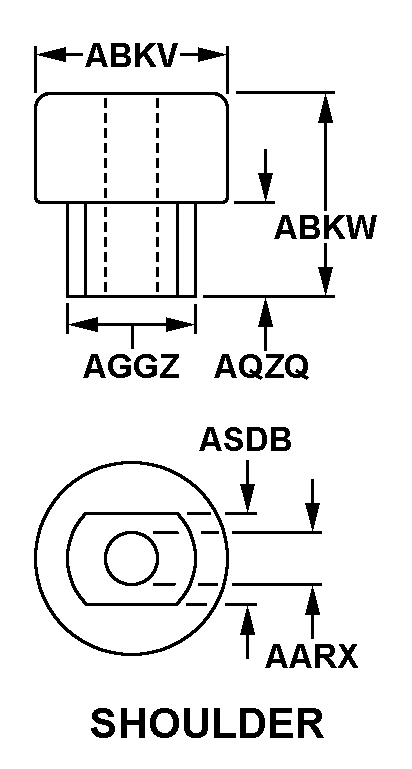

| STYLE DESIGNATOR | C57 SHOULDER |
| INSIDE DIAMETER | 0.171 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.562 INCHES NOMINAL |
| OVERALL HEIGHT | 0.172 INCHES NOMINAL |
| SHANK OUTSIDE DIAMETER | 0.344 INCHES NOMINAL |
| SHANK HEIGHT | 0.047 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.300 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, PHENOLIC, L-P-513, TYPE PBE |
| IDENTIFICATION CODE COLOR | BLACK |
Restrictions/Controls & Freight Information | NSN 5970-00-351-6123
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
