NSN 5970-00-356-0551 SCA7099ITEM2, 00-356-0551, 003560551
Product Details | SPREADER INSULATOR
5970-00-356-0551 An insulator which is specifically designed to separate or hold apart free swinging electrical conductors.
Part Alternates: SCA7099ITEM2, 5970-00-356-0551, 00-356-0551, 5970003560551, 003560551
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-356-0551 | 18290 ( INSULATOR, SPREADER ) |

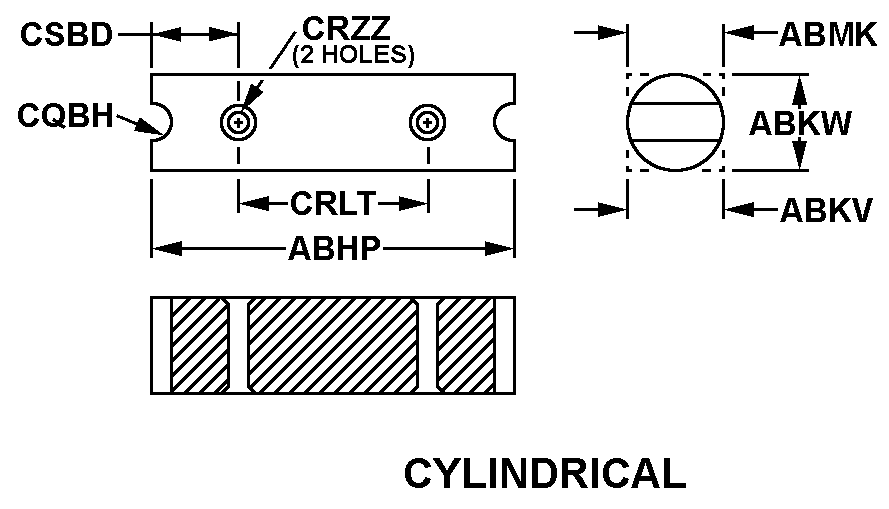

Drawings & Photos | NSN 5970-00-356-0551
Cross Reference | NSN 5970-00-356-0551
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SCA7099ITEM2 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-356-0551
Technical Data | NSN 5970-00-356-0551
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | L1 CYLINDRICAL |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| WIRE HOLE DIAMETER | 0.250 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL INSULATION, ELECTRICAL, JAN-I-10, GRADE L-4A |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| MANUFACTURERS CODE | 80063 |
| DESIGN CONTROL REFERENCE | SCA7099ITEM2 |
Restrictions/Controls & Freight Information | NSN 5970-00-356-0551
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
