NSN 5970-00-426-1583 MS3373A1, MS3373-A1, 00-426-1583
Product Details | WASHER INSULATOR
5970-00-426-1583 An insulator that is essentially thin and flat, with one through hole centrally located. The general shape may vary by the addition of features such as beveled edges, indented surfaces, through hole keys, and/or peripheral flats. The thickness measured between the two parallel bearing surfaces must not exceed 25 percent of the outside diameter or the shortest distance between peripheral flats. The thickness measured between the two parallel bearing surfaces must not exceed 25 percent of the outside diameter or the shortest distance between peripheral flats. Excludes items with more than one hole. See also INSULATOR, DISK; INSULATOR, BEAD; INSULATOR, BUSHING; and INSULATOR, PLATE
Part Alternates: MS3373A1, MS3373-A1, 5970-00-426-1583, 00-426-1583, 5970004261583, 004261583
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 APR 1971 | 00-426-1583 | 18294 ( INSULATOR, WASHER ) |

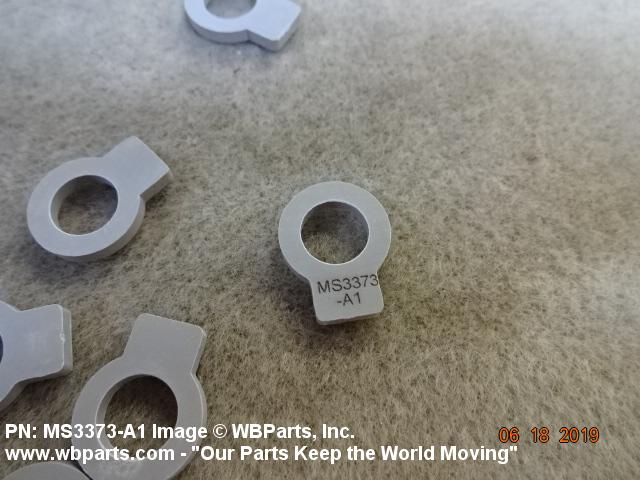

Drawings & Photos | NSN 5970-00-426-1583
Demand History | NSN 5970-00-426-1583
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS3373-A1 | 2019-02-42 | 6 | Lebanon |
| 5970-00-426-1583 | 2017-07-186 | 5992 | DIBBS |
| 5970-00-426-1583 | 2017-01-17 | 1042 | DIBBS |
| 5970-00-426-1583 | 2016-03-77 | 472 | DIBBS |
| 5970-00-426-1583 | 2015-06-155 | 1220 | DIBBS |
| 5970-00-426-1583 | 2015-01-22 | 1277 | DIBBS |
| 5970-00-426-1583 | 2011-02-54 | 7435 | DIBBS |
| 5970-00-426-1583 | 2010-12-349 | 7435 | DIBBS |
| 5970-00-426-1583 | 2008-12-358 | 297 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-426-1583
Technical Data | NSN 5970-00-426-1583
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | Q1 ROUND, FLAT |

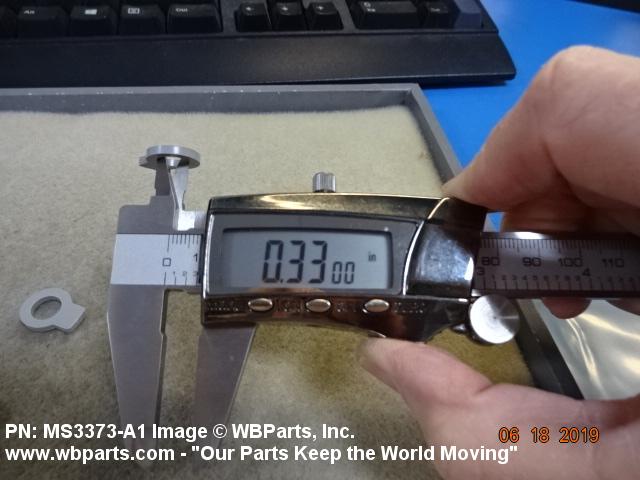

| INSIDE DIAMETER | 0.329 INCHES MINIMUM AND 0.339 INCHES MAXIMUM |

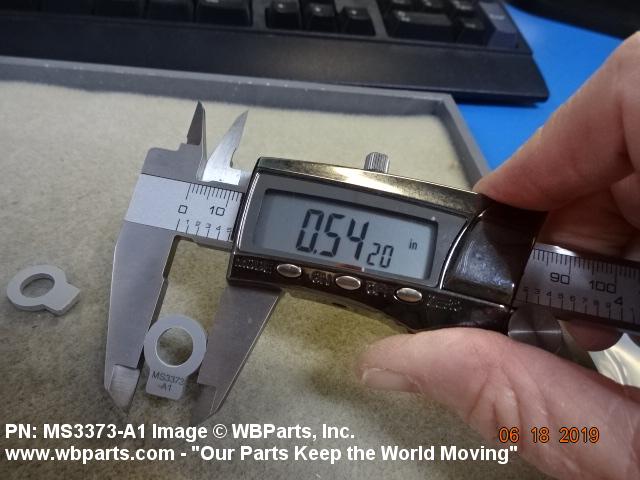

| OUTSIDE DIAMETER | 0.530 INCHES MINIMUM AND 0.550 INCHES MAXIMUM |

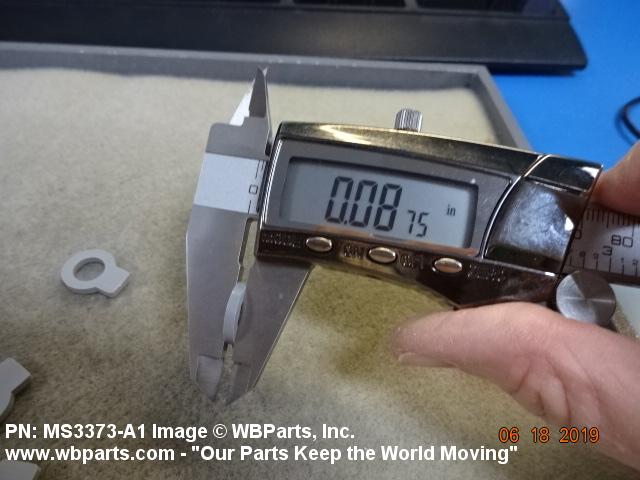

| OVERALL HEIGHT | 0.084 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| MATERIAL AND LOCATION | OVERALL PLASTIC,DIALLYL PHTHALATE,MIL-P-19833,TYPE GDI-30F |
| SPECIAL FEATURES | TAB INCLUDED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS3373-A1 |
Restrictions/Controls & Freight Information | NSN 5970-00-426-1583
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
