NSN 5970-00-489-2716 C207020N, C2070-20N, C2070L
Product Details | ELECTRICAL INSULATION SLEEVING
5970-00-489-2716 A rigid or flexible tubing having uniform inside and outside diameters in the overall length. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. Includes shrinkable type tubing, items in bulk and in specific fabricated lengths (cut to size). Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; CONDUIT (as modified); INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE; INSULATION SLEEVING, THERMAL; SLEEVE, MARKER, CABLE; SLEEVING, TEXTILE, ELECTRICAL; TUBING, GLASS; and TUBING, NONMETALLIC.
Part Alternates: C207020N, C2070-20N, C2070L, RT1381X, RT138-1X, 5970-00-489-2716, 00-489-2716, 5970004892716, 004892716
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 MAY 1970 | 00-489-2716 | 00867 ( INSULATION SLEEVING, ELECTRICAL ) |

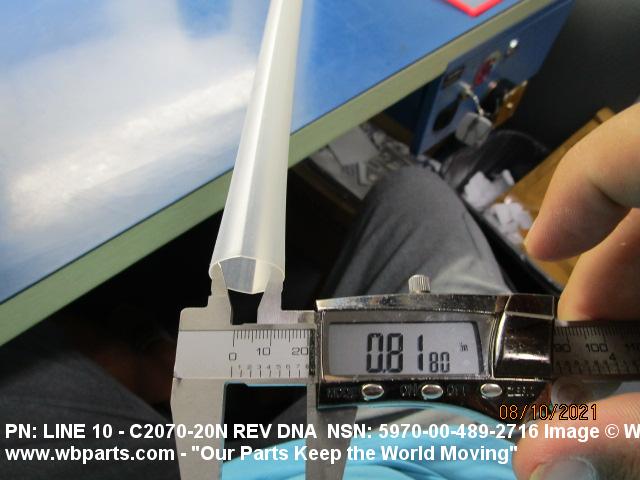

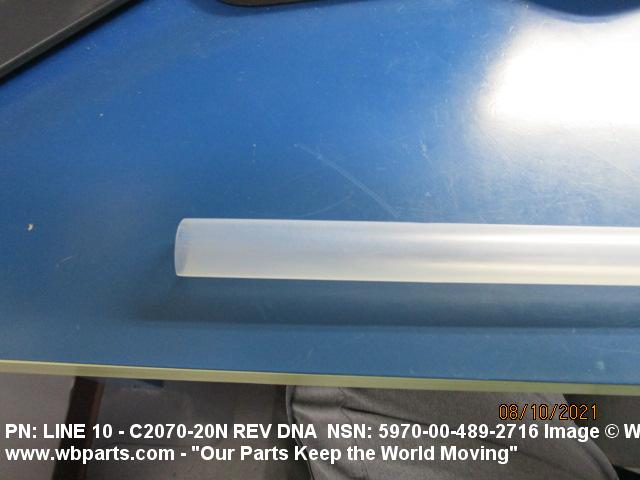

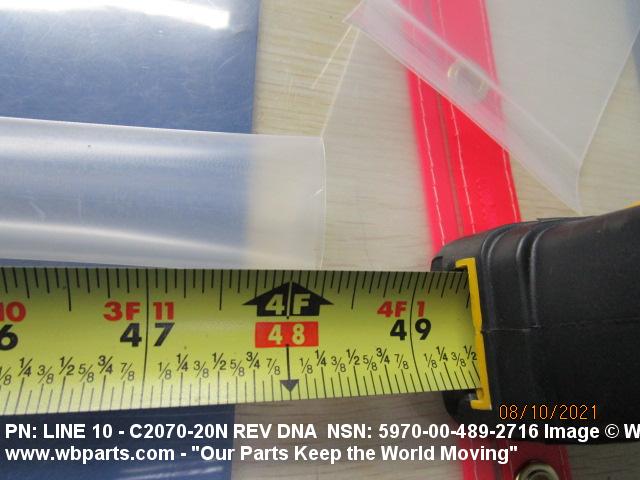

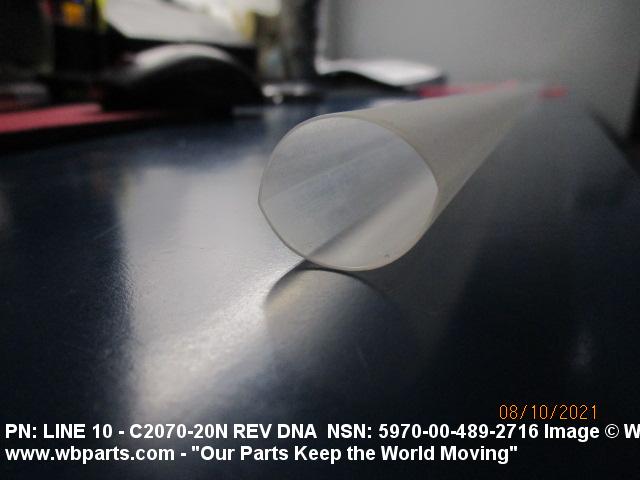

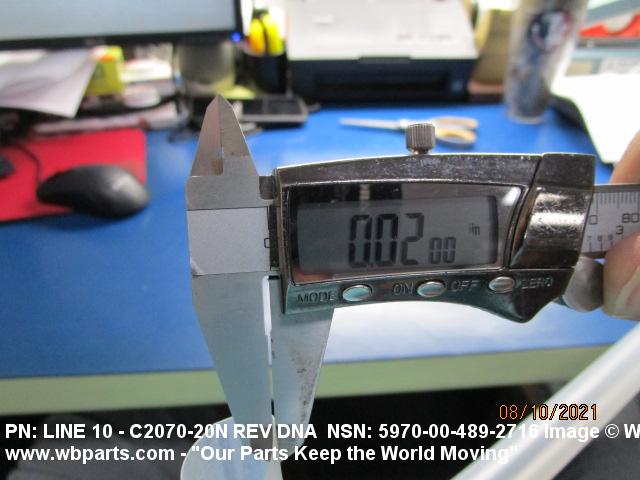

Drawings & Photos | NSN 5970-00-489-2716
Demand History | NSN 5970-00-489-2716
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| C207020N | 2024-10-296 | 3 | United States |
| 5970-00-489-2716 | 2023-02-53 | 30 | United Kingdom |
| 5970-00-489-2716 | 2023-02-38 | 30 | US |
| 5970-00-489-2716 | 2022-05-129 | 100 | United States |
| 5970-00-489-2716 | 2021-08-222 | 1000 | us |
| 5970-00-489-2716 | 2021-08-214 | 25 | us |
| 5970-00-489-2716 | 2021-07-210 | 10 | United States |
| 5970-00-489-2716 | 2020-03-71 | 160 | DIBBS |
| 5970-00-489-2716 | 2020-03-71 | 160 | DIBBS |
| 5970-00-489-2716 | 2020-03-63 | 160 | DIBBS |
| 5970-00-489-2716 | 2020-03-63 | 160 | DIBBS |
| 5970-00-489-2716 | 2019-06-176 | 160 | DIBBS |
| 5970-00-489-2716 | 2019-06-168 | 160 | DIBBS |
| C207020N | 2018-12-354 | 1 | United States |
| 5970-00-489-2716 | 2018-12-338 | 23 | DIBBS |
| RT1381X | 2017-05-124 | 5 | United States |
| 5970-00-489-2716 | 2017-02-53 | 14 | DIBBS |
| 5970-00-489-2716 | 2016-11-327 | 7 | DIBBS |
| 5970-00-489-2716 | 2014-01-16 | 50 | DIBBS |
| 5970-00-489-2716 | 2014-01-08 | 50 | DIBBS |
| 5970-00-489-2716 | 2013-01-24 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-489-2716
Technical Data | NSN 5970-00-489-2716
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 SHRINKABLE |
| OVERALL LENGTH | 4.000 FEET NOMINAL |
| EXPANDED INSIDE DIAMETER | 0.800 INCHES MINIMUM |
| RECOVERED INSIDE DIAMETER | 0.200 INCHES MAXIMUM |
| RECOVERED WALL THICKNESS | 0.040 INCHES NOMINAL |
| MATERIAL | PLASTIC, POLYVINYLIDENE FLUORIDE |
| COLOR | NATURAL |
| FLEXIBILITY | SEMIRIGID |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 347.0 DEG FAHRENHEIT |
| MINIMUM TENSILE STRENGTH | 4000 POUNDS PER SQUARE INCH |
| ENVIRONMENTAL PROTECTION | WATER RESISTANT |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5970-00-489-2716
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-00-489-2716
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
T LG : Length |
