NSN 5970-00-552-9568 M7444124C, M7444-1-2-4C, ASTRA 701

Product Details | ELECTRICAL INSULATION SLEEVING

5970-00-552-9568 A rigid or flexible tubing having uniform inside and outside diameters in the overall length. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. Includes shrinkable type tubing, items in bulk and in specific fabricated lengths (cut to size). Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; CONDUIT (as modified); INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE; INSULATION SLEEVING, THERMAL; SLEEVE, MARKER, CABLE; SLEEVING, TEXTILE, ELECTRICAL; TUBING, GLASS; and TUBING, NONMETALLIC.

Part Alternates: M7444124C, M7444-1-2-4C, ASTRA 701, ASTRA701, NATVAR 261, NATVAR261, SYNTHOLVAR, HYFLEX TRANSFLEX, HYFLEXTRANSFLEX, ITCO 919, ITCO919, MILI631, MIL-I-631, MILI631TYFFMUAG, MILI631TYFUAAC, MILI631TYFUA-AC, DF40471340964, DF4047-1340-96-4, FLEXITE STANDARD, FLEXITESTANDARD, GLITEX 120, GLITEX120, GMS513208, GMS5-13-20-8, 118A1641P17, 2686572-10, 3002, 438-6404418-96-4, 7956567-50, 8034668149, 8034668-149, 803-6404450 FIN, 7472368117, 7472368-117, 803-6404450-940, 8036404450FIN, 9025904, 5970-00-552-9568, 00-552-9568, 5970005529568, 4386404418964, 8036404450940, 795656750, 005529568, 211036582, 268657210

Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-552-9568	00867 ( INSULATION SLEEVING, ELECTRICAL )

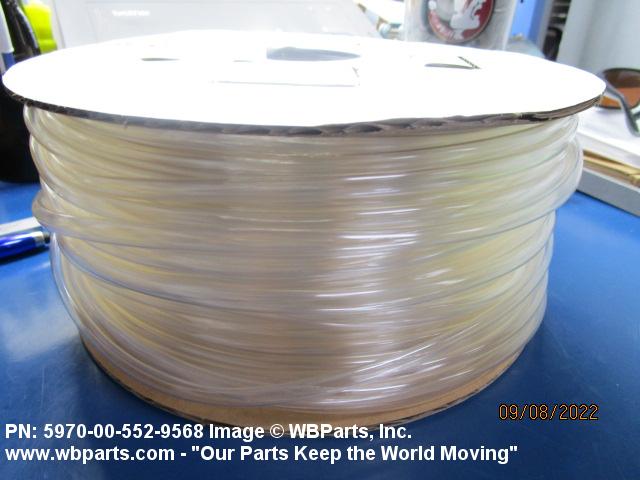

Drawings & Photos | NSN 5970-00-552-9568

Part Number	Request Date	QTY	Origin
MILI631	2025-04-111	100	US
3002	2025-03-80	1	US
5970-00-552-9568	2024-07-206	132	US
5970-00-552-9568	2024-06-164	1000	United States
5970-00-552-9568	2022-08-242	200	United States
NATVAR261	2019-08-241	14	Turkey
5970-00-552-9568	2019-02-56	14000	DIBBS
5970-00-552-9568	2019-01-09	5556	DIBBS
5970-00-552-9568	2018-12-338	5611	DIBBS
MILI631	2018-08-240	1	US
5970-00-552-9568	2018-07-193	6528	DIBBS
5970-00-552-9568	2018-06-171	500	DIBBS
5970-00-552-9568	2017-10-284	5556	DIBBS
MILI631	2017-05-129	1	United States
5970-00-552-9568	2015-07-188	6250	DIBBS
MILI631	2014-06-154	1100	US
MIL-I-631	2014-05-136	2893	US
MILI631	2013-10-275	1	United States
MILI631	2011-08-228	1	US
MILI631	2009-11-321	2	Yemen

Cross Reference | NSN 5970-00-552-9568

Part Number	Cage Code	Manufacturer
118A1641P17	23991	LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION
211036582	53711	NAVAL SEA SYSTEMS COMMAND
2686572-10	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
3002	20999	3M CO ADMININISTRATIVE ELECTRONIC & COMMUNICATIONS
3002	75037	MINNESOTA MINING AND MFG CO 3M COMPANY
438-6404418-96-4	53711	NAVAL SEA SYSTEMS COMMAND
7472368-117	03538	LOCKHEED MARTIN CORPORATION DIV MST
7956567-50	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
803-6404450 FIN	53711	NAVAL SEA SYSTEMS COMMAND
803-6404450-940	53711	NAVAL SEA SYSTEMS COMMAND
8034668-149	18876	U S ARMY AVIATION AND MISSILE COMMAND
9025904	18876	U S ARMY AVIATION AND MISSILE COMMAND
ASTRA 701	91094	ESSEX GROUP INC SUFLEX/IWP DIV
DF4047-1340-96-4	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
FLEXITE STANDARD	03890	MARKEL CORP.
GLITEX 120	05178	NALGE CO DIV OF SYBRON CORP
GMS5-13-20-8	25500	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
HYFLEX TRANSFLEX	20999	3M CO ADMININISTRATIVE ELECTRONIC & COMMUNICATIONS
HYFLEX TRANSFLEX	75037	MINNESOTA MINING AND MFG CO 3M COMPANY
ITCO 919	12509	INSULTAB, INC.
M7444-1-2-4C	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-I-631	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILI631TYFFMUAG	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILI631TYFUA-AC	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NATVAR 261	96904	HIGH VOLTAGE ENGINEERING CORP NATVAR CO DIV
SYNTHOLVAR	79074	VARFLEX CORPORATION DBA ELECTRICAL INSULATING SLEEVING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5970-00-552-9568

Compare

Related Products | NSN 5970-00-552-9568

5970-00-552-9569, 5970-00-552-9570, 5970-00-552-9838, 5970-00-552-9839, 5970-00-552-9840

Technical Data | NSN 5970-00-552-9568

Characteristic	Specifications
STYLE DESIGNATOR	A2 NONSHRINKABLE

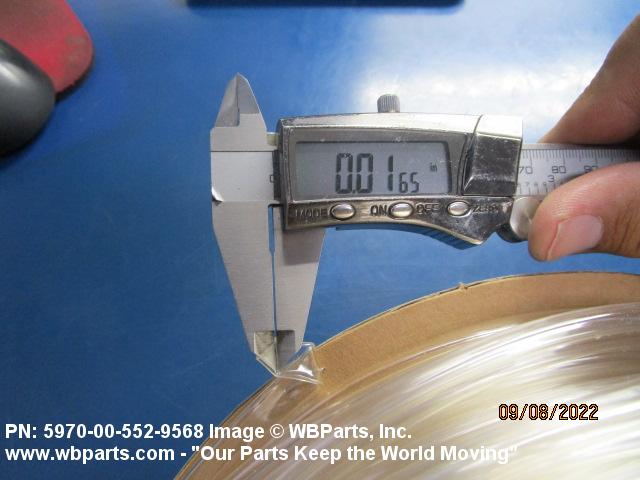

WALL THICKNESS	0.017 INCHES MINIMUM AND 0.023 INCHES MAXIMUM
