NSN 5970-00-617-5308 5381, 00-617-5308, 006175308
Product Details | BUSHING INSULATOR
5970-00-617-5308 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 5381, 5970-00-617-5308, 00-617-5308, 5970006175308, 006175308
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-617-5308 | 18301 ( INSULATOR, BUSHING ) |
Drawings & Photos | NSN 5970-00-617-5308
Cross Reference | NSN 5970-00-617-5308
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5381 | 74545 | HUBBELL INC WIRING DEVICE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-617-5308
Technical Data | NSN 5970-00-617-5308
| Characteristic | Specifications |
|---|---|

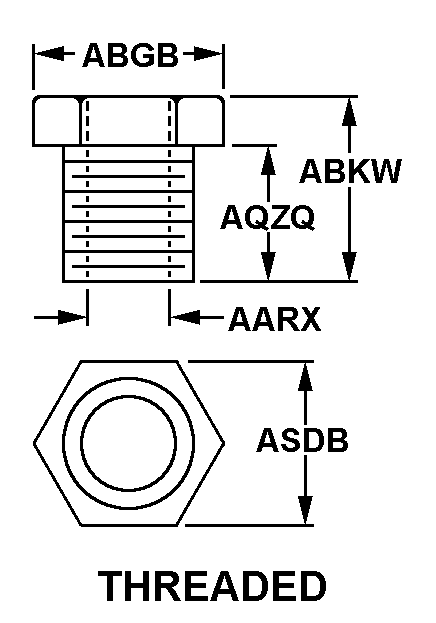

| STYLE DESIGNATOR | C66 THREADED |
| INSIDE DIAMETER | 0.375 INCHES NOMINAL |
| WIDTH ACROSS CORNERS | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.312 INCHES NOMINAL |
| SHANK HEIGHT | 0.250 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, PHENOLIC, MIL-P-79, TYPE PBE |
| IDENTIFICATION CODE COLOR | BLACK |
| SCREW THREAD DIAMETER AND LOCATION | 0.625 SHANK INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5970-00-617-5308
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
