Product Details | BOWL INSULATOR
5970-00-814-8191 An insulator used for wire entering or feedthru purposes. May include mounting and/or conducting hardware. Includes replacement bowls for feedthru insulators. Characterized by one or more bowl or bell shaped insulator surfaces.
Part Alternates: 56377, 8148191, 814-8191, 5970-00-814-8191, 00-814-8191, 5970008148191, 008148191
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-814-8191 | 18300 ( INSULATOR, BOWL ) |

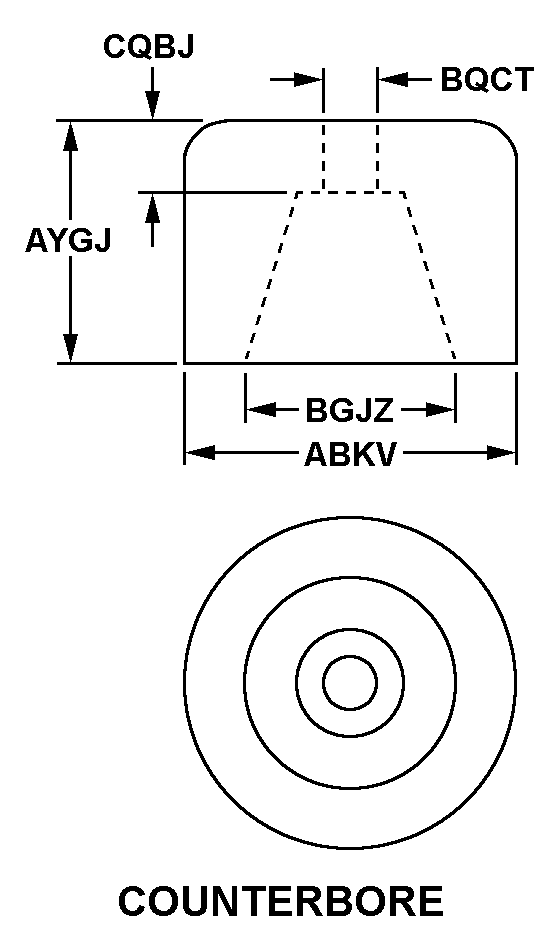

Drawings & Photos | NSN 5970-00-814-8191
Demand History | NSN 5970-00-814-8191
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-00-814-8191 | 2016-12-354 | 148 | DIBBS |
| 5970-00-814-8191 | 2016-11-321 | 148 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-814-8191
Related Products | NSN 5970-00-814-8191
Technical Data | NSN 5970-00-814-8191
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 COUNTERBORE |
| OUTSIDE DIAMETER | 0.481 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 0.198 INCHES NOMINAL |
| BASE INSIDE DIAMETER | 0.437 INCHES NOMINAL |
| TOP HOLE DIAMETER | 0.156 INCHES NOMINAL |
| TOP THICKNESS | 0.094 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, POLYTETRAFLUOROETHYLENE |
| MANUFACTURERS CODE | 24930 |
| DESIGN CONTROL REFERENCE | 56377 |
