NSN 5970-00-817-6175 C9091035, C909-1035, HHI435

5970-00-817-6175 An insulator specifically designed to transmit to the tower, or other support, the entire pull of a conductor or guy wire.

Part Alternates: C9091035, C909-1035, HHI435, HH-I-435, 0613, 2014, 36140, 535, 53-5, 5970-00-817-6175, 00-817-6175, 5970008176175, 008176175

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-817-6175	00226 ( INSULATOR, STRAIN )

Part Number	Request Date	QTY	Origin	SBA
2014	2025-07-204	1	United States
2014	2012-09-254	100	Germany

Part Number	Cage Code	Manufacturer
0613	75638	NGK-LOCKE INC.
2014	30086	SPD ELECTRICAL SYSTEMS, INC
36140	79911	OHIO BRASS CO
53-5	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
C909-1035	73569	LA CHANCE LTD
HH-I-435	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5970-00-817-6175

Compare

5970-00-817-6392, 5970-00-817-6488, 5970-00-817-7069, 5970-00-817-7070, 5970-00-817-7071

Characteristic	Specifications

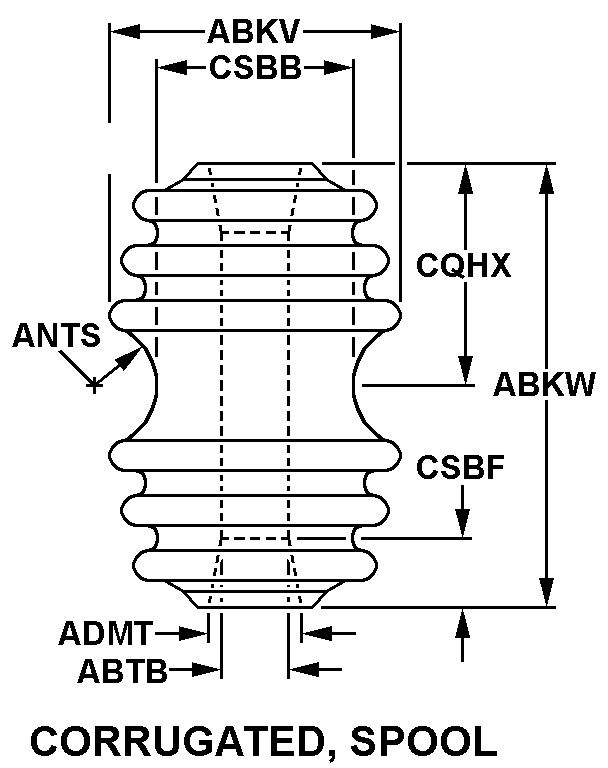

STYLE DESIGNATOR	N26 CORRUGATED, SPOOL
OUTSIDE DIAMETER	4.000 INCHES NOMINAL
OVERALL HEIGHT	4.125 INCHES NOMINAL
MOUNTING HOLE DIAMETER	0.688 INCHES NOMINAL
TAPERED HOLE MAJOR DIAMETER	0.938 INCHES NOMINAL
RADIAL GROOVE RADIUS	0.438 INCHES NOMINAL
FIRST CENTER DISTANCE	2.062 INCHES NOMINAL
RADIAL GROOVE DIAMETER	2.750 INCHES NOMINAL
TAPERED HOLE DEPTH	1.000 INCHES NOMINAL
MATERIAL AND LOCATION	OVERALL PORCELAIN
IDENTIFICATION CODE COLOR	GRAY
MOUNTING FACILITY TYPE AND QUANTITY	1 UNTHREADED HOLE
NONDEFINITIVE SPEC/STD DATA	2 CLASS AND I TYPE
DEPARTURE FROM CITED DESIGNATOR	AS MODIFIED BY COLOR
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	HH-I-435

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	103780	INSULATORS STRAIN NOI
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
