NSN 5970-00-852-7485 223, 00-852-7485, 008527485
Product Details | PIN INSULATOR
5970-00-852-7485 An insulator which is grooved for guiding purposes and which is specifically designed to be mounted on a crossarm pin or bracket pin.
Part Alternates: 223, 5970-00-852-7485, 00-852-7485, 5970008527485, 008527485
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-852-7485 | 18289 ( INSULATOR, PIN ) |
Drawings & Photos | NSN 5970-00-852-7485
Demand History | NSN 5970-00-852-7485
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 223 | 2025-04-112 | 115 | United States |
| 223 | 2025-04-94 | 40 | United States |
| 223 | 2025-02-42 | 44 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-852-7485
Technical Data | NSN 5970-00-852-7485
| Characteristic | Specifications |
|---|---|

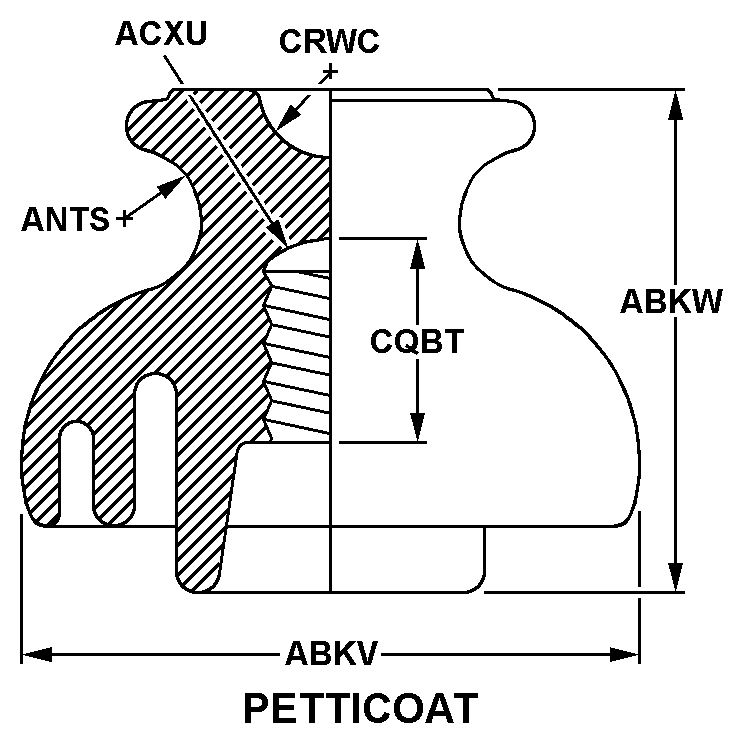

| STYLE DESIGNATOR | H2 PETTICOAT |
| OUTSIDE DIAMETER | 3.750 INCHES NOMINAL |
| OVERALL HEIGHT | 3.312 INCHES NOMINAL |
| PINHOLE DIAMETER | 1.000 INCHES NOMINAL |
| RADIAL GROOVE RADIUS | 0.437 INCHES NOMINAL |
| PIN HOLE DEPTH | 1.500 INCHES NOMINAL |
| TOP WIRE GROOVE RADIUS | 0.625 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PORCELAIN |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED HOLE |
| CONDUCTOR MECHANICAL ACCOMMODATION QUANTITY | 1 |
| MANUFACTURERS CODE | 83786 |
| DESIGN CONTROL REFERENCE | 223 |
Restrictions/Controls & Freight Information | NSN 5970-00-852-7485
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
