NSN 5970-00-879-4480 6069, 00-879-4480, 008794480
Product Details | PINCAP INSULATOR
5970-00-879-4480 An insulator having an integral provision for rigidly assembling one upon the other for the purpose of extending its insulating range.
Part Alternates: 6069, 5970-00-879-4480, 00-879-4480, 5970008794480, 008794480
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-879-4480 | 00224 ( INSULATOR, PINCAP ) |
Drawings & Photos | NSN 5970-00-879-4480
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-879-4480
Technical Data | NSN 5970-00-879-4480
| Characteristic | Specifications |
|---|---|

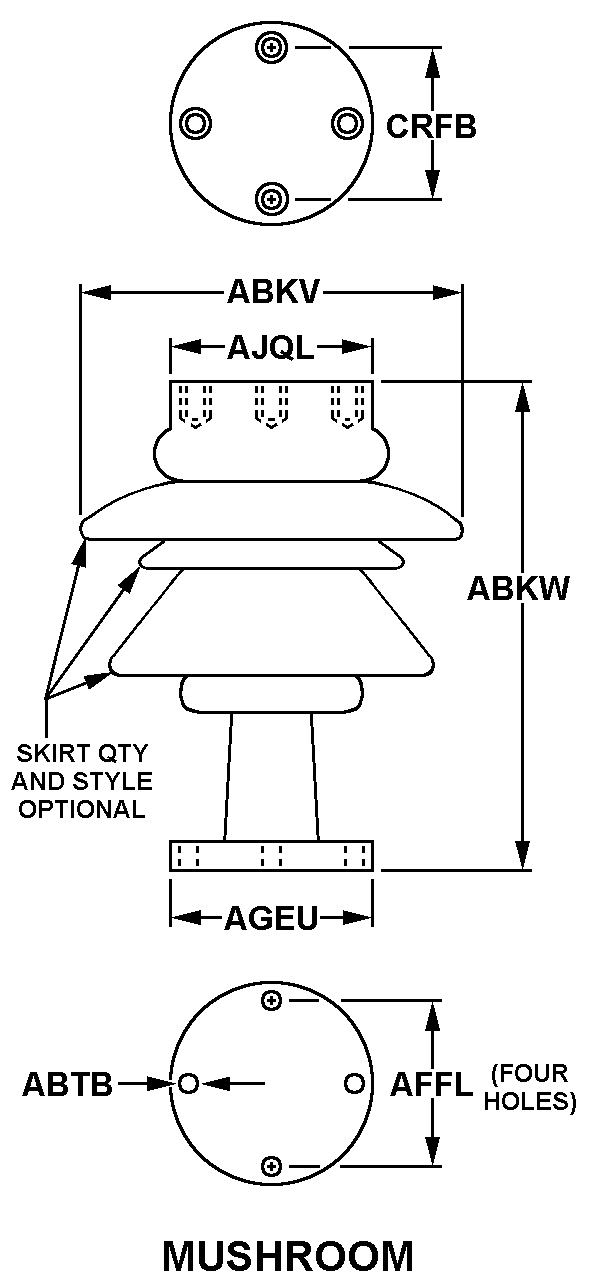

| STYLE DESIGNATOR | J1 MUSHROOM |
| OUTSIDE DIAMETER | 14.000 INCHES NOMINAL |
| OVERALL HEIGHT | 29.000 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.562 INCHES NOMINAL |
| MOUNTING BOLT CIRCLE DIAMETER | 3.000 INCHES NOMINAL |
| BASE DIAMETER | 4.250 INCHES NOMINAL |
| TOP DIAMETER | 4.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN DOME HOLES | 3.000 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PORCELAIN |
| SURFACE TREATMENT AND LOCATION | MOUNTING BASE ANY ACCEPTABLE OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | BROWN |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | ELECTRICAL TERMINATION UNC |
| SCREW THREAD DIAMETER AND LOCATION | 0.500 ELECTRICAL TERMINATION INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 13 ELECTRICAL TERMINATION |
| THREAD CLASS AND LOCATION | 2A ELECTRICAL TERMINATION |
| MANUFACTURERS CODE | 83786 |
| DESIGN CONTROL REFERENCE | 6069 |
Restrictions/Controls & Freight Information | NSN 5970-00-879-4480
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
